Heating Equipment

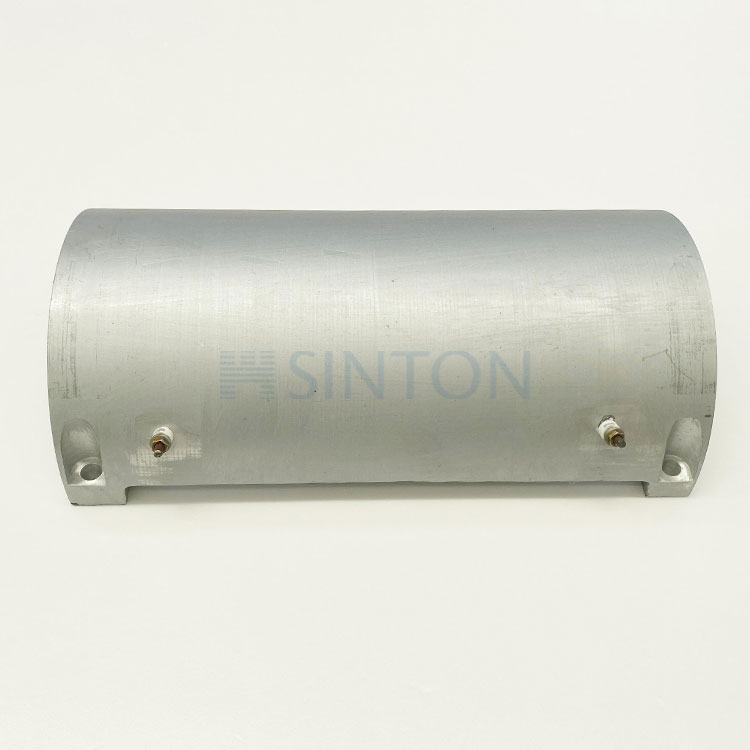

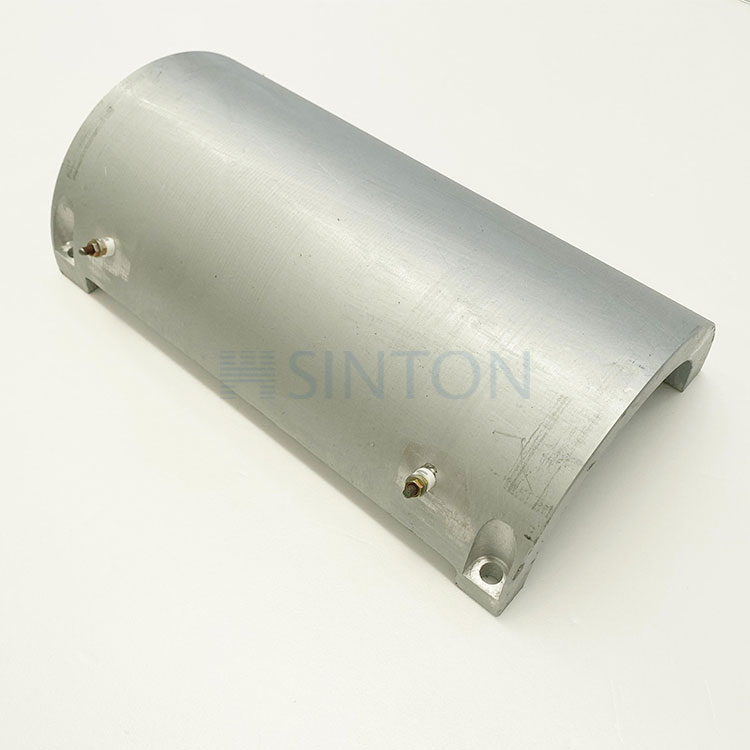

Cast band heaters are manufactured from aluminum alloy due to its excellent thermal conductivity. For applications requiring higher operating temperatures and/or greater watt density, bronze or brass alloys may be utilized.
Cast band heaters can employ one of two cooling methods: liquid cooling or air cooling. Widely used in plastic extrusion processes, the integrated cooling capability in our cast band heaters plays a critical role in maintaining proper barrel temperature.
The precision machining of the band heater's inner diameter ensures optimal heat transfer between the heater and the barrel, with customization available to meet specific customer requirements.
Features & Benefits:
The strongest band
Can withstand almost any type of abuse without failing
Can it withstand almost any type of pollution
Aluminum, brass or bronze construction
Can it be produced in an almost endless variety of shapes and sizes

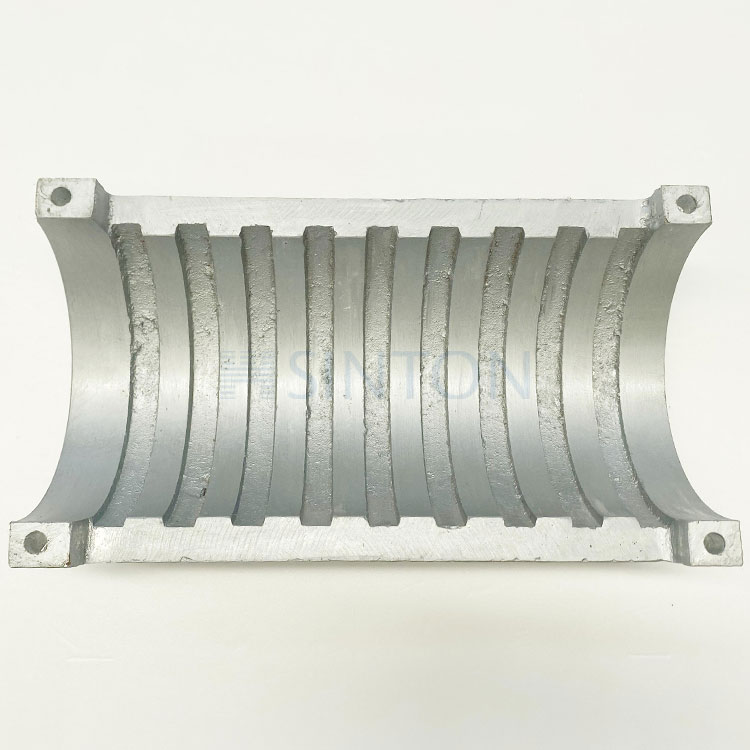

Air cooled fin type
Liquid cooling
Applications:
Castings can be used to heat molds, extruders, chemical valves and pipes, and can also be used to heat and cool oil.
Plastic. The best choice for processing engineering grade resins
Heating duct
Chemical treatment
Drum heating
semiconductor
Food process
Package
Product Parameter
| Type | AREA | Size (mm) | Voltage (V) | Power (W) | Technology |
| XT-FQTC-Φ250X255 | 1 area | Φ250X255 | 3X400 | 8000 | 1.The use en Vironment temperature -20 degree C to 60 degree 2.Leakage current less than 0.5mA 3.Insulation resistance more than 5M 4.withstand voltage: 1500V 5.wattage tolerance +5%-10% |
| XT-FQTC-Φ200X220 | 2 area | Φ200X220 | 230 | 4100 | |
| XT-FQTC-Φ200X175 | 3 area | Φ200X175 | 230 | 2400 | |
| XT-FQTC-Φ152/Φ140X310 | 4 area | Φ152/Φ140X310 | 230 | 3600 | |
| XT-FQTC-Φ305X295 | 1 area | Φ305X295 | 3X400 | 1000 | |
| XT-FQTC-Φ245X260 | 2 area | Φ245X260 | 230 | 4130 | |
| XT-FQTC-Φ245X215 | 3 area | Φ245X215 | 230 | 3540 | |
| XT-FQTC-Φ165/Φ185X365 | 4 area | Φ165/Φ185X365 | 230 | 4600 | |
| XT-FQTC-Φ217X190 | 1 area | Φ217X190 | 230 | 4000 | |
| XT-FQTC-Φ170X380 | 2 area | Φ170X380 | 230 | 5200 | |
| XT-FQTC-Φ123X220 | 3 area | Φ123X220 | 230 | 2600 | |
| XT-FQTC-Φ375X345 | 1 area | Φ375X345 | 3X400 | 16000 | |
| XT-FQTC-Φ295X315 | 2 area | Φ295X315 | 230 | 6350 | |
| XT-FQTC-Φ295X255 | 3 area | Φ295X255 | 230 | 4940 | |
| XT-FQTC-Φ215/Φ195X430 | 4 area | Φ215/Φ195X430 | 230 | 5930 | |
| XT-FQTC-Φ350X360 | 1 area | Φ350X360 | 3X400 | 18000 | |
| XT-FQTC-Φ350X120 | 2 area | Φ350X120 | 3X400 | 6500 | |
| XT-FQTC-Φ310X350 | 3 area | Φ310X350 | 3X400 | 8600 | |
| XT-FQTC-Φ280X300 | 4 area | Φ280X300 | 3X400 | 4600 | |
| XT-FQTC-Φ250X290 | 5 area | Φ250X290 | 3X400 | 4200 | |
| XT-FQTC-Φ250/Φ210X510 | 6 area | Φ250/Φ210X510 | 3X400 | 8600 | |
| XT-FQTC-Φ75X162 | Φ75X162 | 230 | 1400 | ||
| XT-FQTC-Φ90X220 | Φ90X220 | 230 | 1500 | ||
| XT-FQTC-Φ130X280 | Φ130X280 | 230 | 2200 | ||
| XT-FQTC-Φ140X325 | Φ140X325 | 230 | 4000 | ||
| XT-FQTC-Φ150X420 | Φ150X420 | 400 | 5000 | ||
| XT-FQTC-Φ175X460 | Φ175X460 | 400 | 7000 | ||
| XT-FQTC-Φ200X550 | Φ200X550 | 400 | 12000 |
Shipment
provides customers with quality and safe transportation.
