Heating Equipment

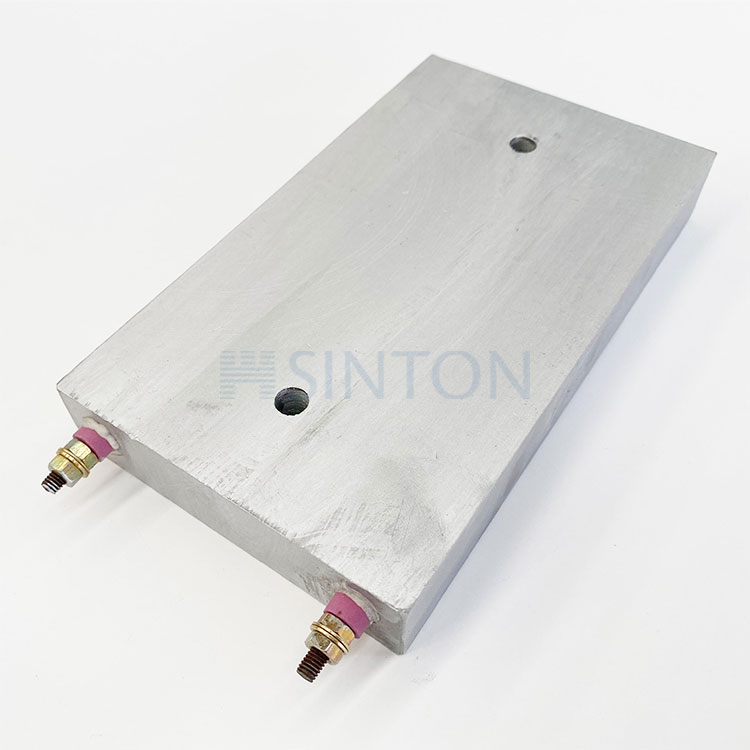

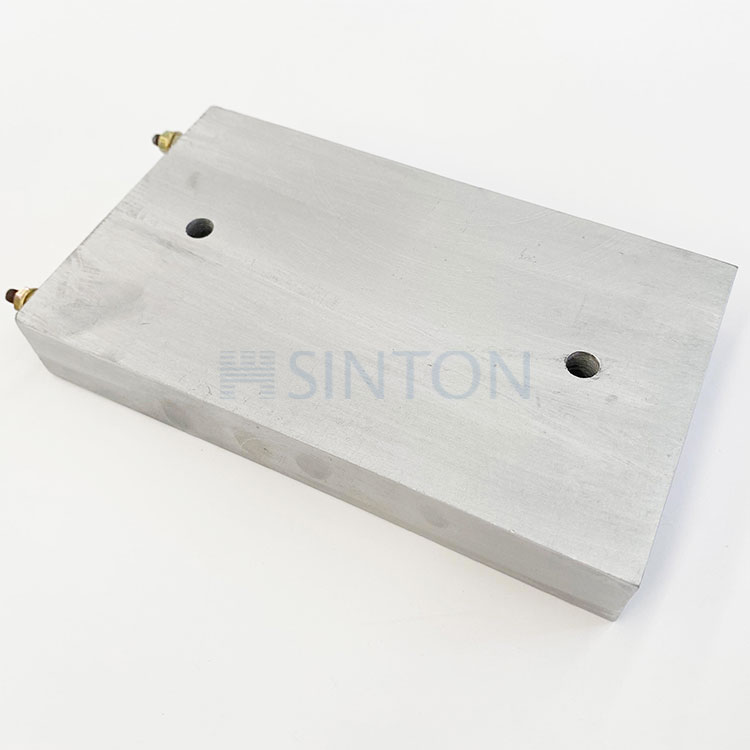

Cast aluminum temperature control heating plate is an industrial heating equipment mainly used for heating metal castings to improve their physical and processing properties. It uses high-quality aluminum alloy materials and is made through precision casting technology, with excellent thermal conductivity and thermal stability. This type of heating plate is compact in design, sturdy in structure, and can withstand high temperature and heavy load working environments. Its surface is specially treated, with good corrosion resistance and wear resistance. The core function of cast aluminum temperature control heating plate is to precisely control the heating temperature to meet the heat treatment requirements of different metal castings. It is equipped with an advanced temperature control system, which can monitor and adjust the temperature of the heating plate in real time, ensuring the uniformity and accuracy of the heating process.
Product Parameter
| Type | AREA | Size (mm) | Voltage (V) | Power (W) | Technology |
| XT-FQTC-Φ250X255 | 1 area | Φ250X255 | 3X400 | 8000 | 1.The use en Vironment temperature -20 degree C to 60 degree 2.Leakage current less than 0.5mA 3.Insulation resistance more than 5M 4.withstand voltage: 1500V 5.wattage tolerance +5%-10% |
| XT-FQTC-Φ200X220 | 2 area | Φ200X220 | 230 | 4100 | |
| XT-FQTC-Φ200X175 | 3 area | Φ200X175 | 230 | 2400 | |
| XT-FQTC-Φ152/Φ140X310 | 4 area | Φ152/Φ140X310 | 230 | 3600 | |
| XT-FQTC-Φ305X295 | 1 area | Φ305X295 | 3X400 | 1000 | |
| XT-FQTC-Φ245X260 | 2 area | Φ245X260 | 230 | 4130 | |
| XT-FQTC-Φ245X215 | 3 area | Φ245X215 | 230 | 3540 | |
| XT-FQTC-Φ165/Φ185X365 | 4 area | Φ165/Φ185X365 | 230 | 4600 | |
| XT-FQTC-Φ217X190 | 1 area | Φ217X190 | 230 | 4000 | |
| XT-FQTC-Φ170X380 | 2 area | Φ170X380 | 230 | 5200 | |
| XT-FQTC-Φ123X220 | 3 area | Φ123X220 | 230 | 2600 | |
| XT-FQTC-Φ375X345 | 1 area | Φ375X345 | 3X400 | 16000 | |
| XT-FQTC-Φ295X315 | 2 area | Φ295X315 | 230 | 6350 | |
| XT-FQTC-Φ295X255 | 3 area | Φ295X255 | 230 | 4940 | |
| XT-FQTC-Φ215/Φ195X430 | 4 area | Φ215/Φ195X430 | 230 | 5930 | |
| XT-FQTC-Φ350X360 | 1 area | Φ350X360 | 3X400 | 18000 | |
| XT-FQTC-Φ350X120 | 2 area | Φ350X120 | 3X400 | 6500 | |
| XT-FQTC-Φ310X350 | 3 area | Φ310X350 | 3X400 | 8600 | |
| XT-FQTC-Φ280X300 | 4 area | Φ280X300 | 3X400 | 4600 | |
| XT-FQTC-Φ250X290 | 5 area | Φ250X290 | 3X400 | 4200 | |
| XT-FQTC-Φ250/Φ210X510 | 6 area | Φ250/Φ210X510 | 3X400 | 8600 | |
| XT-FQTC-Φ75X162 | Φ75X162 | 230 | 1400 | ||
| XT-FQTC-Φ90X220 | Φ90X220 | 230 | 1500 | ||
| XT-FQTC-Φ130X280 | Φ130X280 | 230 | 2200 | ||
| XT-FQTC-Φ140X325 | Φ140X325 | 230 | 4000 | ||
| XT-FQTC-Φ150X420 | Φ150X420 | 400 | 5000 | ||
| XT-FQTC-Φ175X460 | Φ175X460 | 400 | 7000 | ||
| XT-FQTC-Φ200X550 | Φ200X550 | 400 | 12000 |
Shipment
provides customers with quality and safe transportation.
