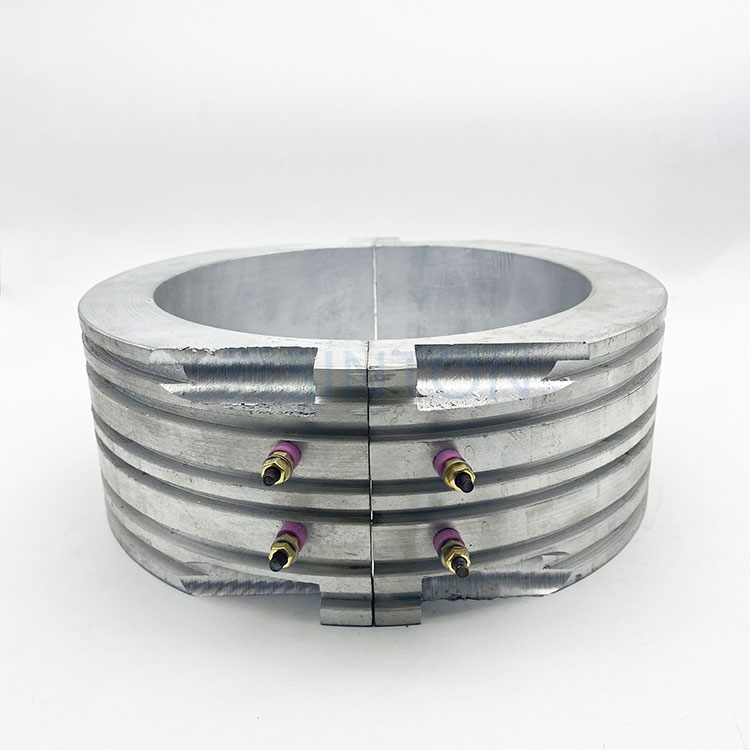

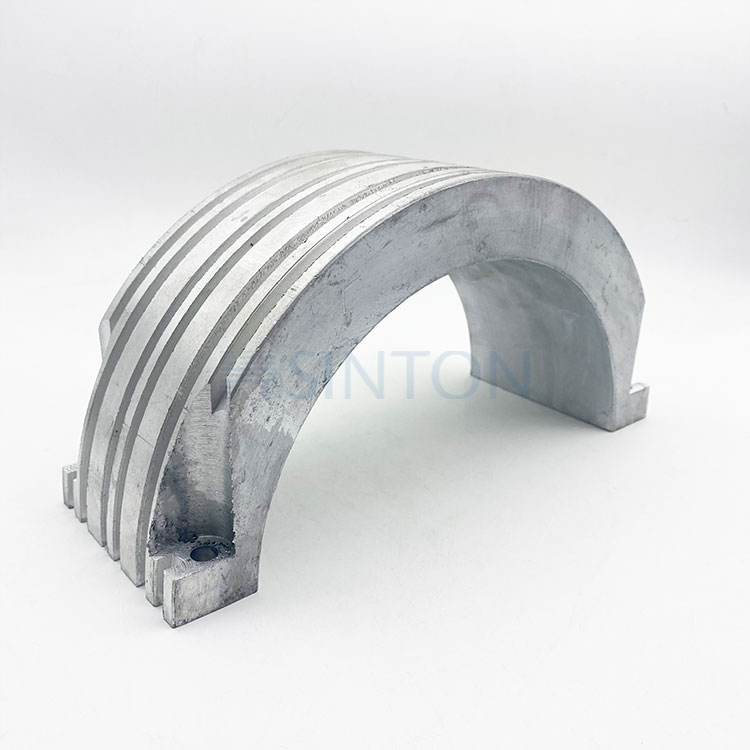

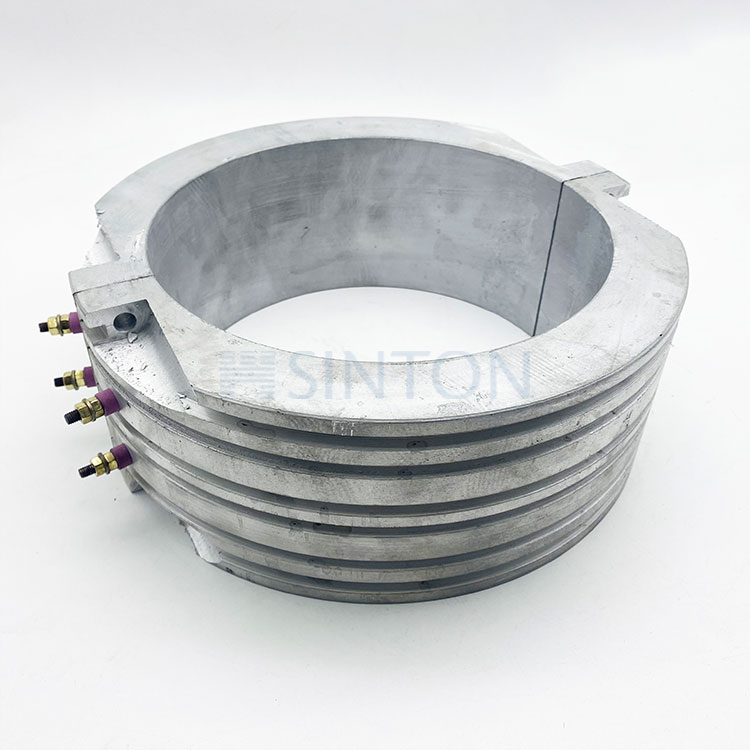

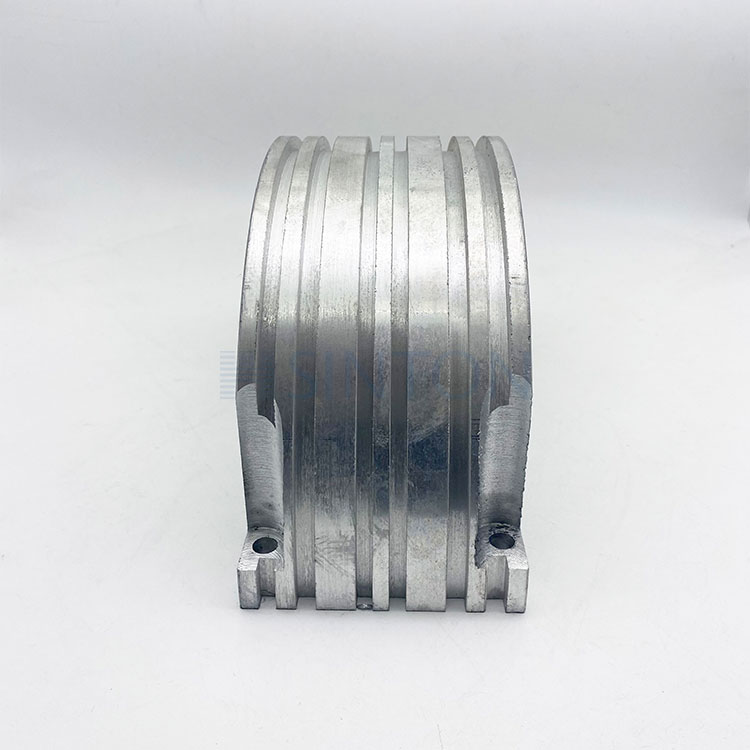

Cast Aluminum Electric Heating Coil

Cast aluminum electric heating coil is an efficient heating device used in industrial processes that require uniform heating and high temperature environments. It is made of nickel chromium alloy electric heating wires and these elements are uniformly embedded in aluminum alloy castings. Aluminum alloy not only serves as a protective shell, but also quickly conducts heat, making the temperature of the entire equipment uniform. By embedding the electric heating elements into aluminum alloy, an integrated heating device is formed. The high thermal conductivity of cast aluminum electric heating coil can quickly transfer and distribute heat, reduce heat loss, and improve overall heating efficiency. It can provide uniform and stable heat at high temperatures and is widely used in plastic machinery, chemical equipment, packaging machinery, mold heating, and food processing industries.

Product Parameter

Type AREA Size (mm) Voltage (V) Power (W) Technology
XT-FQTC-Φ250X255 1 area Φ250X255 3X400 8000 1.The use en Vironment temperature  -20 degree C to 60 degree
2.Leakage current less than 0.5mA
3.Insulation resistance more than 5M
4.withstand voltage: 1500V
5.wattage tolerance +5%-10%
XT-FQTC-Φ200X220 2 area Φ200X220 230 4100
XT-FQTC-Φ200X175 3 area Φ200X175 230 2400
XT-FQTC-Φ152/Φ140X310 4 area Φ152/Φ140X310 230 3600
XT-FQTC-Φ305X295 1 area Φ305X295 3X400 1000
XT-FQTC-Φ245X260 2 area Φ245X260 230 4130
XT-FQTC-Φ245X215 3 area Φ245X215 230 3540
XT-FQTC-Φ165/Φ185X365 4 area Φ165/Φ185X365 230 4600
XT-FQTC-Φ217X190 1 area Φ217X190 230 4000
XT-FQTC-Φ170X380 2 area Φ170X380 230 5200
XT-FQTC-Φ123X220 3 area Φ123X220 230 2600
XT-FQTC-Φ375X345 1 area Φ375X345 3X400 16000
XT-FQTC-Φ295X315 2 area Φ295X315 230 6350
XT-FQTC-Φ295X255 3 area Φ295X255 230 4940
XT-FQTC-Φ215/Φ195X430 4 area Φ215/Φ195X430 230 5930
XT-FQTC-Φ350X360 1 area Φ350X360 3X400 18000
XT-FQTC-Φ350X120 2 area Φ350X120 3X400 6500
XT-FQTC-Φ310X350 3 area Φ310X350 3X400 8600
XT-FQTC-Φ280X300 4 area Φ280X300 3X400 4600
XT-FQTC-Φ250X290 5 area Φ250X290 3X400 4200
XT-FQTC-Φ250/Φ210X510 6 area Φ250/Φ210X510 3X400 8600
XT-FQTC-Φ75X162   Φ75X162 230 1400
XT-FQTC-Φ90X220   Φ90X220 230 1500
XT-FQTC-Φ130X280   Φ130X280 230 2200
XT-FQTC-Φ140X325   Φ140X325 230 4000
XT-FQTC-Φ150X420   Φ150X420 400 5000
XT-FQTC-Φ175X460   Φ175X460 400 7000
XT-FQTC-Φ200X550   Φ200X550 400 12000
