Heating Equipment

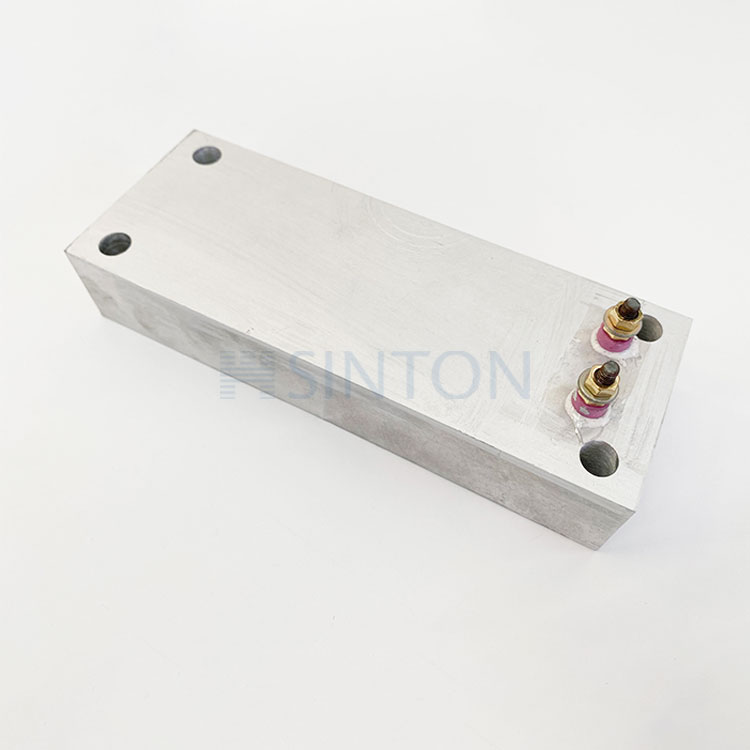

Industrial heating plate is a device used to heat various materials or objects, widely used in industrial production processes. Its main function is to provide a uniform, stable, and controllable heat source, which can meet the needs of different processes. It uses resistance wires or electric heating films as heating elements to generate heat through current. This type of heating plate has the advantages of fast heating and precise temperature control, and is commonly used in laboratories and industrial manufacturing. The industrial heating plate is composed of heating elements, insulation materials, and protective casing, which can efficiently convert electrical energy into thermal energy for industrial processes such as heating, insulation, or drying. It is also equipped with advanced temperature control systems, which can accurately adjust and maintain the required temperature.
Product Parameter
| Type | AREA | Size (mm) | Voltage (V) | Power (W) | Technology |
| XT-FQTC-Φ250X255 | 1 area | Φ250X255 | 3X400 | 8000 | 1.The use en Vironment temperature -20 degree C to 60 degree 2.Leakage current less than 0.5mA 3.Insulation resistance more than 5M 4.withstand voltage: 1500V 5.wattage tolerance +5%-10% |
| XT-FQTC-Φ200X220 | 2 area | Φ200X220 | 230 | 4100 | |
| XT-FQTC-Φ200X175 | 3 area | Φ200X175 | 230 | 2400 | |
| XT-FQTC-Φ152/Φ140X310 | 4 area | Φ152/Φ140X310 | 230 | 3600 | |
| XT-FQTC-Φ305X295 | 1 area | Φ305X295 | 3X400 | 1000 | |
| XT-FQTC-Φ245X260 | 2 area | Φ245X260 | 230 | 4130 | |
| XT-FQTC-Φ245X215 | 3 area | Φ245X215 | 230 | 3540 | |
| XT-FQTC-Φ165/Φ185X365 | 4 area | Φ165/Φ185X365 | 230 | 4600 | |
| XT-FQTC-Φ217X190 | 1 area | Φ217X190 | 230 | 4000 | |
| XT-FQTC-Φ170X380 | 2 area | Φ170X380 | 230 | 5200 | |
| XT-FQTC-Φ123X220 | 3 area | Φ123X220 | 230 | 2600 | |
| XT-FQTC-Φ375X345 | 1 area | Φ375X345 | 3X400 | 16000 | |
| XT-FQTC-Φ295X315 | 2 area | Φ295X315 | 230 | 6350 | |
| XT-FQTC-Φ295X255 | 3 area | Φ295X255 | 230 | 4940 | |
| XT-FQTC-Φ215/Φ195X430 | 4 area | Φ215/Φ195X430 | 230 | 5930 | |
| XT-FQTC-Φ350X360 | 1 area | Φ350X360 | 3X400 | 18000 | |
| XT-FQTC-Φ350X120 | 2 area | Φ350X120 | 3X400 | 6500 | |
| XT-FQTC-Φ310X350 | 3 area | Φ310X350 | 3X400 | 8600 | |
| XT-FQTC-Φ280X300 | 4 area | Φ280X300 | 3X400 | 4600 | |
| XT-FQTC-Φ250X290 | 5 area | Φ250X290 | 3X400 | 4200 | |
| XT-FQTC-Φ250/Φ210X510 | 6 area | Φ250/Φ210X510 | 3X400 | 8600 | |
| XT-FQTC-Φ75X162 | Φ75X162 | 230 | 1400 | ||
| XT-FQTC-Φ90X220 | Φ90X220 | 230 | 1500 | ||
| XT-FQTC-Φ130X280 | Φ130X280 | 230 | 2200 | ||
| XT-FQTC-Φ140X325 | Φ140X325 | 230 | 4000 | ||
| XT-FQTC-Φ150X420 | Φ150X420 | 400 | 5000 | ||
| XT-FQTC-Φ175X460 | Φ175X460 | 400 | 7000 | ||
| XT-FQTC-Φ200X550 | Φ200X550 | 400 | 12000 |
Shipment
provides customers with quality and safe transportation.
