Durable Polyimide Film Heaters

Description

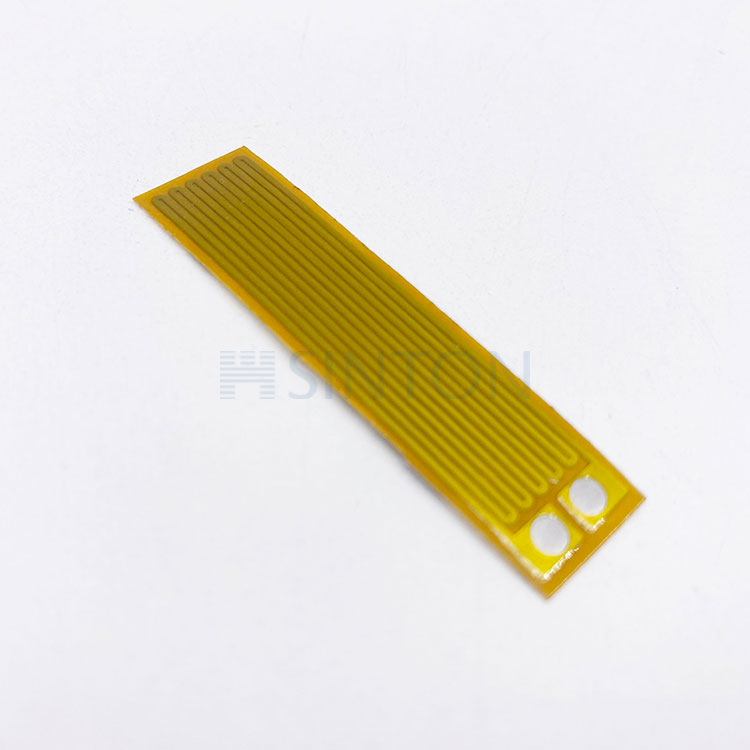

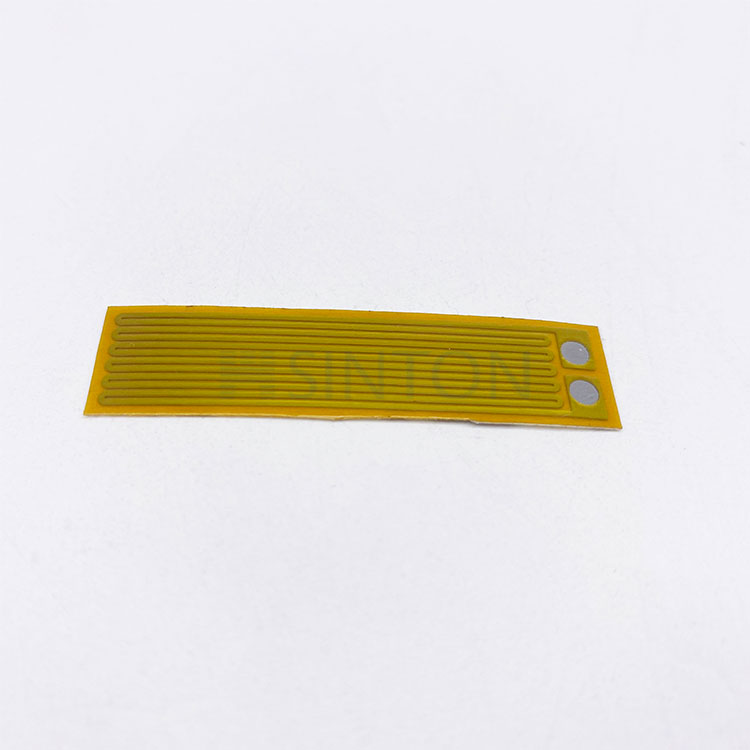

sing a single-layer polyimide film as the base material, the metal heating layer is directly deposited on the surface by sputtering process, and then cut into a specific heating path by laser. The outer layer is covered with an ultra-thin polyimide coating for insulation. The integrated structure is only 0.08-0.15mm thick, with high bonding strength and strong weather resistance, and can be used for a long time in damp and dusty environments.

Advantages

1.Ultra-thin and lightweight, with a thickness starting from 0.08mm, suitable for precision equipment and ultra-thin interlayers.

2.Resistant to bending fatigue, the resistance change rate is less than 5% after 100,000 ±90° bends, suitable for frequent deformation scenarios.

3.Instantaneous start-up, the response time from power-on to rated temperature is less than 2 seconds, suitable for rapid heating replenishment.

4.Low heat capacity, with the temperature dropping to 50% of the ambient temperature within 3 seconds after power failure, facilitating pulse temperature control.

5.High-frequency compatibility, with dielectric loss less than 0.002 under a 10MHz high-frequency electric field, does not interfere with RF equipment.

Specification

Parameter	Range/Typical value	Explanation
Voltage	3V-220V DC/AC	Supports wide input, and the AC model is equipped with a built-in rectifier module
Power density	0.1 W/cm squared - 5 W/cm squared	For high-frequency applications, it is recommended to be ≤2W/cm²
Maximum size	Single sheet: 600mm×1200mm	Extra-large size can be spliced, with a joint temperature difference of less than 2℃
Bending radius	Dynamic ≥0.5mm, static ≥0.3mm	It can withstand a tensile force of 5N when folded
Working temperature	60 ℃ to 220 ℃	It can withstand 260℃ for a short period of 30 minutes
Insulation resistance	≥1000MΩ (500V DC)	It remains ≥100MΩ after being immersed in water for 24 hours
Lead wire specification	0.1mm²-0.5mm² fluoroplastic wire	It supports a maximum extension of 5 meters
Protection grade	IP65 (Surface Spray type)	Customizable IP67 waterproof model

Application

Flexible electronics: Heat dissipation layer of flexible display screens, low-temperature display retention of electronic paper readers.
New energy equipment: Edge anti-snow heating of flexible solar panels, low-temperature start-up heating of hydrogen fuel cells.
High-end textiles: Smart ski suits are heated in different zones, and aviation life jackets heat up when in contact with water.
Precision Optics: Infrared lens anti-fog, laser resonant cavity stable power and temperature control.
Rail transit: Anti-icing for pantograph sliding plates on high-speed railways, low-temperature elastic sealing strips for metro platform screen doors.
