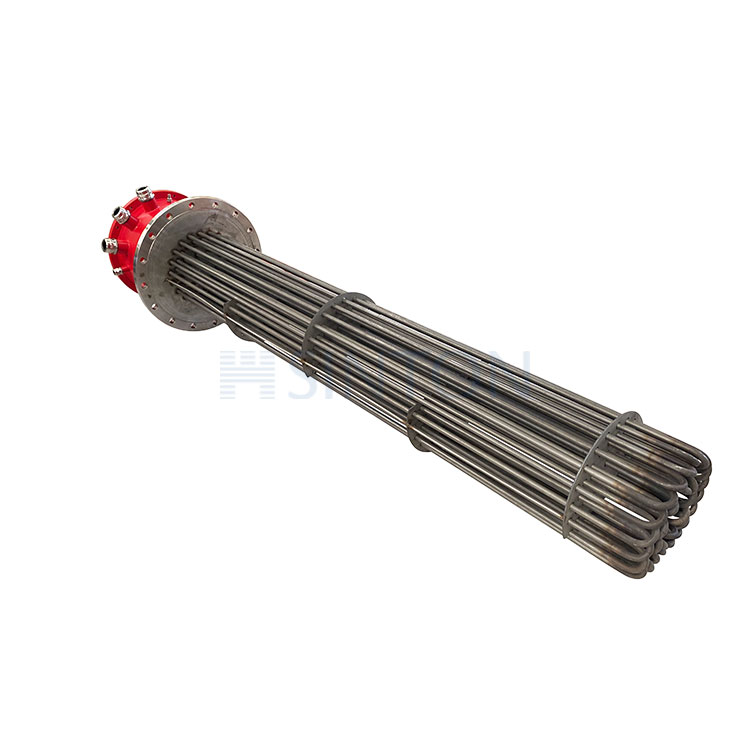

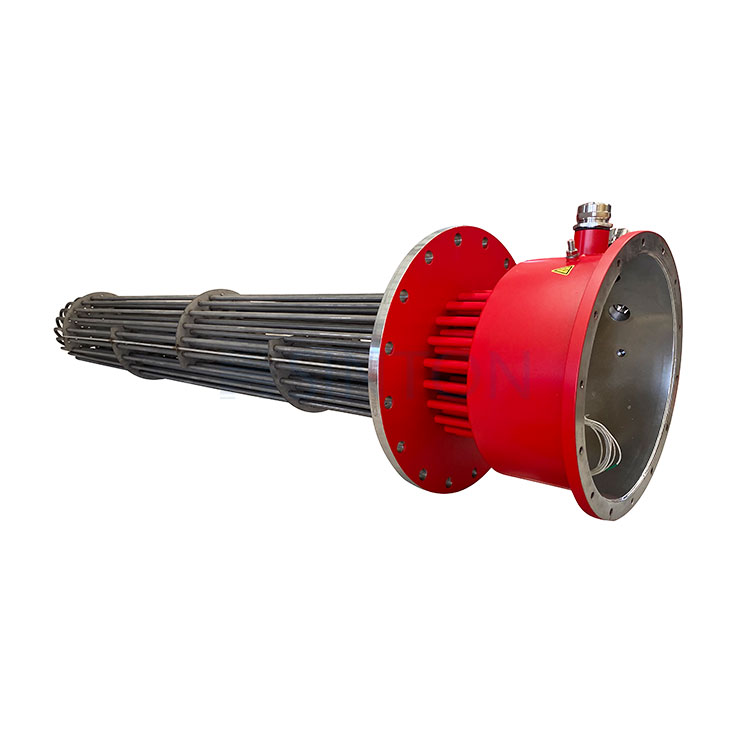

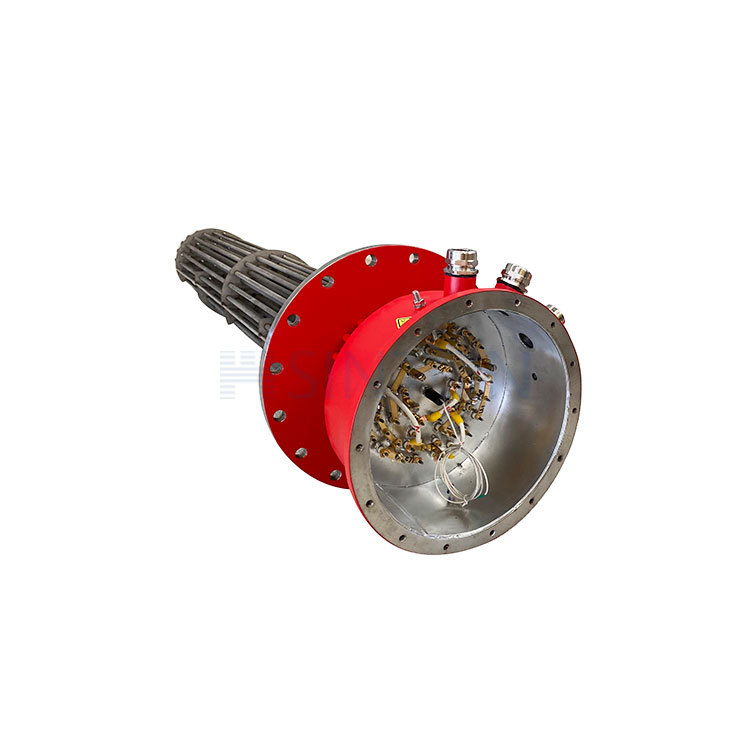

Flanged Heaters Custom

Flanged Heaters

Resistance heating:

The current passes through a high-resistance heating element such as nickel-chromium alloy, and according to Joule's law, the electrical energy is converted into heat energy, which heats up the element.

Heat transfer

Conduction: Heat is transferred from the heating element to the wall of the pipe or container, heating it up.

Convection:

After the liquid is heated, the hot liquid rises and the cold liquid falls to form convection, and the stirring device or circulating pump can speed up the process.

Radiation:

The heating element dissipates heat from its surroundings in the form of thermal radiation.

Flange Immersion Heater Design & Features

1. Install and maintain

Flange connection, fast installation, low cost.

Flexible installation position, easy disassembly and maintenance.

2. Heating performance

Rapid heating, high production efficiency.

Uniform heating, stable product quality.

3. Safe and reliable

There are multiple security devices.

Excellent material, stable operation in harsh environment.

4. Temperature control

Precise temperature control.

Flexible temperature adjustment as required.

5. Energy efficient

High thermal efficiency, low energy consumption.

High integration with other equipment, comprehensive use of energy.

Applications:

1.Petrochemical industry

Heat the crude oil to reduce viscosity and facilitate transportation.

Heat chemical reactor materials to meet the reaction temperature requirements.

Heat asphalt, paraffin and other materials to prevent solidification and blockage of pipelines during transportation.

2. Power industry

Heating turbine lubricating oil to ensure its lubrication performance.

Water supply heating for thermal system to improve system efficiency.

3. Food and beverage industry

For dairy products sterilization, concentration, drying and other processing links.

Heating liquid raw materials or products during beverage preparation, sterilization, filling, etc.

4. Shipping industry

Heating fuel to improve combustion efficiency.

Used to heat seawater in desalination plants.

5. Other industries

In pharmaceutical, it is used for raw material synthesis, preparation drying and other links.

Heating hot water or steam in building HVAC systems.

Product Parameter

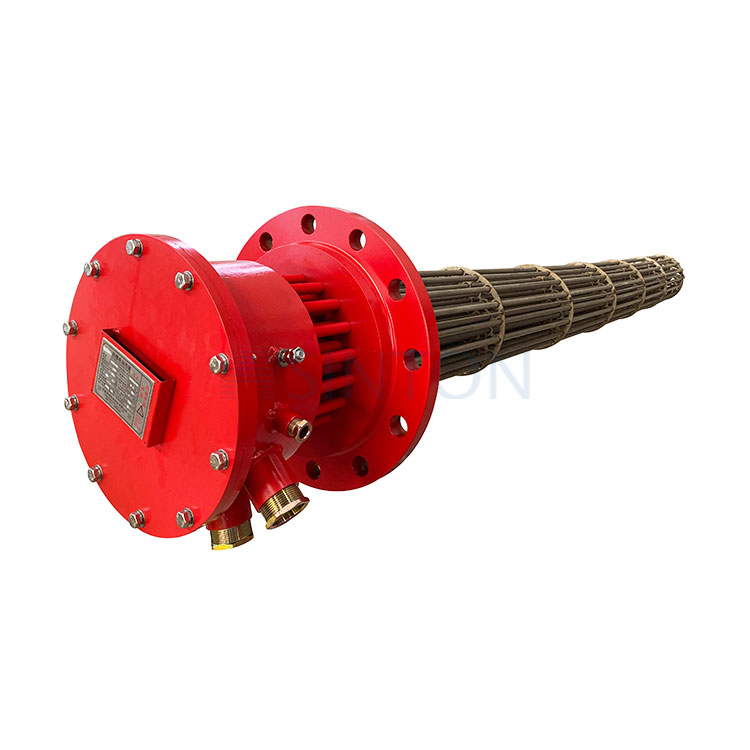

Explosion-proof flange immersion heater specification

Specifications Power Kw Flanged Immersion Heater for Liquid Flanged Heater for Air Temperature control range Power Supply
size (mm) Us (pieces of u) size (mm) Us (pieces of u)
XTFL-5 5 DN80*500 3 DN100*600 3 RT-700 Single-phase 220v
XTFL-10 10 DN80*700 3 DN100*700 6 Three-phase380V,50HZ
XTFL-15 15 DN125*700 6 DN125*700 9
XTFL-20 20 DN150*800 6 DN150*900 9
XTFL-30 30 DN150*800 9 DN150*1000 12
XTFL-40 40 DN200*1000 12 DN200*1200 15
XTFL-50 50 DN200*1000 12 DN200*1200 15
XTFL-60 60 DN200*1200 15 DN250*1300 18
XTFL-80 80 DN250*1400 18 DN250*1500 18
XTFL-100 100 DN250*1600 18 DN300*1600 24
XTFL-120 120 DN250*1600 18 DN300*1600 27
XTFL-150 150 DN300*1600 24 DN350*1600 36
XTFL-180 180 DN300*1600 27 DN350*1800 36
XTFL-200 200 DN300*1800 27 DN400*1800 45
XTFL-240 240 DN350*1800 36 DN400*1800 54
XTFL-280 280 DN350*1800 36 DN500*1600 72
XTFL-300 300 DN400*1800 42 DN500*1600 72
XTFL-360 360 DN400*1800 45 DN500*1800 72
XTFL-400 400 DN400*1800 54 DN600*1800 84
XTFL-450 450 DN450*1800 60 DN600*1800 90
XTFL-500 500 DN500*1800 72 DN700*1800 108
XTFL-600 600 DN600*1800 84 DN800*1800 120
XTFL-700 700 DN600*1800 90 DN900*1800 144
XTFL-800 800 DN700*1800 108 DN900*1800 180
XTFL-900 900 DN800*1800 120 DN900*1800 180
XTFL-1000 1000 DN900*1800 144 DN1000*1800 216

Shipment

provides customers with quality and safe transportation.

air duct heater package

Heater equipements LCL shipment

heater packed on steel pallet

Immersion heater packing1

LCL loading 3

LCL shipment loading 2

LCL shipment

plywood package 2
