Heating Equipment

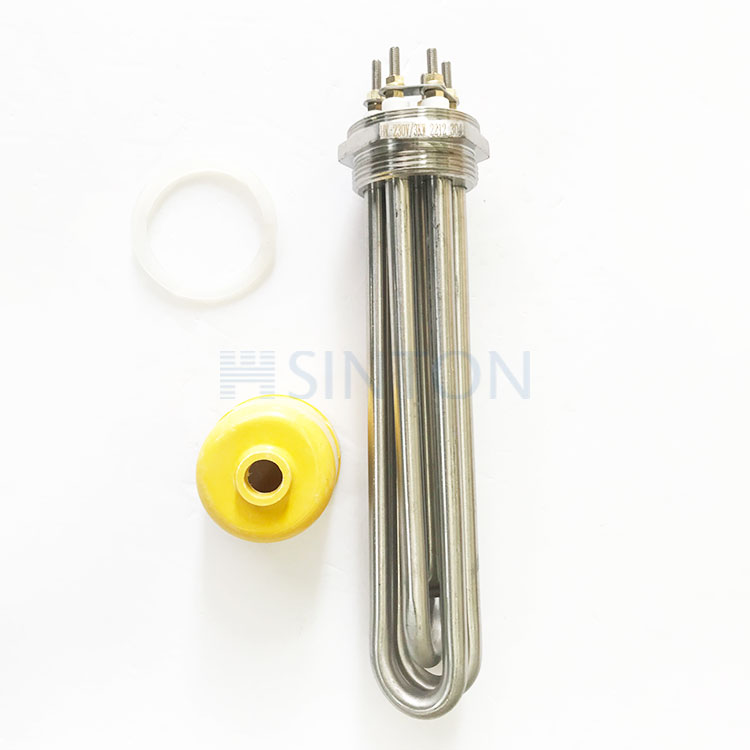

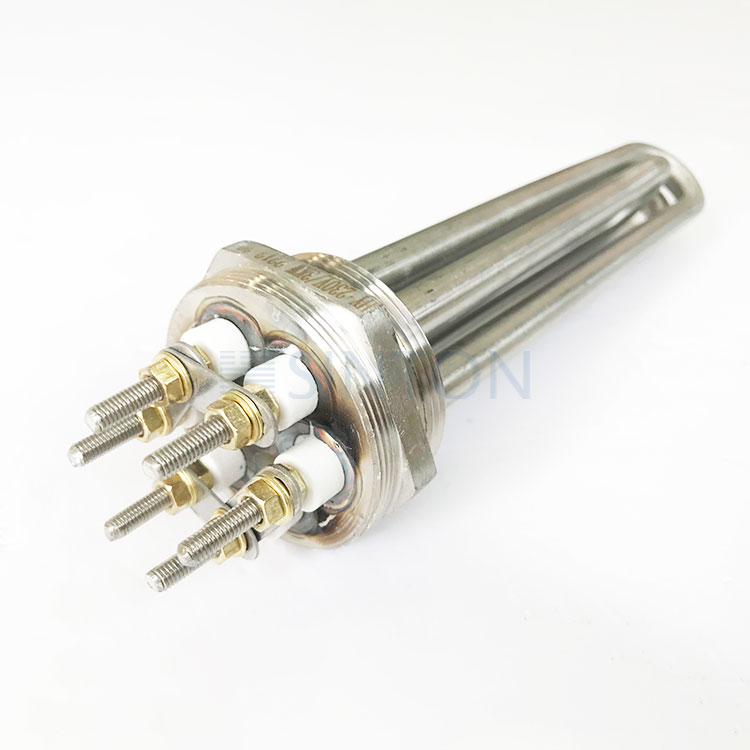

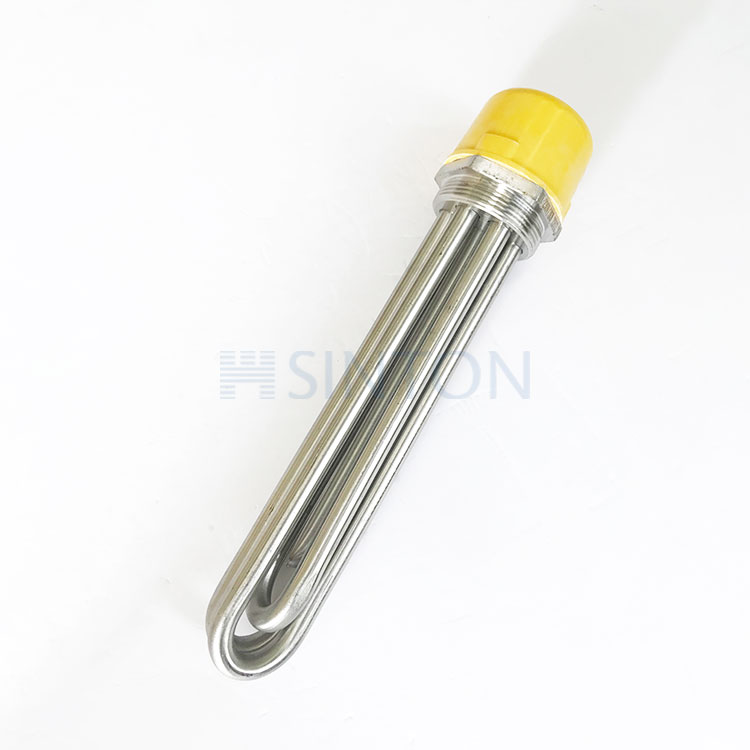

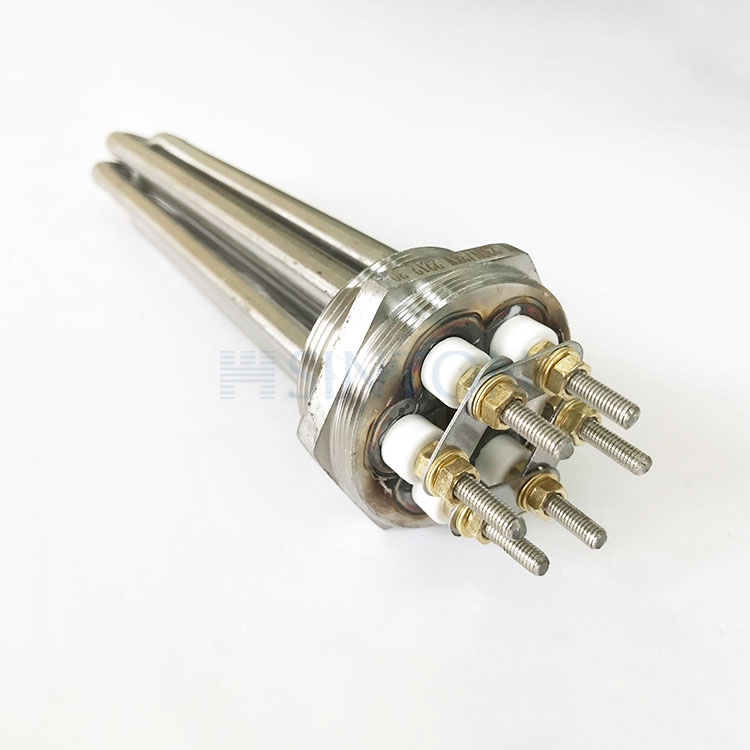

Stainless steel tubular immersion electric heater is a device for heating liquids, used to heat liquids such as water, oil, and chemical solutions. This heater consists of multiple stainless steel pipes, which are equipped with electric heating elements inside and insulated materials outside. When the current passes through the heating elements, heat is generated to heat the liquid inside the pipes. The design of the stainless steel tubular immersion electric heater allows it to be directly immersed in the liquid, making the heating process more efficient and uniform. Due to its compact structure, it can be installed in various containers and systems, suitable for different heating needs. Its stainless steel material not only provides good corrosion resistance, but also helps to prevent chemical reactions during the heating process, ensuring the purity of the heating liquid.
Product Parameter
Explosion-proof flange immersion heater specification
| Specifications | Power Kw | Flanged Immersion Heater for Liquid | Flanged Heater for Air | Temperature control range | Power Supply | ||
| size (mm) | Us (pieces of u) | size (mm) | Us (pieces of u) | ||||
| XTFL-5 | 5 | DN80*500 | 3 | DN100*600 | 3 | RT-700 | Single-phase 220v |
| XTFL-10 | 10 | DN80*700 | 3 | DN100*700 | 6 | Three-phase380V,50HZ | |
| XTFL-15 | 15 | DN125*700 | 6 | DN125*700 | 9 | ||
| XTFL-20 | 20 | DN150*800 | 6 | DN150*900 | 9 | ||
| XTFL-30 | 30 | DN150*800 | 9 | DN150*1000 | 12 | ||
| XTFL-40 | 40 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-50 | 50 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-60 | 60 | DN200*1200 | 15 | DN250*1300 | 18 | ||
| XTFL-80 | 80 | DN250*1400 | 18 | DN250*1500 | 18 | ||
| XTFL-100 | 100 | DN250*1600 | 18 | DN300*1600 | 24 | ||
| XTFL-120 | 120 | DN250*1600 | 18 | DN300*1600 | 27 | ||
| XTFL-150 | 150 | DN300*1600 | 24 | DN350*1600 | 36 | ||
| XTFL-180 | 180 | DN300*1600 | 27 | DN350*1800 | 36 | ||
| XTFL-200 | 200 | DN300*1800 | 27 | DN400*1800 | 45 | ||
| XTFL-240 | 240 | DN350*1800 | 36 | DN400*1800 | 54 | ||
| XTFL-280 | 280 | DN350*1800 | 36 | DN500*1600 | 72 | ||
| XTFL-300 | 300 | DN400*1800 | 42 | DN500*1600 | 72 | ||
| XTFL-360 | 360 | DN400*1800 | 45 | DN500*1800 | 72 | ||
| XTFL-400 | 400 | DN400*1800 | 54 | DN600*1800 | 84 | ||
| XTFL-450 | 450 | DN450*1800 | 60 | DN600*1800 | 90 | ||
| XTFL-500 | 500 | DN500*1800 | 72 | DN700*1800 | 108 | ||
| XTFL-600 | 600 | DN600*1800 | 84 | DN800*1800 | 120 | ||
| XTFL-700 | 700 | DN600*1800 | 90 | DN900*1800 | 144 | ||
| XTFL-800 | 800 | DN700*1800 | 108 | DN900*1800 | 180 | ||
| XTFL-900 | 900 | DN800*1800 | 120 | DN900*1800 | 180 | ||
| XTFL-1000 | 1000 | DN900*1800 | 144 | DN1000*1800 | 216 | ||
Shipment
provides customers with quality and safe transportation.
