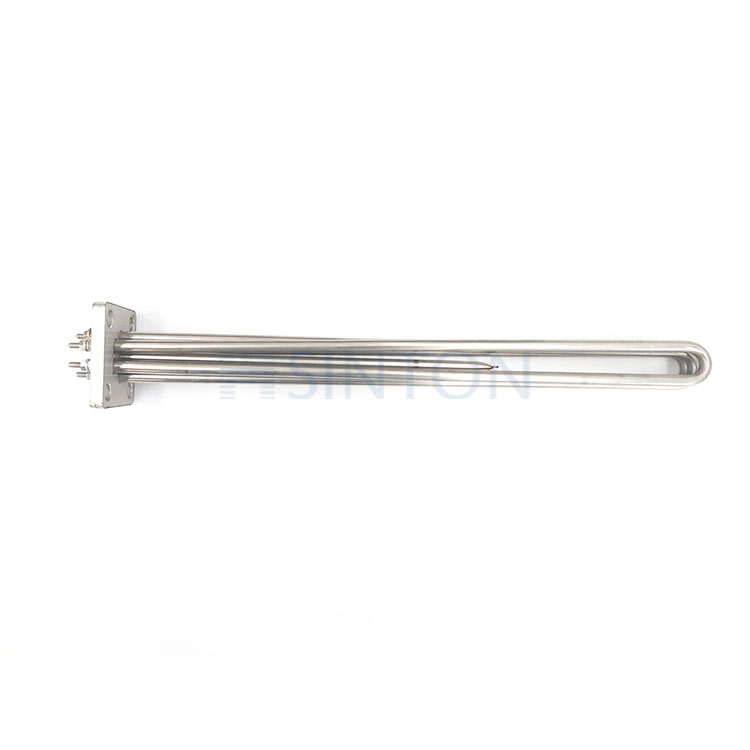

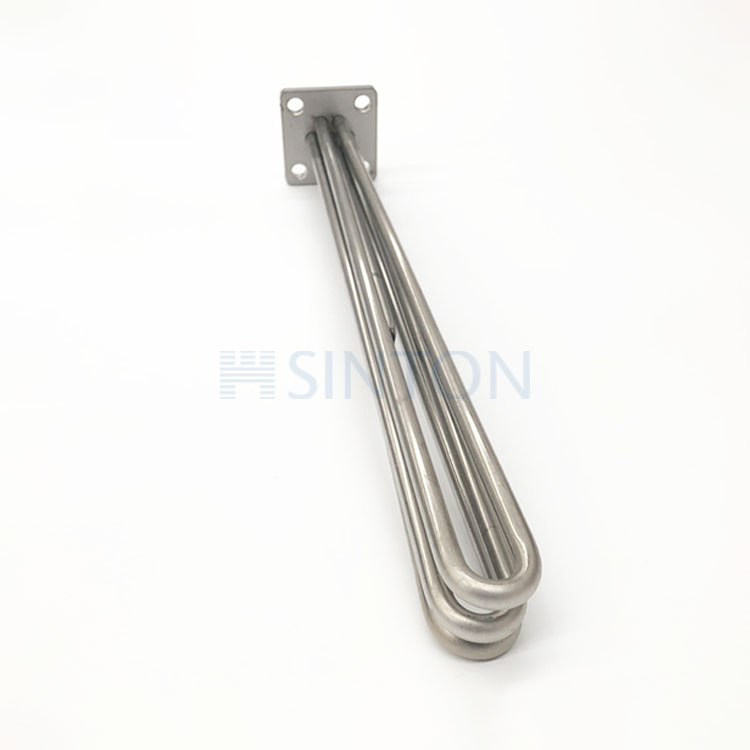

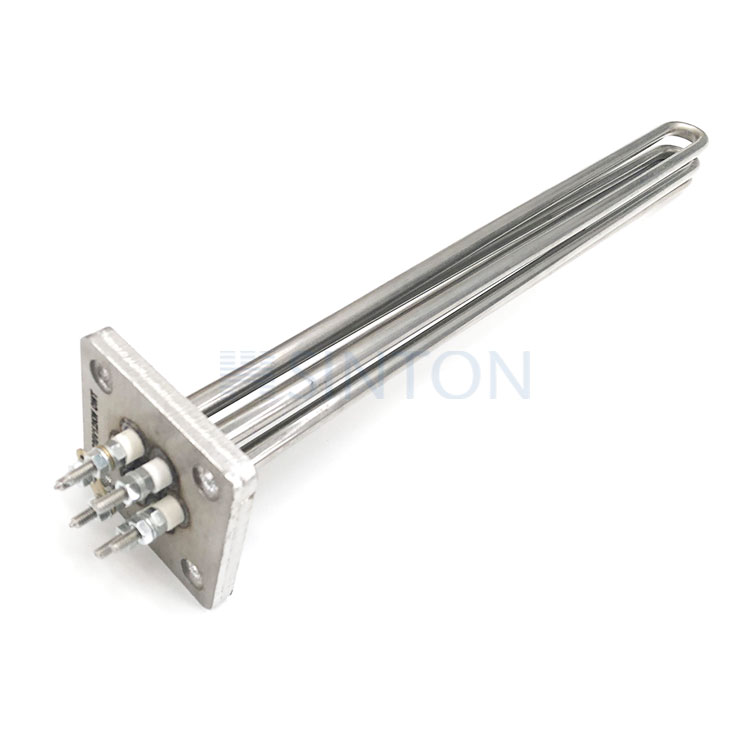

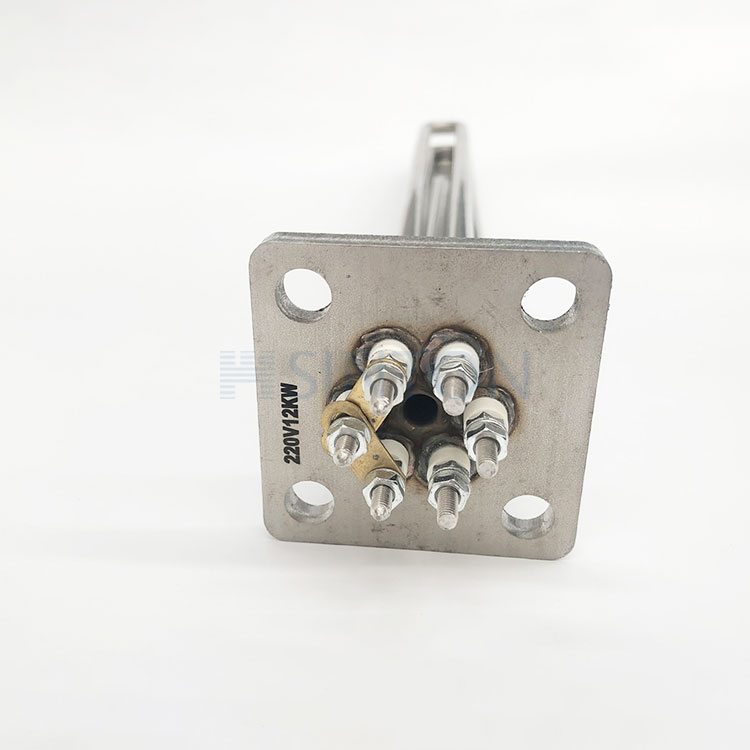

Square Flange Water Immersed Heating Pipe

The square flange immersion heating tube is an efficient electric heating element specially designed for liquid heating. The heating tube is welded or fixed onto the square flange and can be directly installed in water tanks, storage tanks, reaction vessels and other containers. It is widely used in industrial water, electroplating solution, cleaning equipment and process heating systems.
Its working principle is to convert electrical energy into thermal energy, and then the heat is evenly conducted through the tube body to the heated medium to achieve rapid heating and constant temperature control. The material of the outer shell can be selected from stainless steel, copper, titanium alloy or special alloys according to the working conditions to ensure corrosion resistance and long-term stable operation.

Product Parameter

Voltage range

220V / 380V / Custom voltage

Power range

1kW - 100kW (customizable according to requirements)

Heating tube diameter

φ8mm - φ16mm (customizable)

Flange size

Standard square flanges (such as 90×90mm, 110×110mm, 140×140mm), or processed according to customer requirements

Tube material

Stainless steel 304 / 316L, copper, titanium, nickel-based alloy

Working medium

water, industrial cleaning solution, electroplating solution, weak acid and alkali solutions, etc

Control method

Optional temperature controller, thermocouple, or temperature sensor can be equipped to achieve automatic control

Installation method

Flange fixed type, easy to disassemble and replace



Product Advantages

High heating efficiency: The electrical-to-thermal conversion rate is over 98%, the heating process is fast, and energy consumption is saved.

Installation and maintenance are convenient: The square flange design ensures stable installation, easy disassembly, and facilitates maintenance.

Excellent corrosion resistance: Different materials can be selected according to the medium, and it can adapt to various environments such as water, weak acids and alkalis.

Safe and reliable: The heating tube is equipped with high-quality nickel-chromium wire, which has excellent insulation properties, ensuring safe operation for a long time.

Support customization: Voltage, power, size, and flange specifications can all be designed according to customer requirements.

Long-life design: The surface of the tube has been specially treated to prevent scaling and enhance heat transfer efficiency and service life.



Product Application

Industrial water heating: boiler makeup water tank, cleaning equipment, circulating water system

Electroplating and Surface Treatment: Galvanizing tank, Nickel plating tank, Chemical cleaning tank

Chemical industry: Heating of reaction vessels, insulation of chemical solutions

Food and beverages: Cleaning equipment, heating liquid in ingredient tanks

New Energy and Environmental Protection: Sewage Treatment Ponds, Waste Liquid Heating, Energy Storage System
