Heating Equipment
Product Parameter

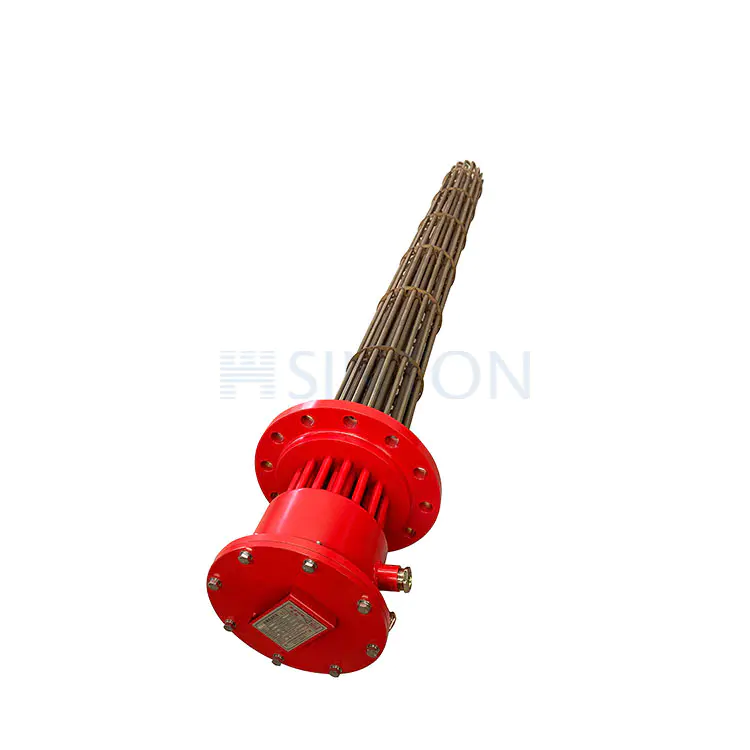

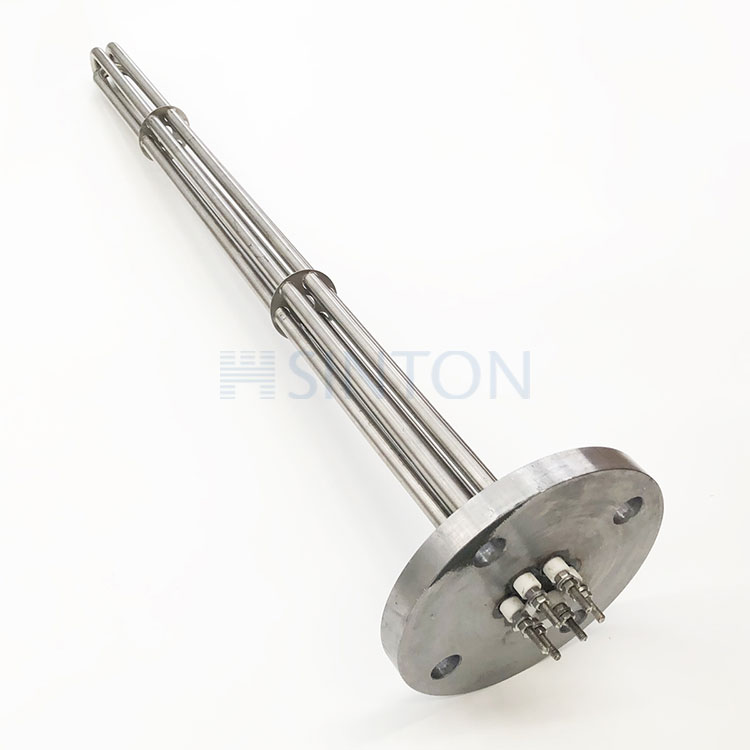

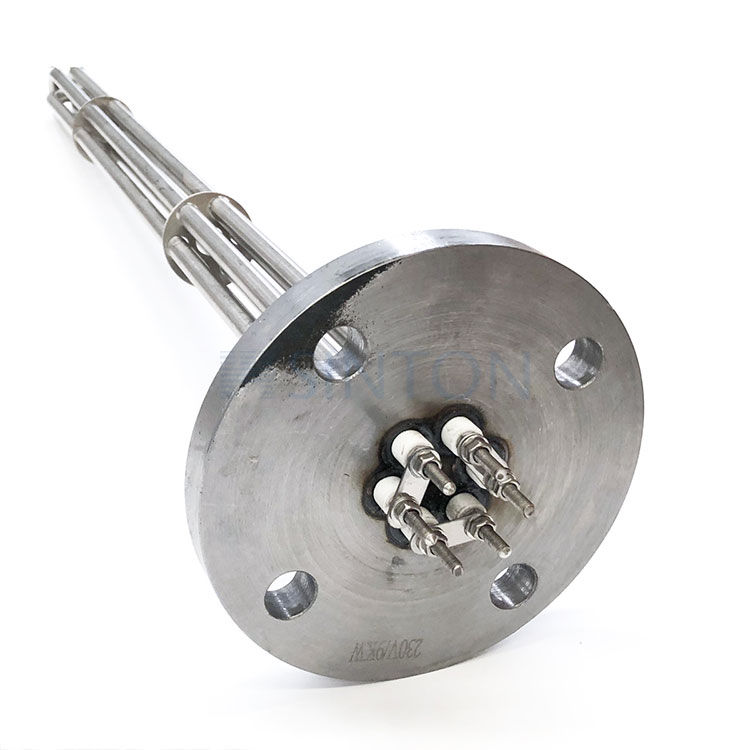

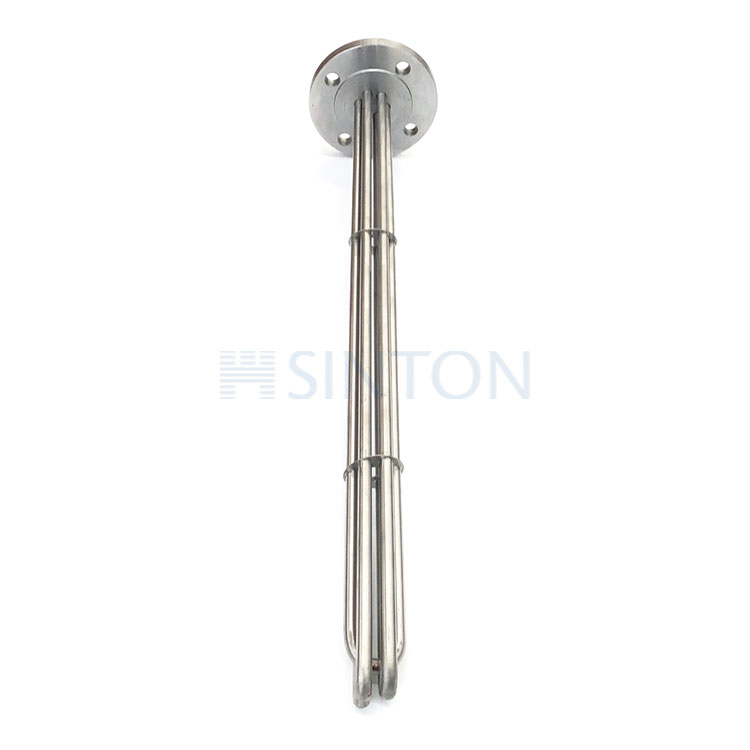

Explosion-proof flange immersion heater specification
| Specifications | Power Kw | Flanged Immersion Heater for Liquid | Flanged Heater for Air | Temperature control range | Power Supply | ||
| size (mm) | Us (pieces of u) | size (mm) | Us (pieces of u) | ||||
| XTFL-5 | 5 | DN80*500 | 3 | DN100*600 | 3 | RT-700 | Single-phase 220v |
| XTFL-10 | 10 | DN80*700 | 3 | DN100*700 | 6 | Three-phase380V,50HZ | |
| XTFL-15 | 15 | DN125*700 | 6 | DN125*700 | 9 | ||
| XTFL-20 | 20 | DN150*800 | 6 | DN150*900 | 9 | ||
| XTFL-30 | 30 | DN150*800 | 9 | DN150*1000 | 12 | ||
| XTFL-40 | 40 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-50 | 50 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-60 | 60 | DN200*1200 | 15 | DN250*1300 | 18 | ||
| XTFL-80 | 80 | DN250*1400 | 18 | DN250*1500 | 18 | ||
| XTFL-100 | 100 | DN250*1600 | 18 | DN300*1600 | 24 | ||
| XTFL-120 | 120 | DN250*1600 | 18 | DN300*1600 | 27 | ||
| XTFL-150 | 150 | DN300*1600 | 24 | DN350*1600 | 36 | ||
| XTFL-180 | 180 | DN300*1600 | 27 | DN350*1800 | 36 | ||
| XTFL-200 | 200 | DN300*1800 | 27 | DN400*1800 | 45 | ||
| XTFL-240 | 240 | DN350*1800 | 36 | DN400*1800 | 54 | ||
| XTFL-280 | 280 | DN350*1800 | 36 | DN500*1600 | 72 | ||
| XTFL-300 | 300 | DN400*1800 | 42 | DN500*1600 | 72 | ||
| XTFL-360 | 360 | DN400*1800 | 45 | DN500*1800 | 72 | ||
| XTFL-400 | 400 | DN400*1800 | 54 | DN600*1800 | 84 | ||
| XTFL-450 | 450 | DN450*1800 | 60 | DN600*1800 | 90 | ||
| XTFL-500 | 500 | DN500*1800 | 72 | DN700*1800 | 108 | ||
| XTFL-600 | 600 | DN600*1800 | 84 | DN800*1800 | 120 | ||
| XTFL-700 | 700 | DN600*1800 | 90 | DN900*1800 | 144 | ||
| XTFL-800 | 800 | DN700*1800 | 108 | DN900*1800 | 180 | ||
| XTFL-900 | 900 | DN800*1800 | 120 | DN900*1800 | 180 | ||
| XTFL-1000 | 1000 | DN900*1800 | 144 | DN1000*1800 | 216 | ||
Shipment
provides customers with quality and safe transportation.
