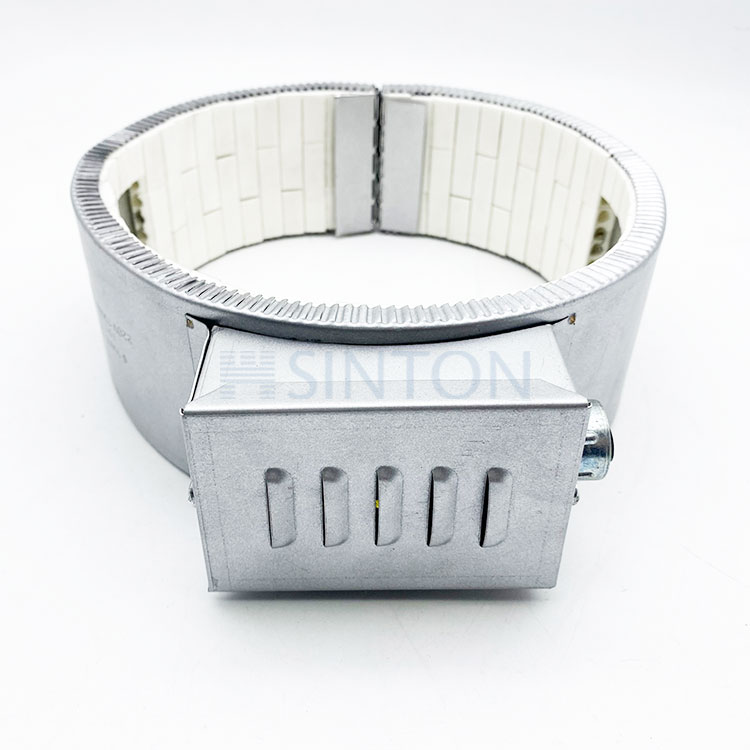

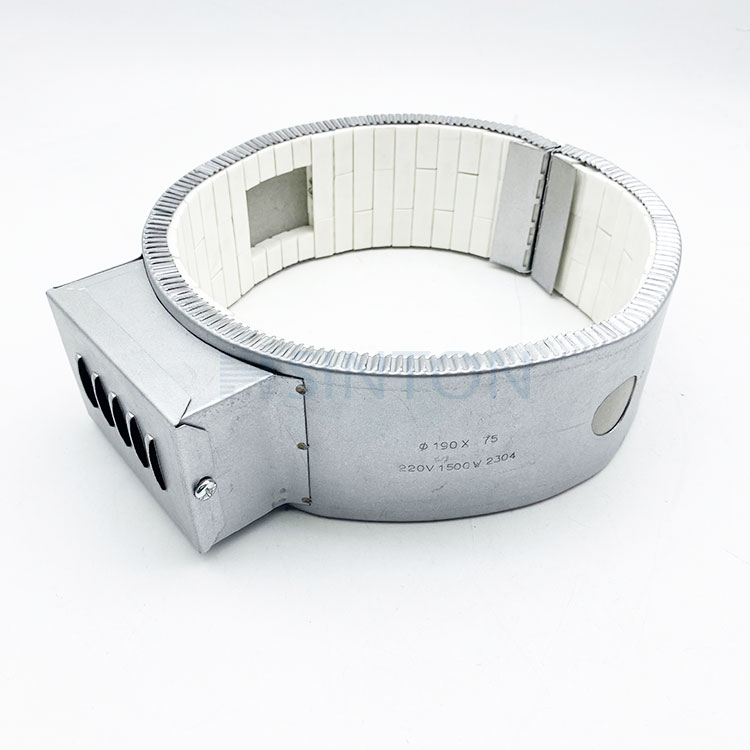

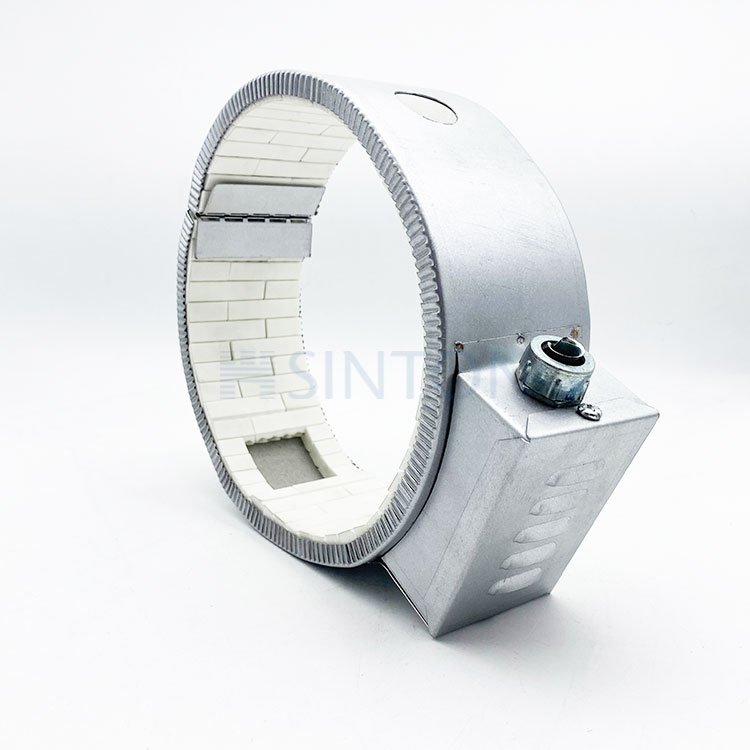

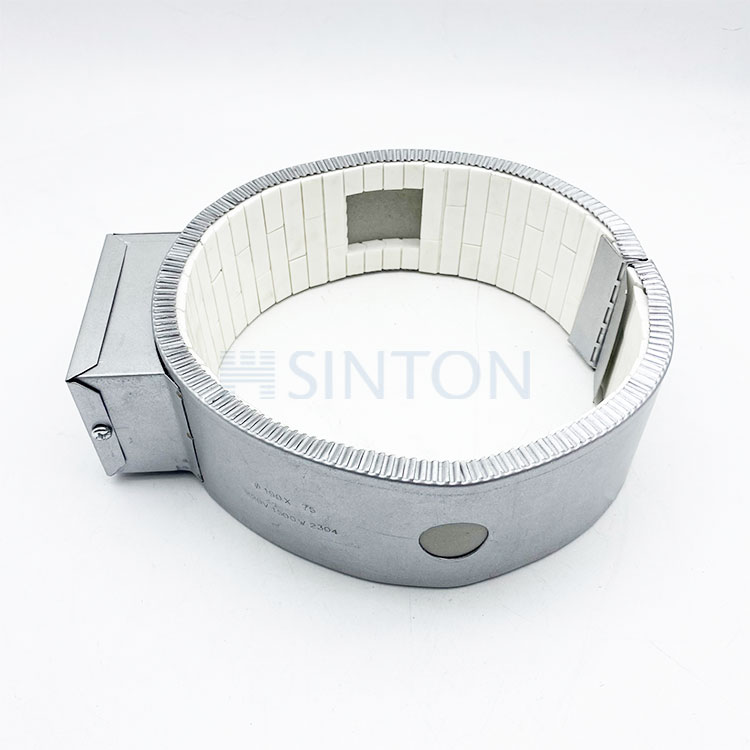

Energy-Saving Ceramic Band Heater

Energy-Saving Ceramic Band Heater

The ceramic belt heater provides customers with a solution for heating large cylinders under medium - to - high - temperature conditions of 1600°F (approximately 870°C), avoiding the problem of malfunctions caused by the easy occurrence of "hot spots" when traditional belt heaters are used on large - diameter cylinders. This ceramic belt is integrated with a heat - insulating layer, which can effectively reduce environmental heat loss and energy consumption.

Industrial heaters are suitable for application scenarios with an operating temperature range of up to 1600°F and can provide uniform industrial heating for the barrels of injection and extrusion molding machines. The ceramic tiles and high - temperature - resistant wires have efficient heat - transfer capabilities. Its 1/4 - inch - thick ceramic fiber insulation layer can save an additional 25% of energy compared to non - insulated types. The ceramic belt heater can also provide a radiant heating effect for the heated objects. The CB belt heater can be made wider, reducing the number of heaters required in each area, enabling a wider heating mode, and simplifying the wiring.

Key Features：

Thermally insulated for minimum heat loss

Lower operating cost

Efficient heat transfer

Uniform heat distribution

Longer heater life

Higher operating temperatures

Flexible and easy to install

Applications：

Injection Moulding l Blow Moulding l Film Extruders l Pipe Extruders l Laboratory Equipment

Parameter detail

Product Parameter

SIZE(MM) WATT(W) SIZE WATT SIZE WATT SIZE WATT
Ø25×25 120 Ø32×25 115 Ø38×25 140 Ø45×25 160
Ø25×30 120 Ø32×30 140 Ø38×30 160 Ø45×30 185
Ø25×32 120 Ø32×32 150 Ø38×32 170 Ø45×32 200
Ø25×35 130 Ø32×35 160 Ø38×35 190 Ø45×35 225
Ø25×38 140 Ø32×38 175 Ø38×38 200 Ø45×38 240
Ø25×40 150 Ø32×40 180 Ø38×40 225 Ø45×40 250
Ø25×45 165 Ø32×45 200 Ø38×45 270 Ø45×45 275
Ø25×50 180 Ø32×50 230 Ø38×50 275 Ø45×50 325
Ø30×25 120 Ø35×25 130 Ø40×25 140 Ø50×25 180
Ø30×30 130 Ø35×30 150 Ø40×30 175 Ø50×30 220
Ø30×32 140 Ø35×32 160 Ø40×32 180 Ø50×32 235
Ø30×35 150 Ø35×35 175 Ø40×35 200 Ø50×35 250
Ø30×38 160 Ø35×38 190 Ø40×38 220 Ø50×38 280
Ø30×40 175 Ø35×40 200 Ø40×40 230 Ø50×40 300
Ø30×45 200 Ø35×45 225 Ø40×45 250 Ø50×45 325
Ø30×50 220 Ø35×50 250 Ø40×50 280 Ø50×50 375
