Heating Equipment

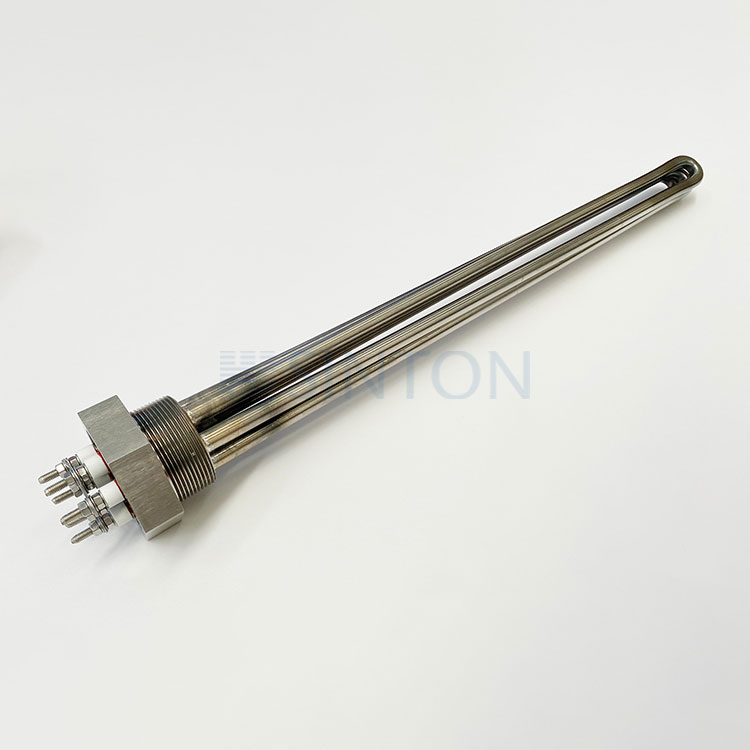

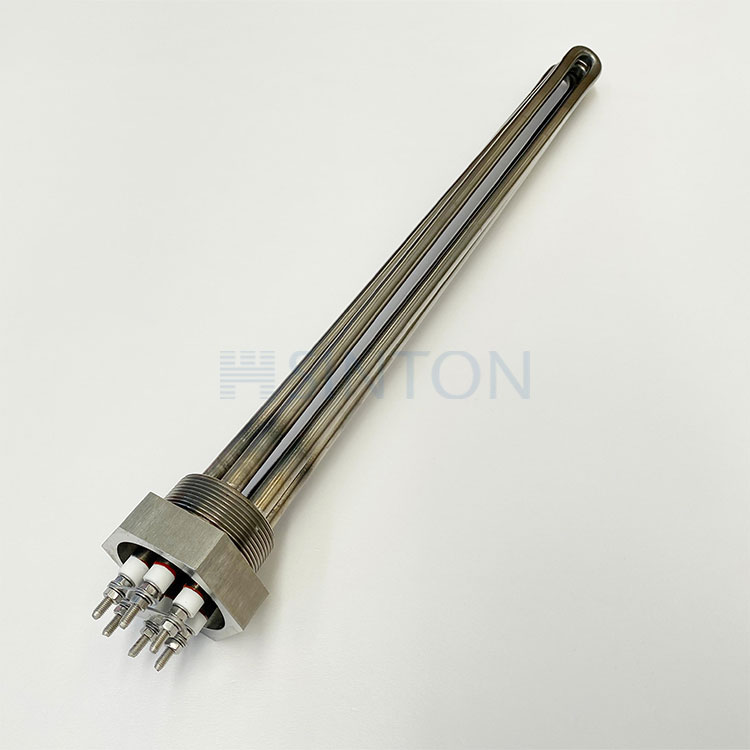

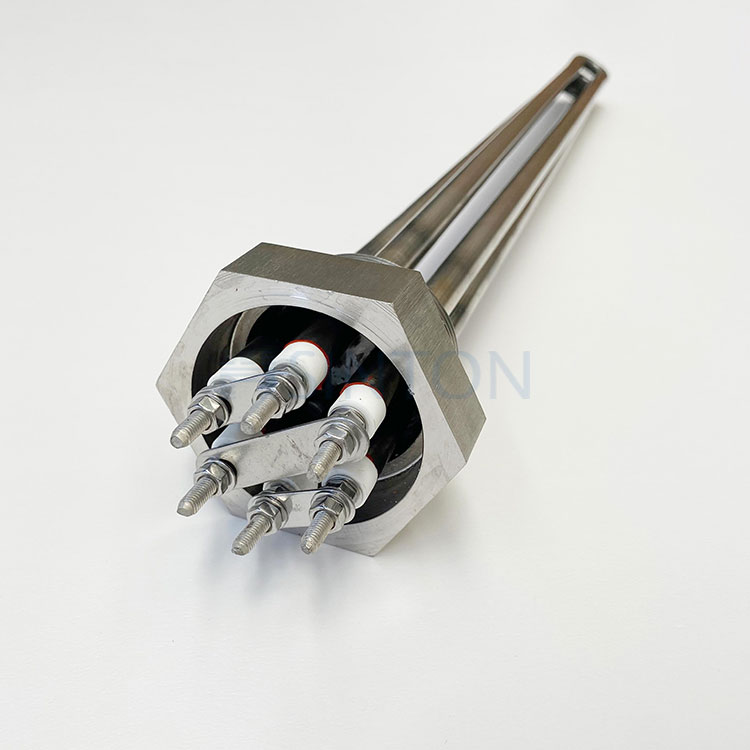

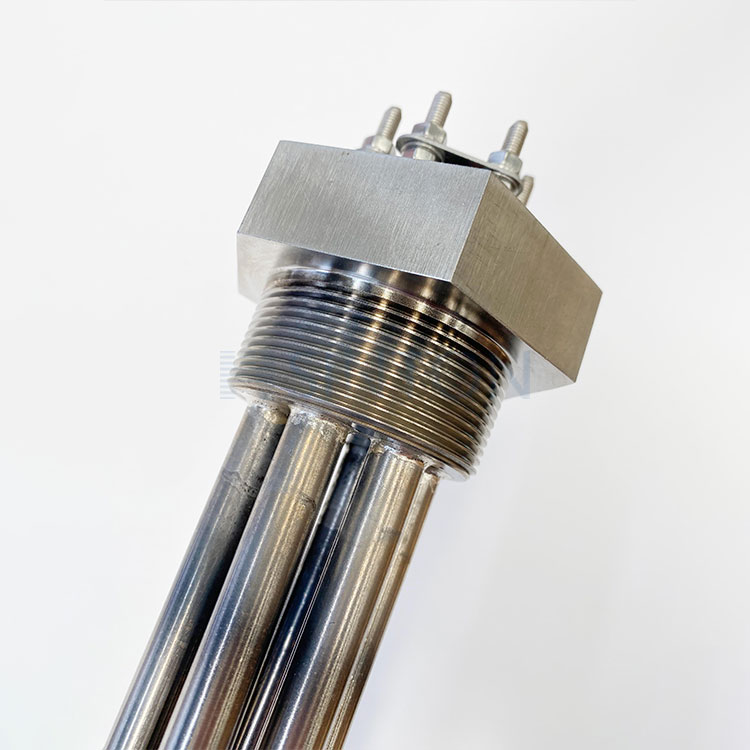

The industrial water tank heating pipe is a key component in various industrial processes that needs to heat water to a specific temperature. This heating pipe is designed to effectively transfer heat to the water supply, ensuring that the water reaches the temperature required for its use. It is used to control the temperature of the water, prevent ice formation in cold climates, and ensure that the water is at the optimal temperature for a specific industrial process. The industrial water tank heating pipes are made of durable materials such as stainless steel and copper to withstand high temperatures and corrosive environments. These heating pipes are insulated to minimize heat loss and maximize energy efficiency. They are equipped with safety features to prevent overheating and potential hazards. This includes temperature sensors, pressure relief valves, and emergency shutdown mechanisms to ensure safe operation.
Product Parameter
Explosion-proof flange immersion heater specification
| Specifications | Power Kw | Flanged Immersion Heater for Liquid | Flanged Heater for Air | Temperature control range | Power Supply | ||
| size (mm) | Us (pieces of u) | size (mm) | Us (pieces of u) | ||||
| XTFL-5 | 5 | DN80*500 | 3 | DN100*600 | 3 | RT-700 | Single-phase 220v |
| XTFL-10 | 10 | DN80*700 | 3 | DN100*700 | 6 | Three-phase380V,50HZ | |
| XTFL-15 | 15 | DN125*700 | 6 | DN125*700 | 9 | ||
| XTFL-20 | 20 | DN150*800 | 6 | DN150*900 | 9 | ||
| XTFL-30 | 30 | DN150*800 | 9 | DN150*1000 | 12 | ||
| XTFL-40 | 40 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-50 | 50 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-60 | 60 | DN200*1200 | 15 | DN250*1300 | 18 | ||
| XTFL-80 | 80 | DN250*1400 | 18 | DN250*1500 | 18 | ||
| XTFL-100 | 100 | DN250*1600 | 18 | DN300*1600 | 24 | ||
| XTFL-120 | 120 | DN250*1600 | 18 | DN300*1600 | 27 | ||
| XTFL-150 | 150 | DN300*1600 | 24 | DN350*1600 | 36 | ||
| XTFL-180 | 180 | DN300*1600 | 27 | DN350*1800 | 36 | ||
| XTFL-200 | 200 | DN300*1800 | 27 | DN400*1800 | 45 | ||
| XTFL-240 | 240 | DN350*1800 | 36 | DN400*1800 | 54 | ||
| XTFL-280 | 280 | DN350*1800 | 36 | DN500*1600 | 72 | ||
| XTFL-300 | 300 | DN400*1800 | 42 | DN500*1600 | 72 | ||
| XTFL-360 | 360 | DN400*1800 | 45 | DN500*1800 | 72 | ||
| XTFL-400 | 400 | DN400*1800 | 54 | DN600*1800 | 84 | ||
| XTFL-450 | 450 | DN450*1800 | 60 | DN600*1800 | 90 | ||
| XTFL-500 | 500 | DN500*1800 | 72 | DN700*1800 | 108 | ||
| XTFL-600 | 600 | DN600*1800 | 84 | DN800*1800 | 120 | ||
| XTFL-700 | 700 | DN600*1800 | 90 | DN900*1800 | 144 | ||
| XTFL-800 | 800 | DN700*1800 | 108 | DN900*1800 | 180 | ||
| XTFL-900 | 900 | DN800*1800 | 120 | DN900*1800 | 180 | ||
| XTFL-1000 | 1000 | DN900*1800 | 144 | DN1000*1800 | 216 | ||
Shipment
provides customers with quality and safe transportation.
