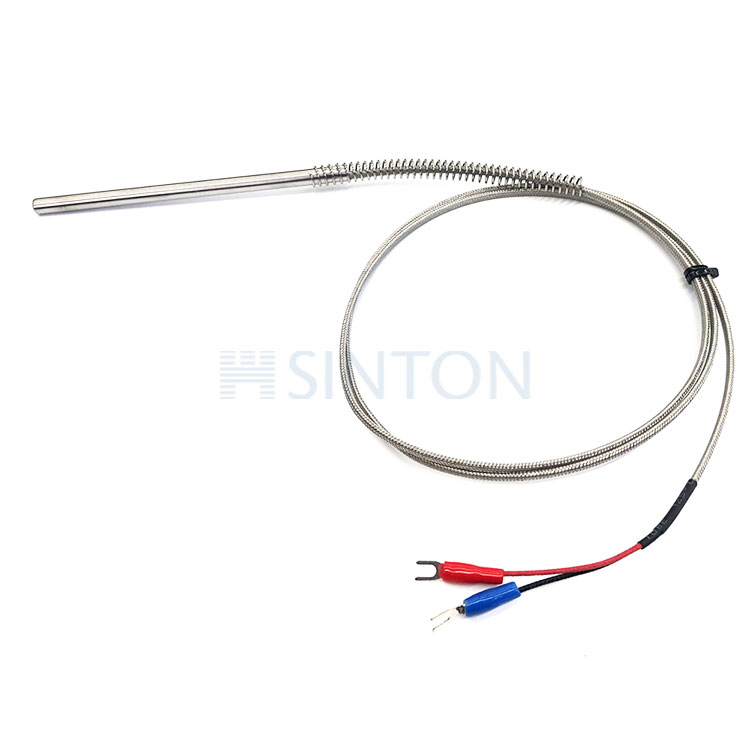

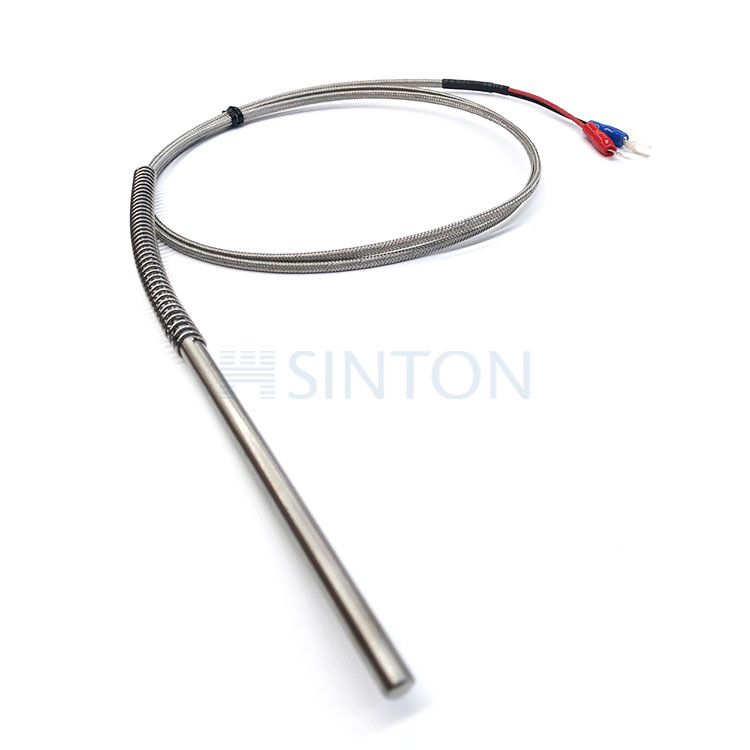

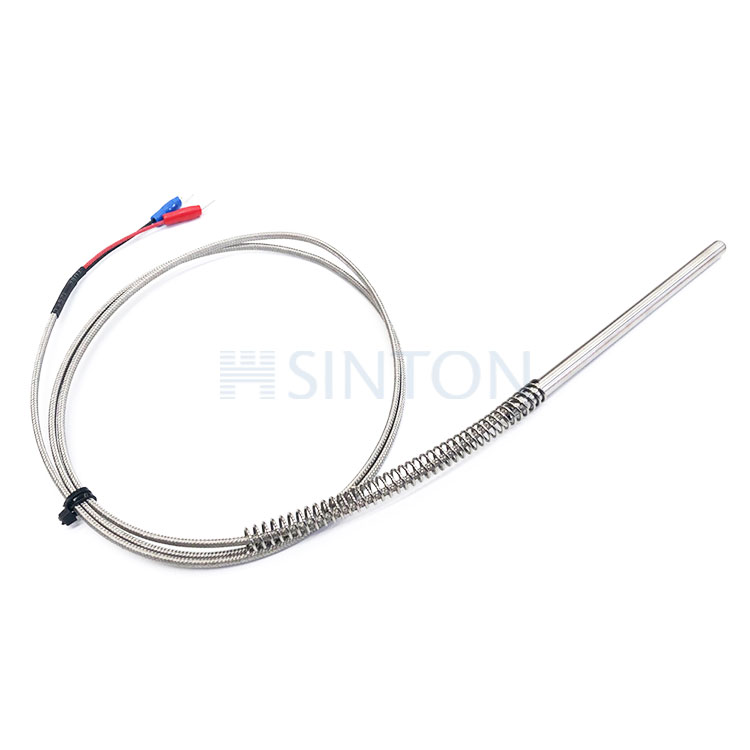

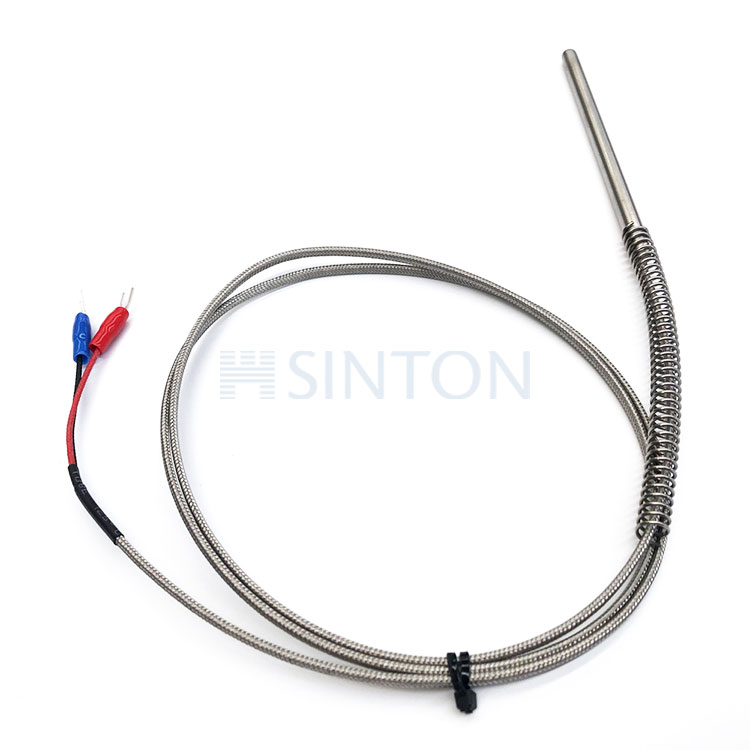

Spring Loaded Thermocouple

Spring-loaded thermocouple is a thermocouple designed to ensure close contact with the object being measured, thereby improving the accuracy of temperature measurement. Its basic structure includes thermocouple sensors,
Thermocouple contacts, protective tubes, spring-loaded mechanisms, mounting components and leads. Due to its structural characteristics, various functions can be realized. The spring-loaded design ensures that the thermocouple maintains constant pressure with the surface of the object being measured, enabling accurate temperature measurement. The protective tube effectively protects the thermocouple wire from physical and chemical damage and extends its service life. The spring-loaded mechanism prevents poor contact due to vibration or thermal expansion, ensuring stable temperature measurement. A variety of installation component designs can adapt to different industrial application needs.

Parameter detail

Product Parameter

Model	Graduation mark	Temperature range	Mounting& Fixing
WRN	K	0-1000°C	1.without Fixing Device 2.Threaded Connector 3.Movable Flange 4.Fixed Flange 5.Elbow Tube Connection 6.Threaded Cone Connection 7.Straight Tube Connection 8.Fixed Threaded Tube Connection 9.Movable Threaded Tube Connection
WRE	E	0-700°C
WRF	J	0-600°C
WRC	T	0-400°C
WRP	S	0-1600°C
WRQ	R	0-1600°C
WRR	B	0-1800°C
WRM	N	0-1100°C
