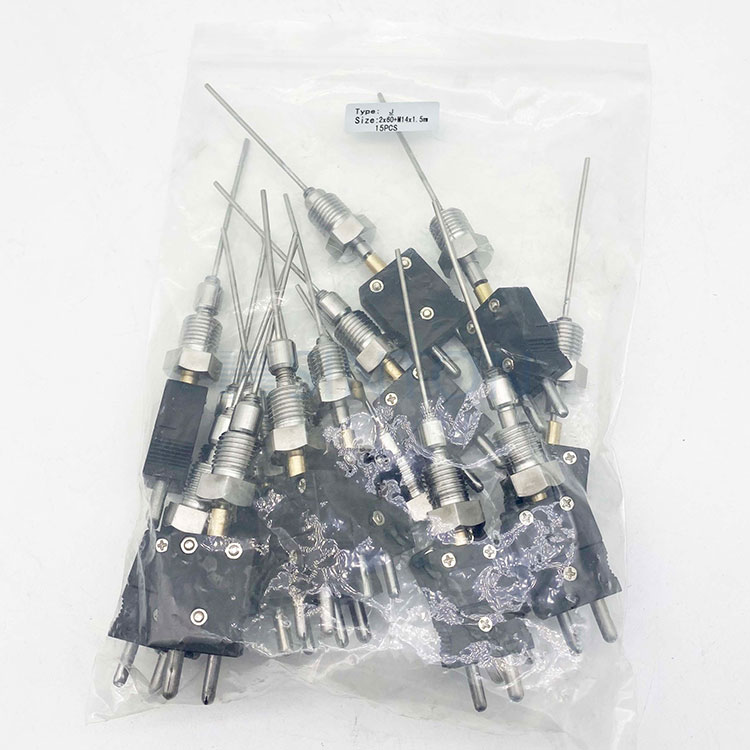

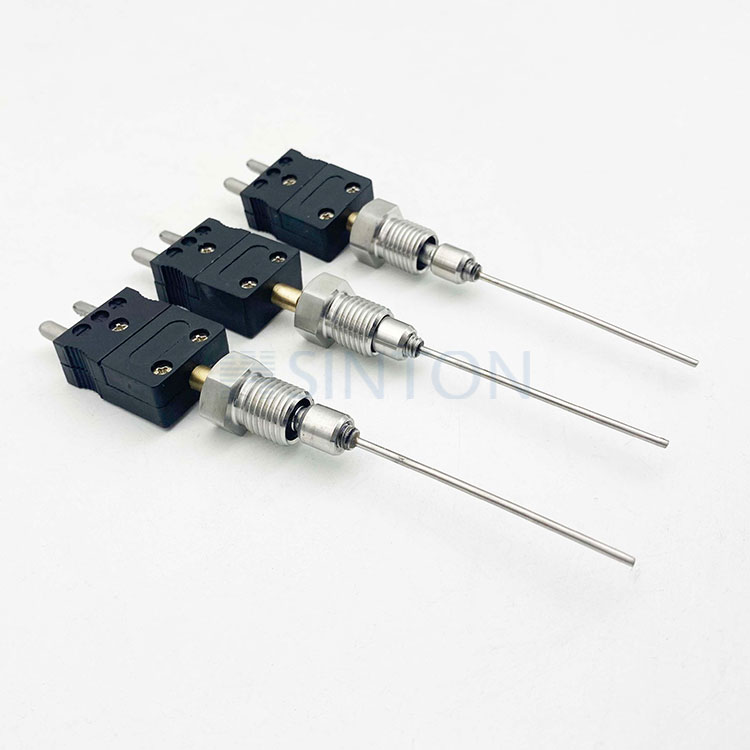

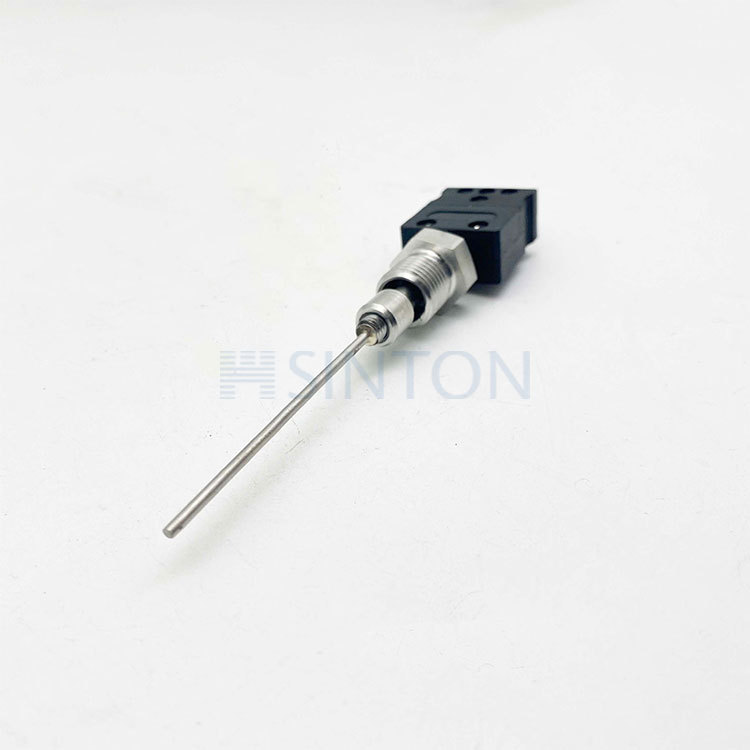

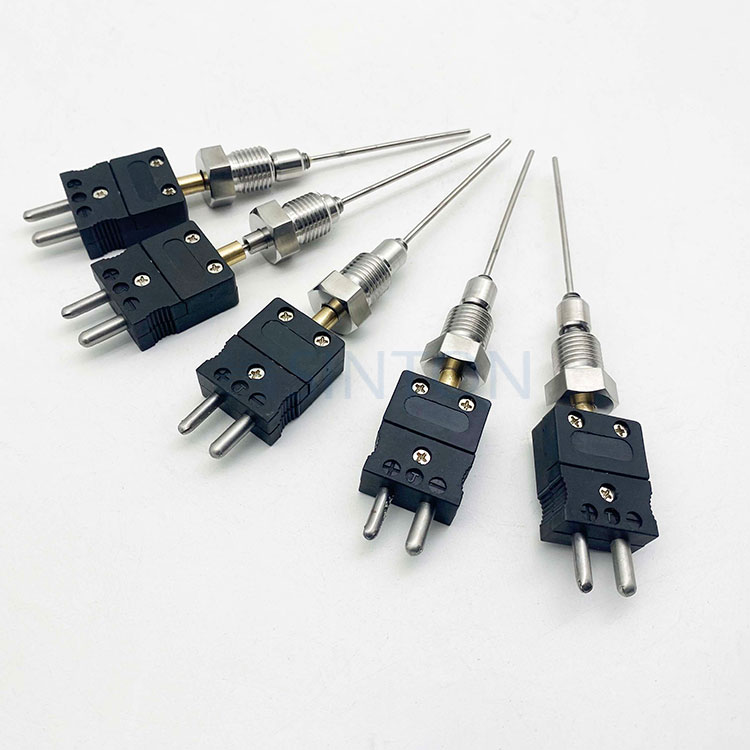

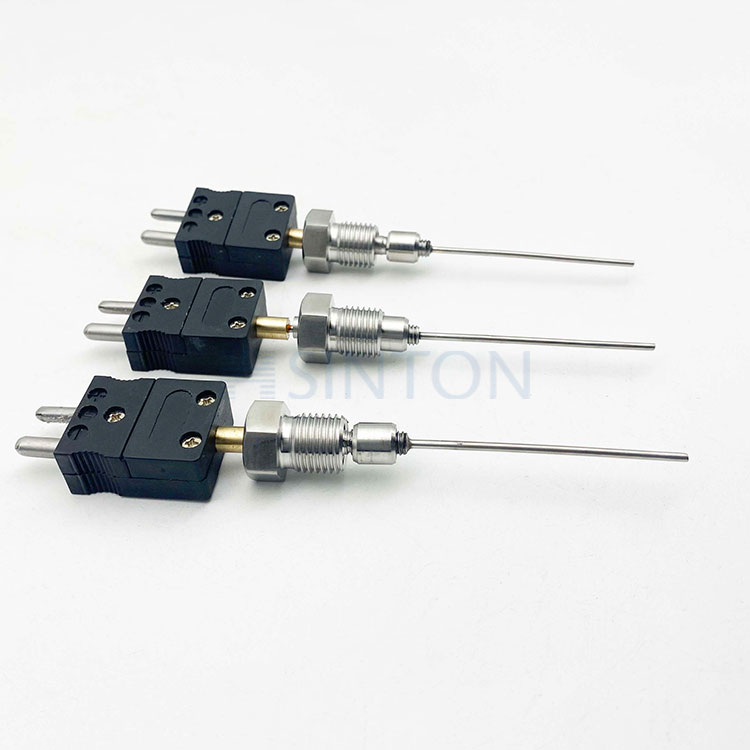

J-Type Thermocouple

The J-type thermocouple uses Seebeck effect to measure temperature. It consists of a loop of iron wire and Constantine alloy wire. Place one end (hot end) where it is being measured and the other end (cold end) where the temperature is known. When there is a temperature difference between the two ends, due to the different characteristics of the two metals, electrons run from the hot end to the cold end to produce a voltage. In a certain temperature range, the voltage and the temperature difference are roughly proportional, and the voltage control relationship table can be measured to know the temperature to be measured.

Temperature Range:

Theoretical cover temperature zone: generally can reach -200 ℃ to 1200℃.

Actual common range: in most cases, 0℃ to 750℃. There are also data showing that -40 ℃ to 750℃.

Special cases: data show that it can work in the range of -210 ° C to 1000 ° C or -210 ° C to 1200 ° C.Accuracy (whichever is greater):

Application :

1. Iron and steel metallurgy industry: used for blast furnace, steelmaking furnace temperature monitoring and continuous casting billet temperature monitoring.

2. Petrochemical industry: It can monitor and control the temperature of reactor and heating furnace, and is also used for pipeline temperature monitoring.

3. Power industry: can monitor the temperature of key parts of boilers, turbines, generators and other equipment.

4. Glass and ceramic industry: temperature control and monitoring of glass furnaces and ceramic kilns can be achieved.

5. Heat treatment industry: temperature control and monitoring during metal quenching, tempering and surface treatment.

Parameter detail

Product Parameter

Model	Graduation mark	Temperature range	Mounting& Fixing
WRN	K	0-1000°C	1.without Fixing Device 2.Threaded Connector 3.Movable Flange 4.Fixed Flange 5.Elbow Tube Connection 6.Threaded Cone Connection 7.Straight Tube Connection 8.Fixed Threaded Tube Connection 9.Movable Threaded Tube Connection
WRE	E	0-700°C
WRF	J	0-600°C
WRC	T	0-400°C
WRP	S	0-1600°C
WRQ	R	0-1600°C
WRR	B	0-1800°C
WRM	N	0-1100°C
