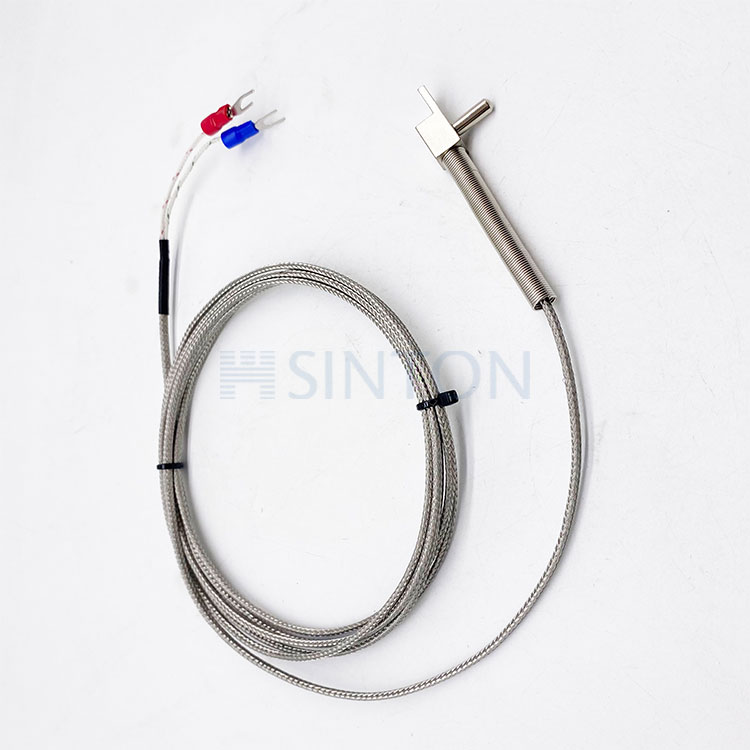

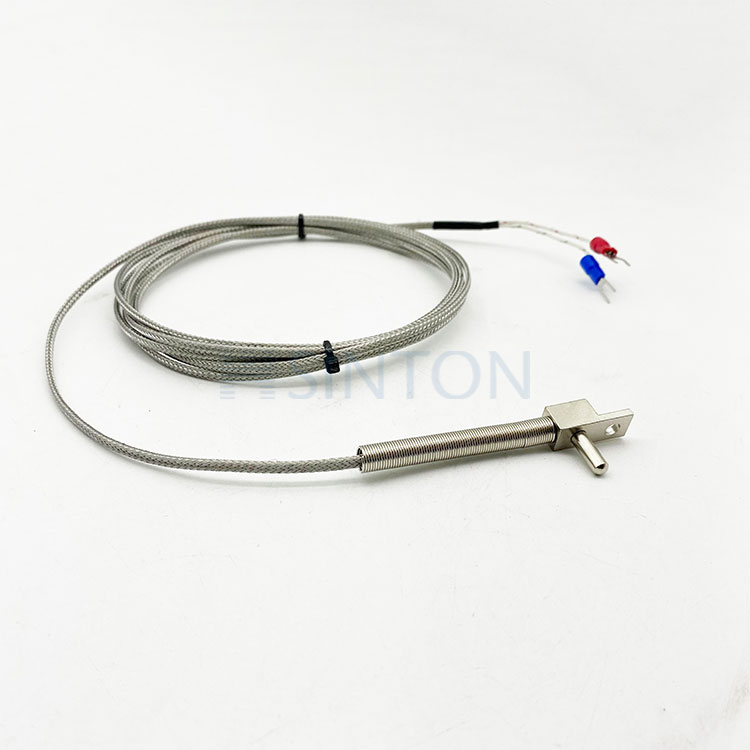

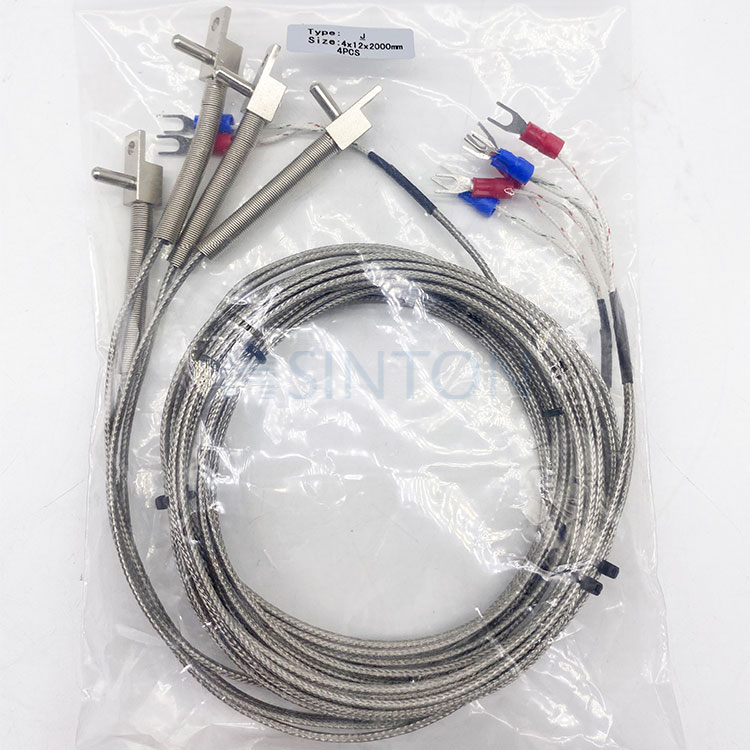

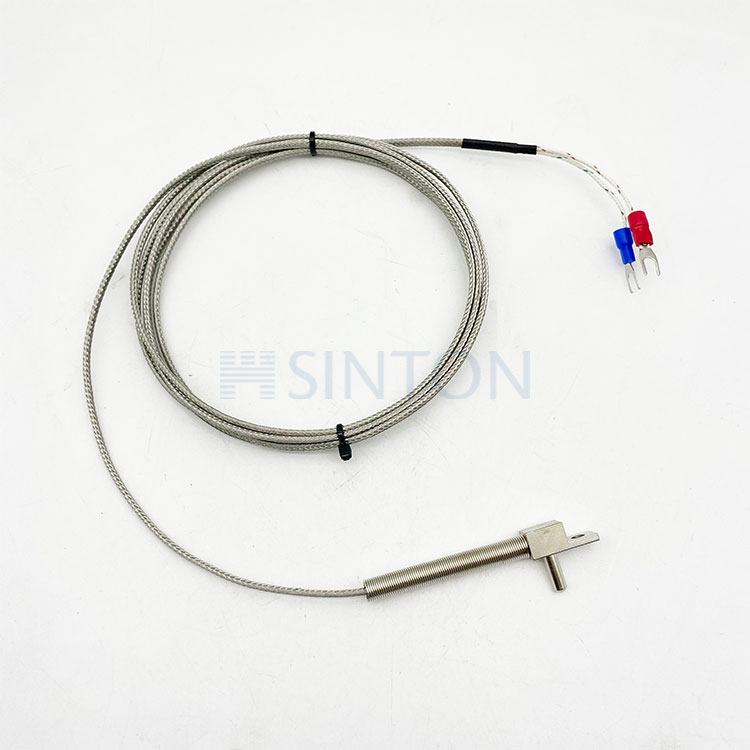

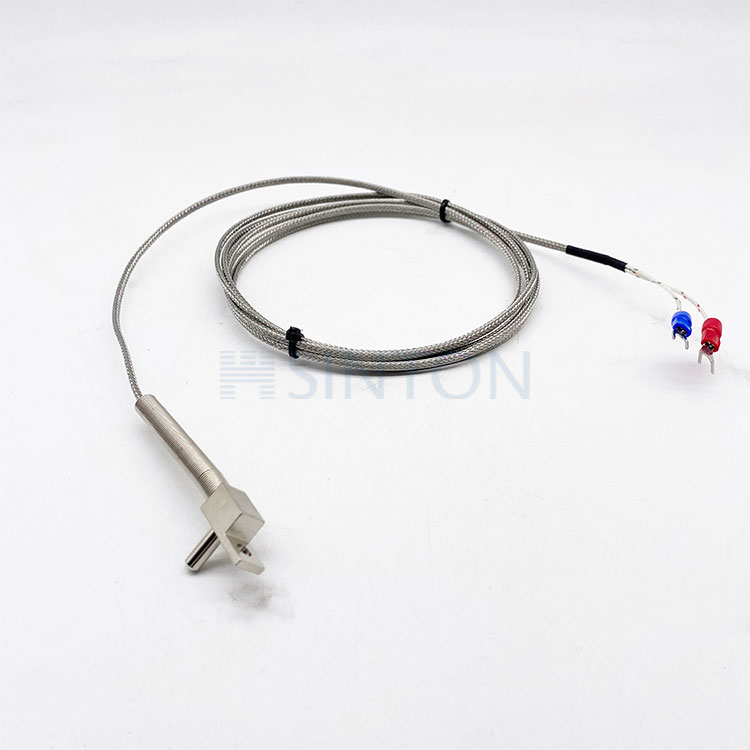

Threaded Cone Connection Thermocouple

The K-type thermocouple sensor with threaded connection is a kind of sensor for measuring temperature. The K-type thermocouple sensor is composed of two different types of metals that are joined together at one end. When the junction of the two metals is heated or cooled, a voltage related to the temperature will be generated. The thermocouple alloy is usually available in the form of wires.

The K-type thermocouple sensor is widely applied in scientific and industrial fields. Its applications include the temperature measurement in kilns, exhausts of gas turbines, diesel engines, and other industrial processes. The K-type thermocouple sensor is also used in households, offices, and enterprises as a temperature sensor in thermostats, and it serves as a flame sensor in the safety devices of gas-powered major appliances.

Model

WRNK,WREK,WRCK,WZPK

Structure

Output signal number :Single

Temperature

0800℃

Material

Nickel chromium-nickel silicon

Connection

Thread Connection

Others

Splash proof, Water proof

Description

Thread and flange connection for option.

Product Parameter

Model Graduation mark Temperature range Mounting& Fixing
WRN K 0-1000°C 1.without Fixing Device
2.Threaded Connector
3.Movable Flange
4.Fixed Flange
5.Elbow Tube Connection
6.Threaded Cone Connection

7.Straight Tube Connection
8.Fixed Threaded Tube Connection
9.Movable Threaded Tube Connection
WRE E 0-700°C
WRF J 0-600°C
WRC T 0-400°C
WRP S 0-1600°C
WRQ R 0-1600°C
WRR B 0-1800°C
WRM N 0-1100°C
