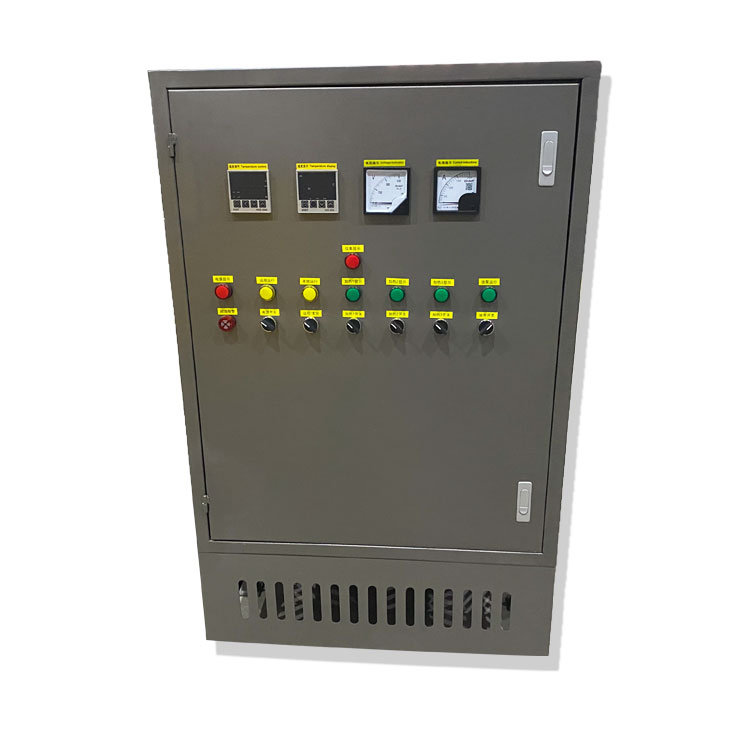

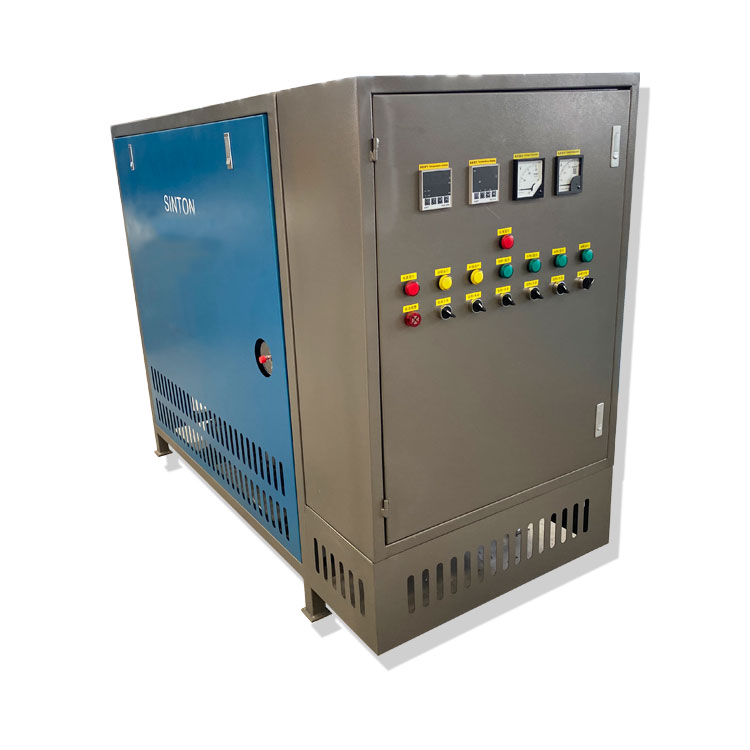

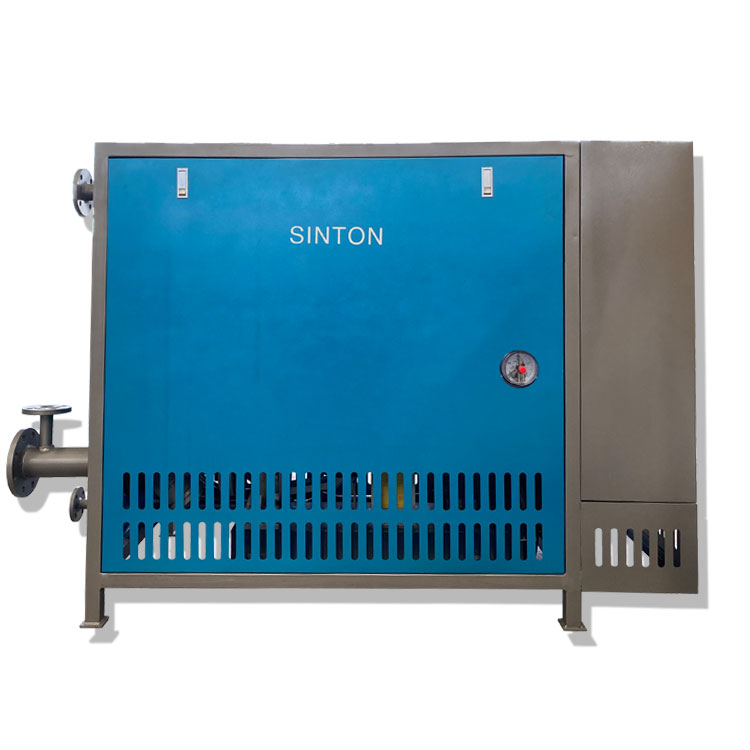

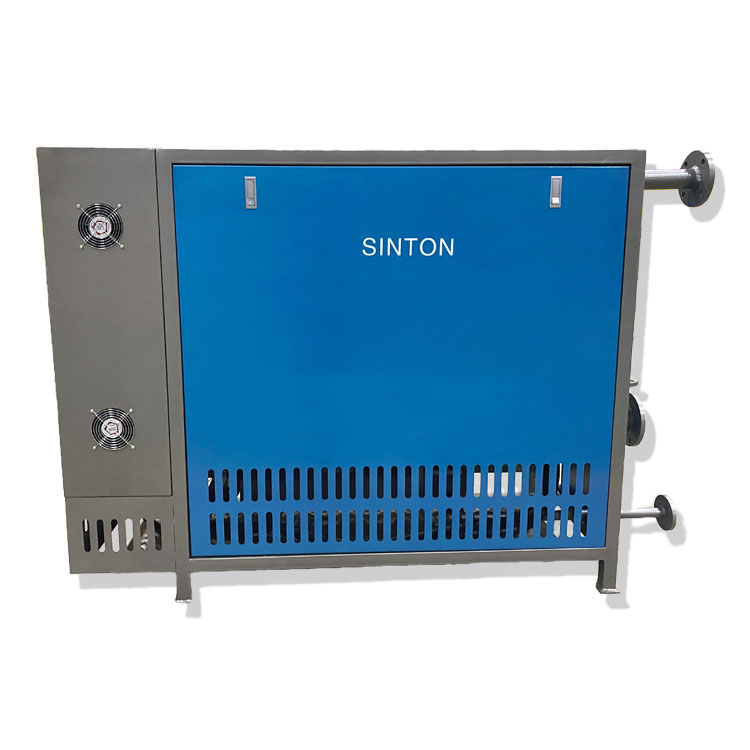

Electric Thermal Oil Circulation Heater

Sinton Circulation Heaters, on the other hand, have smooth integration with precise efficiency and durability at the cutting edge of heating technology. Sinton circulation heaters are designed to heat fluids and gases used in plenty of industries. These showcase the application of engineering at its good and consistently reliable performance.

Sinton Heating comprises high-quality materials and alloys like stainless steel, Incoloy, titanium, and others of high quality to make it withstand even corrosive and more abrasive environments. Fluids or gases circulate through a vessel containing high-efficiency electric heating elements, at the very heart of Sinton Circulation Heaters, is a sophisticated heating mechanism. The direct immersion method allows for a consistent, uniform transfer of heat in rapid succession, hence allowing control of the process temperatures at a very precise level.

Sinton heaters provide the more desirable temperature values for many mediums needed for industrial processing, ranging from oil, gases, and even corrosive chemicals to water. They are designed with great care to cater to the specified temperature limits.

Sinton Circulation Heaters are designed for both standards and conditions, thriving in high-pressure and high-temperature environments. Certified for use even in explosive atmospheres, certification of the products assures the client of safety in using the products.

Introduction

Parameter detail

Features And Benefits

Applications

details

The heat transfer oil furnace is an efficient and energy-saving heating equipment that uses heat transfer oil as the heat transfer medium. It continuously delivers heat to the heating equipment through the forced circulation of the heat transfer oil within the system by means of a circulating pump. This series of products adopts advanced design concepts and manufacturing techniques, featuring precise temperature control, safe and reliable operation, and high thermal efficiency. They are widely used in heat processing processes in various industries such as chemical engineering, petroleum, textile, and food.

Product Parameter

Model	Power (kW)	Voltage	Temp Range	Operating Pressure	Flow Rate	Heating Chamber Material
XTDQ-15	15 kW	380-480V	50-300°C	≤1.0 MPa	0.5-1.2 m³/h	SS304/ CS
XTDQ-30	30 kW	380-480V	50-320°C	≤1.0 MPa	1-2 m³/h	SS304/ CS
XTDQ-60	60 kW	380-480V	50-350°C	≤1.0 MPa	2-4 m³/h	SS304/ CS
XTDQ-120	120 kW	380-480V	50-350°C	≤1.0 MPa	3-6 m³/h	SS304/ CS
Customized	Up to 1000 kW+	380/415/440/480V	50-400°C	1.0-2.5 MPa	Custom	SS316L/ Incoloy

details

1.High Heating Efficiency

Direct immersion electric heating with ≥98% thermal efficiency

Fast temperature rise and stable heat output

2.Precise Temperature Control

Intelligent PID temperature controller

Temperature accuracy ±1–3°C

Optional digital display, PLC control, and remote monitoring

3.Safe & Reliable Operation

Over-temperature protection

Flow/pressure switches to prevent dry heating

Thermal overload, leakage protection

High-quality heat transfer oil system design to ensure long service life

4.Durable Construction

Stainless steel or carbon steel chamber available

Industrial-grade heating elements (Incoloy 800/840 optional)

Corrosion-, oxidation-, and high-temperature-resistant

5.Easy Installation & Maintenance

Skid-mounted or integrated design

Flange connection for quick installation

Simple structure with minimal maintenance needed

details

1.Chemical & Petrochemical

Reactors

Distillation units

Polymerization processes

Oil refining

2.Food & Beverage

Frying systems

Heat exchangers

Edible oil processing

Chocolate and sugar melting

3.Plastics & Rubber Industry

Extruders

Injection molding machines

Hot-press machinery

4.Oil & Gas

Pipeline heating

Tank heating

Offshore platforms

5.Pharmaceutical Industry

Mixing vessels

Jacketed kettles

Temperature-sensitive processing

6.Textile & Dyeing

Dyeing machines

Thermal setting equipment

7.General Industrial Heating

Boilers

Drying systems

Asphalt heating

Bitumen plants
