XTFD-50 Electric Industrial Hot Air Duct Heater with Lifting Platform Custom

Home / Browse Products / Air Duct Heater / XTFD-50 Electric Industrial Hot Air Duct Heater with Lifting Platform
XTFD-50 Electric Industrial Hot Air Duct Heater with Lifting Platform

XTFD-50 Electric Industrial Hot Air Duct Heater with Lifting Platform

Sinton, a proxy designation for a wide-ranging consortium of enterprises, encompassing those focused on thermal solutions, measurement, and control technologies, presents an extensive array of products and services. These encompass sophisticated heating elements and systems engineered for accurate temperature regulation to technical support and bespoke engineering solutions intended for the enhancement of industrial processes.

The focus is placed on the pivotal role played by these Sinton products in the efficient functionality of heating systems within industrial environments. They deliver localized, precise heating essential for various applications, including, but not limited to, the warming of metal components, process heating, and the temperature regulation of crucial parts in manufacturing and production lines.

Sinton's contributions stand out particularly in the realms of:

·Customizability: Proposing solutions that are adaptable to the specific requisites of an application, guaranteeing good performance.
·Efficiency: Accentuating products crafted for heightened efficiency, which can precipitate considerable energy savings and diminished operational expenses.
·Reliability: Guaranteeing the robustness and longevity of heating systems, pivotal for the sustenance of uninterrupted industrial processes. Technical Support: Supplying exhaustive support and resources, like technical libraries, CAD drawings, and engineering tools, to aid in the formulation and execution of efficacious heating solutions.

Introduction

Parameter detail

Features And Benefits

Applications

details

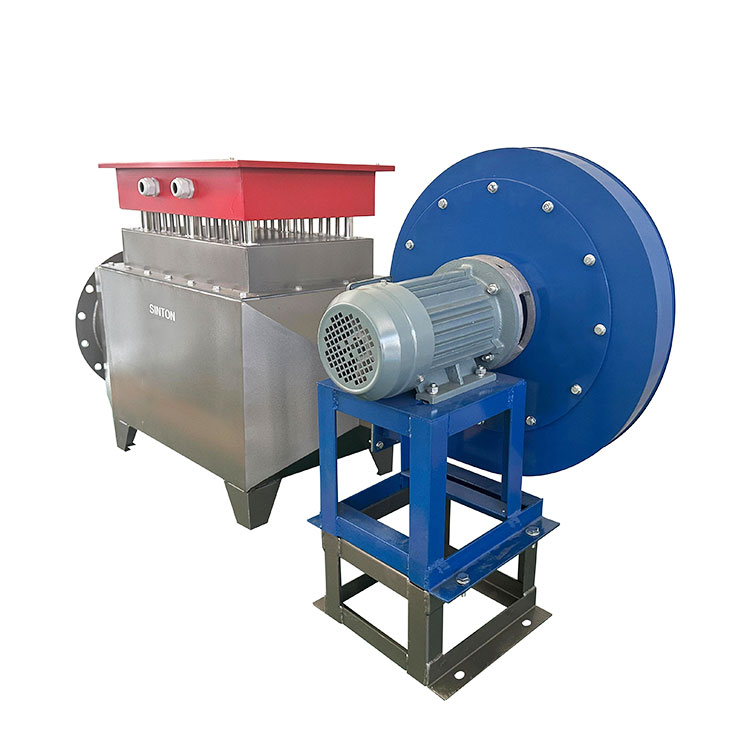

XTFD-50 Electric Industrial Hot Air Duct Heater with Lifting Platform is an efficient, safe and convenient thermal energy equipment specially designed for industrial environments. Using advanced electric heating technology, it can quickly heat up and maintain the set temperature stably, providing a continuous and stable heat source. Its core components are made of high-quality materials to ensure excellent durability and reliability. At the same time, its high heat conversion efficiency results in lower energy consumption, saving energy costs for enterprises.
The heater is equipped with a lifting platform to facilitate users to adjust the height and position of the heater according to actual needs to adapt to different working environments and process requirements. The lifting platform has a reasonable design, a solid structure, and a safety locking mechanism to ensure that the equipment remains stable during operation and avoids accidental movement or tipping. Users can easily install and move the heater, greatly improving work efficiency.
XTFD-50 Electric Industrial Hot Air Duct Heater with Lifting Platform is suitable for various industrial application scenarios that require hot air heating or temperature control. It is widely used in industrial heating, drying, drying, heat treatment and other fields, and can meet the needs of different industries. The heater has stable heating performance and can quickly provide a stable heat source to ensure the smooth progress of the production process.

Product Parameter

Model Power Inner Chamber size Diameter of air outlet
KW MM MM
FD-10 10 300*300*300 DN100
FD-20 20 500*300*300 DN200
FD-30 30 400*400*400 DN300
FD-40 40 500*400*400 DN300
FD-50 50 600*400*400 DN350
FD-60 60 700*400*400 DN350
FD-80 80 700*400*500 DN350
FD-100 100 900*400*500 DN350
FD-120 120 1000*400*500 DN350
FD-150 150 700*750*500 DN400
FD-180 180 800*750*500 DN400
FD-240 240 1000*750*600 DN500
FD-300 300 1200*750*600 DN500
FD-360 360 1000*800*900 DN500
FD-420 420 1200*800*900 DN500
FD-480 480 1400*800*900 DN500
FD-600 600 1600*1000*1000 DN600
FD-800 800 1800*1000*1000 DN600
FD-1000 1000 2000*1000*1000 DN600

details

details

The versatility of Sinton air duct heaters allows for their application across multiple industrial uses, notably:



·Heating processes within manufacturing setups

·Air pre-heating in HVAC systems for sizable industrial edifices

·Drying and curing operations in the pharmaceutical, food, and painting sectors

·Chemical processing that necessitates exact temperature regulation

Shipment

provides customers with quality and safe transportation.

air duct heater package

Heater equipements LCL shipment

heater packed on steel pallet

Immersion heater packing1

LCL loading 3

LCL shipment loading 2

LCL shipment

plywood package 2
