Heating Equipment
Sinton, a proxy designation for a wide-ranging consortium of enterprises, encompassing those focused on thermal solutions, measurement, and control technologies, presents an extensive array of products and services. These encompass sophisticated heating elements and systems engineered for accurate temperature regulation to technical support and bespoke engineering solutions intended for the enhancement of industrial processes.
The focus is placed on the pivotal role played by these Sinton products in the efficient functionality of heating systems within industrial environments. They deliver localized, precise heating essential for various applications, including, but not limited to, the warming of metal components, process heating, and the temperature regulation of crucial parts in manufacturing and production lines.
Sinton's contributions stand out particularly in the realms of:
·Customizability: Proposing solutions that are adaptable to the specific requisites of an application, guaranteeing good performance.
·Efficiency: Accentuating products crafted for heightened efficiency, which can precipitate considerable energy savings and diminished operational expenses.
·Reliability: Guaranteeing the robustness and longevity of heating systems, pivotal for the sustenance of uninterrupted industrial processes. Technical Support: Supplying exhaustive support and resources, like technical libraries, CAD drawings, and engineering tools, to aid in the formulation and execution of efficacious heating solutions.
details

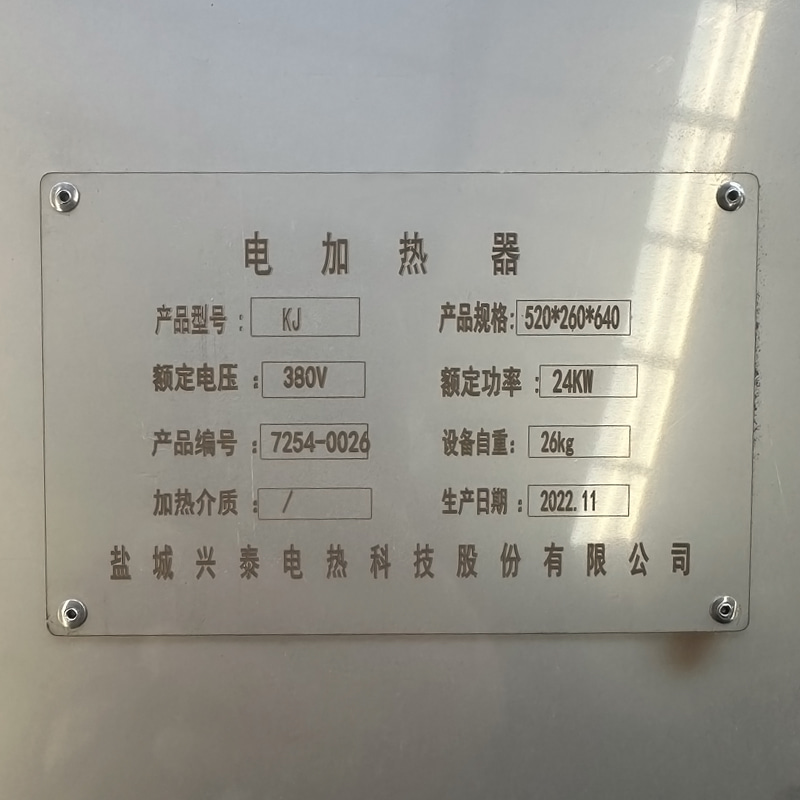

KJ-24 Electric Frame Air Heater Duct Heater for Air-heating Systems is a high-efficiency heating equipment specially designed for air heating systems. The KJ-24 heater uses high-efficiency electric heating elements, which can quickly convert electrical energy into heat energy and provide high-temperature heating effects. Whether in cold winter or in applications requiring rapid heating, KJ-24 can meet users' heating needs. The electric heating element it uses has high durability and stability, and can run for a long time without damage, which greatly improves the service life and reliability.

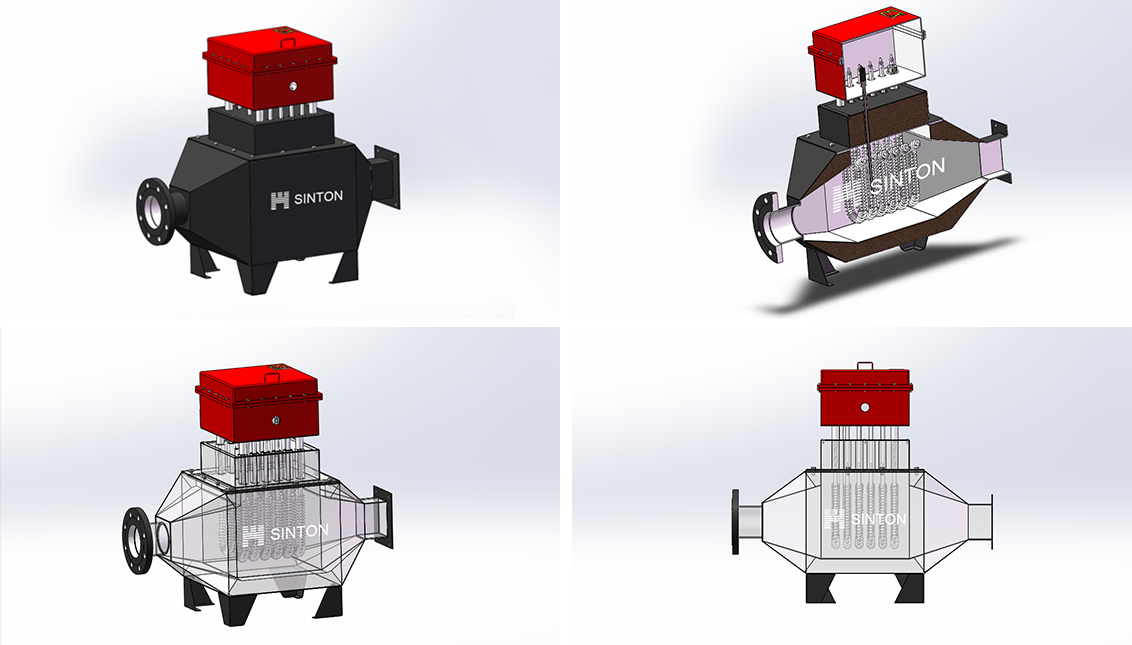

The KJ-24 heater adopts a frame design and can be easily installed in the ventilation duct of the air heating system. Whether it is a new heating system or an existing system renovation, KJ-24 can flexibly adapt to various installation scenarios and provide convenient installation and maintenance. The high-quality materials and precision processing technology used ensure that the heater has a stable structure and can withstand harsh working environments and high temperatures and pressures.
Product Parameter
| Model | Power | Inner Chamber size | Diameter of air outlet |
| KW | MM | MM | |
| FD-10 | 10 | 300*300*300 | DN100 |
| FD-20 | 20 | 500*300*300 | DN200 |
| FD-30 | 30 | 400*400*400 | DN300 |
| FD-40 | 40 | 500*400*400 | DN300 |
| FD-50 | 50 | 600*400*400 | DN350 |
| FD-60 | 60 | 700*400*400 | DN350 |
| FD-80 | 80 | 700*400*500 | DN350 |
| FD-100 | 100 | 900*400*500 | DN350 |
| FD-120 | 120 | 1000*400*500 | DN350 |
| FD-150 | 150 | 700*750*500 | DN400 |
| FD-180 | 180 | 800*750*500 | DN400 |
| FD-240 | 240 | 1000*750*600 | DN500 |
| FD-300 | 300 | 1200*750*600 | DN500 |
| FD-360 | 360 | 1000*800*900 | DN500 |
| FD-420 | 420 | 1200*800*900 | DN500 |
| FD-480 | 480 | 1400*800*900 | DN500 |
| FD-600 | 600 | 1600*1000*1000 | DN600 |
| FD-800 | 800 | 1800*1000*1000 | DN600 |
| FD-1000 | 1000 | 2000*1000*1000 | DN600 |
details

details
The versatility of Sinton air duct heaters allows for their application across multiple industrial uses, notably:
·Heating processes within manufacturing setups
·Air pre-heating in HVAC systems for sizable industrial edifices
·Drying and curing operations in the pharmaceutical, food, and painting sectors
·Chemical processing that necessitates exact temperature regulation
