FD-50 380V 50KW Industrial Electric Air Circulation Duct Heater with Blower Custom

Home / Browse Products / Air Duct Heater / FD-50 380V 50KW Industrial Electric Air Circulation Duct Heater with Blower
FD-50 380V 50KW Industrial Electric Air Circulation Duct Heater with Blower

FD-50 380V 50KW Industrial Electric Air Circulation Duct Heater with Blower

Sinton, a proxy designation for a wide-ranging consortium of enterprises, encompassing those focused on thermal solutions, measurement, and control technologies, presents an extensive array of products and services. These encompass sophisticated heating elements and systems engineered for accurate temperature regulation to technical support and bespoke engineering solutions intended for the enhancement of industrial processes.

The focus is placed on the pivotal role played by these Sinton products in the efficient functionality of heating systems within industrial environments. They deliver localized, precise heating essential for various applications, including, but not limited to, the warming of metal components, process heating, and the temperature regulation of crucial parts in manufacturing and production lines.

Sinton's contributions stand out particularly in the realms of:

·Customizability: Proposing solutions that are adaptable to the specific requisites of an application, guaranteeing good performance.
·Efficiency: Accentuating products crafted for heightened efficiency, which can precipitate considerable energy savings and diminished operational expenses.
·Reliability: Guaranteeing the robustness and longevity of heating systems, pivotal for the sustenance of uninterrupted industrial processes. Technical Support: Supplying exhaustive support and resources, like technical libraries, CAD drawings, and engineering tools, to aid in the formulation and execution of efficacious heating solutions.

Introduction

Parameter detail

Features And Benefits

Applications

details

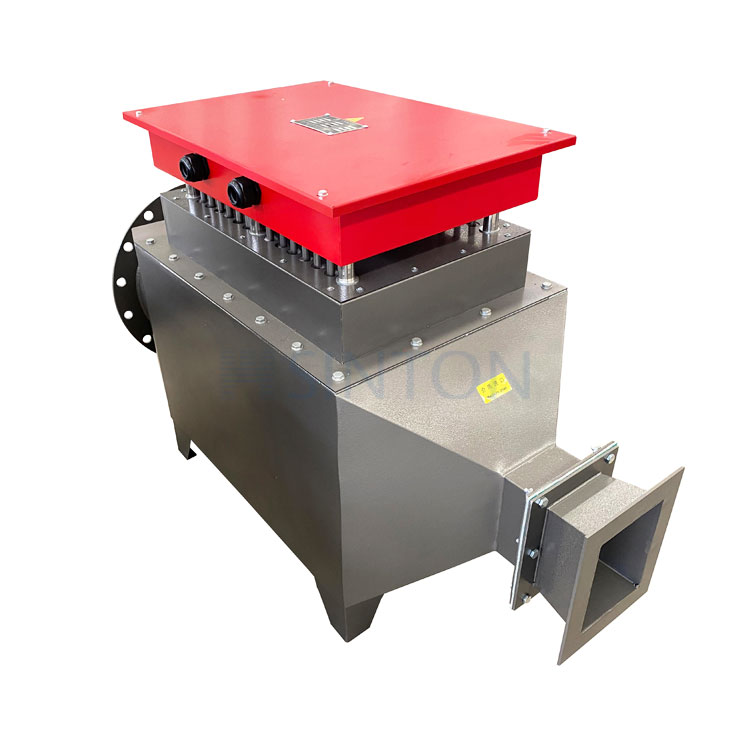

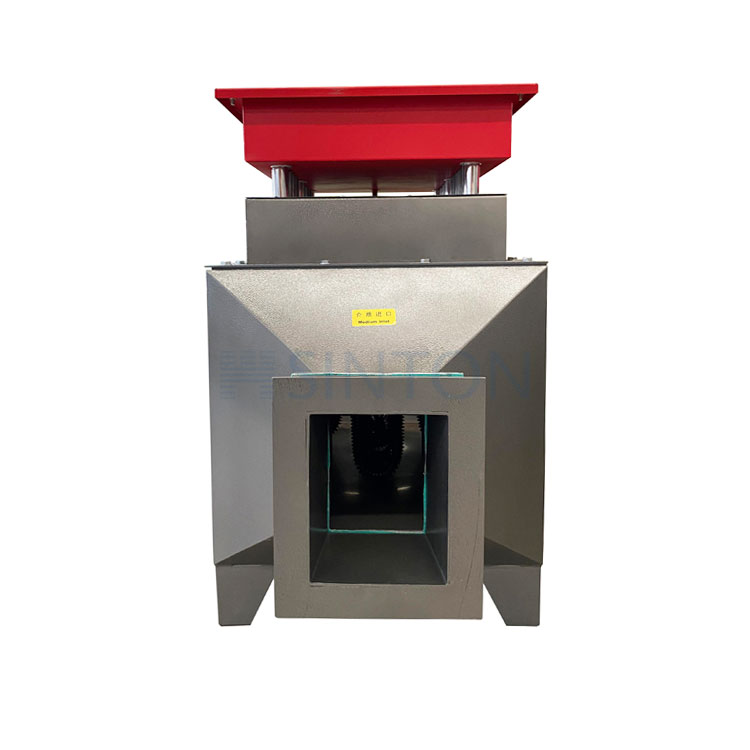

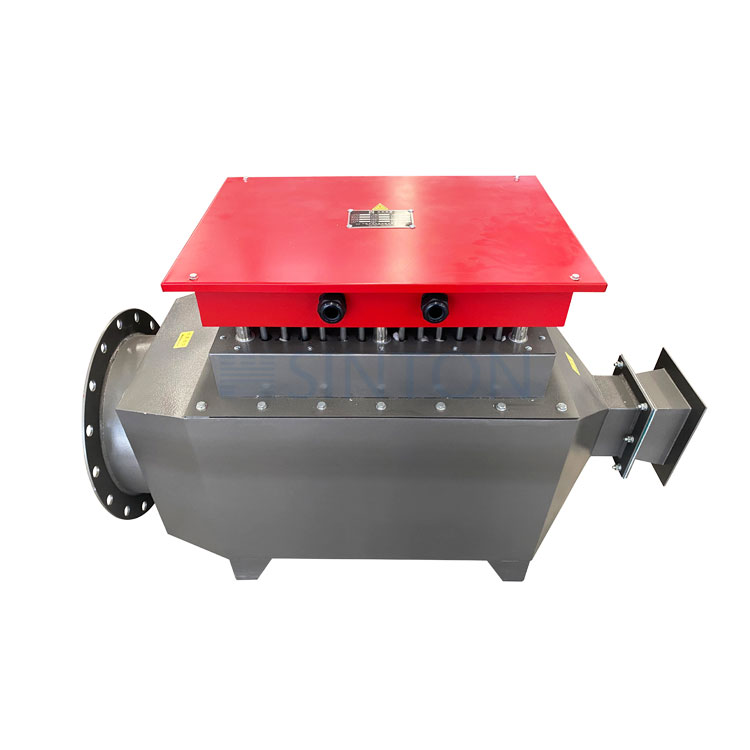

FD-50 380V 50KW Industrial Electric Air Circulation Duct Heater with Blower is a heater equipment specially designed for industrial environments. It integrates efficient heating and air circulation functions. It is widely used for rapid heating of large areas in factories, warehouses, workshops, etc. place.
This heater uses advanced electric heating technology and has a powerful 50KW heating power, which can quickly raise the ambient temperature to the required level in a short time. Its rated voltage is 380V, and its stable and reliable power supply ensures that the heater can operate stably for a long time and maximizes heating efficiency.
In terms of product design, the FD-50 380V 50KW Industrial Electric Air Circulation Duct Heater with Blower uses high-efficiency fans and carefully designed air circulation ducts to allow hot air to quickly and evenly spread throughout the space. At the same time, the heater is also equipped with an intelligent temperature control system, which can automatically adjust the heating power according to the ambient temperature, which not only ensures the heating effect, but also effectively reduces energy consumption and saves energy to the greatest extent.
In addition, this heater also has excellent safety performance. It adopts multiple safety protection measures, including overheating protection, overcurrent protection, etc., to effectively prevent safety accidents caused by equipment failure or improper operation. The shell of the heater is made of fire-proof and high-temperature-resistant materials, which can maintain good stability and safety even in high-temperature environments, providing users with reliable protection.

Product Parameter

Model Power Inner Chamber size Diameter of air outlet
KW MM MM
FD-10 10 300*300*300 DN100
FD-20 20 500*300*300 DN200
FD-30 30 400*400*400 DN300
FD-40 40 500*400*400 DN300
FD-50 50 600*400*400 DN350
FD-60 60 700*400*400 DN350
FD-80 80 700*400*500 DN350
FD-100 100 900*400*500 DN350
FD-120 120 1000*400*500 DN350
FD-150 150 700*750*500 DN400
FD-180 180 800*750*500 DN400
FD-240 240 1000*750*600 DN500
FD-300 300 1200*750*600 DN500
FD-360 360 1000*800*900 DN500
FD-420 420 1200*800*900 DN500
FD-480 480 1400*800*900 DN500
FD-600 600 1600*1000*1000 DN600
FD-800 800 1800*1000*1000 DN600
FD-1000 1000 2000*1000*1000 DN600

details

details

The versatility of Sinton air duct heaters allows for their application across multiple industrial uses, notably:



·Heating processes within manufacturing setups

·Air pre-heating in HVAC systems for sizable industrial edifices

·Drying and curing operations in the pharmaceutical, food, and painting sectors

·Chemical processing that necessitates exact temperature regulation

Shipment

provides customers with quality and safe transportation.

air duct heater package

Heater equipements LCL shipment

heater packed on steel pallet

Immersion heater packing1

LCL loading 3

LCL shipment loading 2

LCL shipment

plywood package 2
