Industrial Electric Fast Heating Dual Pipeline Liquid Heater

Sinton Pipeline Heaters are engineered with precision for efficient fitting within standard 2 or 3-inch schedule 40 NPS pipes.

These are ideally suitable for tanks requiring very low watt densities and are suitable for waxes, thick liquids like tar and molasses, and corrosive mediums. All things considered, the heating elements of these heaters should not come into direct contact with the medium, hence making them easy to maintain and replaceable even without the tank being drained.

They are suitable for high heat environments and good for heavy bunker fuel oils, corrosive liquids, and high viscosity liquids.

details

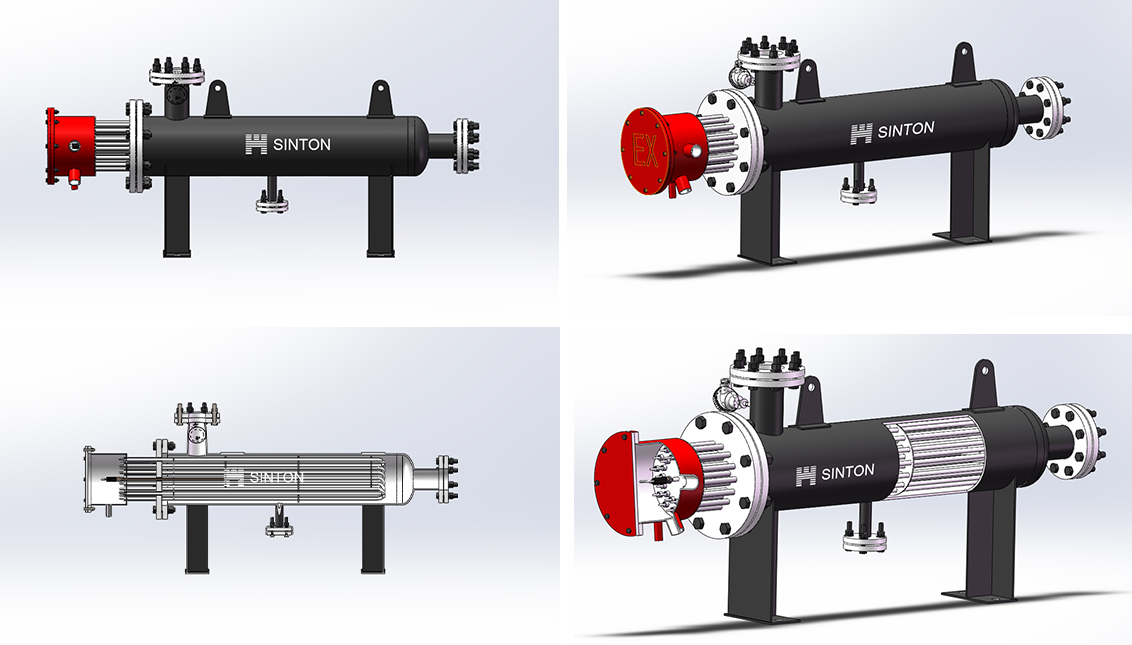

Industrial Electric Fast Heating Dual Pipeline Liquid Heater is a high-efficiency heating equipment specially designed for the industrial field. Using advanced electric heating technology, it can quickly heat liquid to the required temperature to meet the heat demand in industrial production processes. The heater is equipped with high-efficiency electric heating elements, which can quickly heat a large amount of liquid to the required temperature, thereby greatly improving production efficiency. The dual-pipe design enables the heater to achieve circular flow of liquid, improving heating uniformity and thermal efficiency.
The heater adopts an advanced temperature control system, which can monitor the liquid temperature in real time and adjust it as needed to ensure heating accuracy. At the same time, it is equipped with multiple safety protection functions, such as overheating protection, leakage protection, etc., to ensure the safety of the equipment during operation.
Industrial Electric Fast Heating Dual Pipeline Liquid Heater is widely used in industrial production fields, such as chemical, pharmaceutical, food processing and other industries. Its rapid heating, high efficiency and energy saving features are favored by the majority of users.

Product Parameter

Specifications Power Pipeline heater(liquid) Pipeline heater(gas)
KW Heating room size(mm) Connection diameter(mm) Heating room size(mm) Connection diameter(mm)
XTGD-5 5 DN80*500 DN25 DN100*600 DN25
XTGD-10 10 DN80*700 DN32 DN100*700 DN32
XTGD-15 15 DN125*700 DN32 DN125*700 DN32
XTGD-20 20 DN150*800 DN40 DN150*900 DN40
XTGD-30 30 DN150*800 DN40 DN150*1000 DN40
XTGD-40 40 DN200*1000 DN50 DN200*1200 DN50
XTGD-50 50 DN200*1000 DN50 DN200*1200 DN50
XTGD-60 60 DN200*1200 DN50 DN250*1300 DN80
XTGD-80 80 DN250*1400 DN80 DN250*1500 DN80
XTGD-100 100 DN250*1600 DN80 DN300*1600 DN100
XTGD-120 120 DN250*1600 DN80 DN300*1600 DN100
XTGD-150 150 DN300*1600 DN100 DN350*1600 DN125
XTGD-180 180 DN300*1600 DN100 DN350*1800 DN125
XTGD-200 200 DN300*1800 DN100 DN400*1800 DN150
XTGD-240 240 DN350*1800 DN125 2*DN300*1600 DN150
XTGD-280 280 DN350*1800 DN125 2*DN350*1600 DN150
XTGD-300 300 DN400*1800 DN150 2*DN350*1600 DN150
XTGD-360 360 DN400*1800 DN150 2*DN350*1800 DN150
XTGD-400 400 2*DN300*1800 DN150 2*DN400*1800 DN150
XTGD-450 450 2*DN350*1800 DN150 2*DN400*1800 DN150
XTGD-500 500 2*DN350*1800 DN150 2*DN450*1800 DN150
XTGD-600 600 2*DN400*1800 DN150 2*DN450*1800 DN150
XTGD-700 700 2*DN400*1800 DN150 2*DN500*1800 DN150
XTGD-800 800 4*DN300*1800 DN150 4*DN400*1800 DN150
XTGD-900 900 4*DN350*1800 DN150 4*DN400*1800 DN150
XTGD-1000 1000 4*DN350*1800 DN150 4*DN450*1800 DN150

details

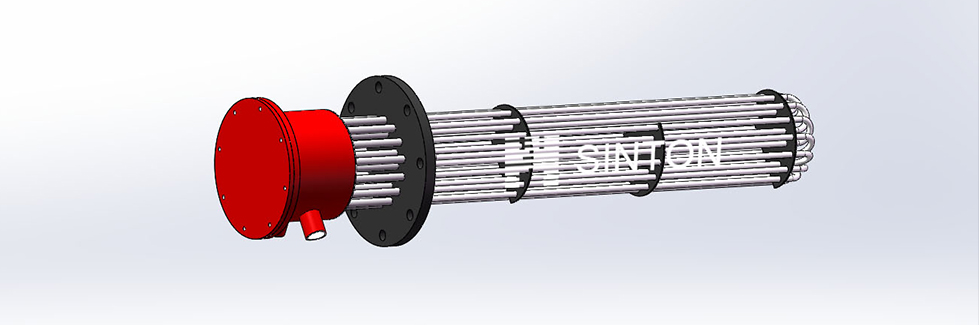

Sinton Pipeline Heaters short heat-up time, replacement, or easy set of features and benefits that include: more economical open coil elements to provide efficient heat transfer.

•Ceramic that has the ability to bear high thermal heat is mechanical support for coils.

• Compatibility of thermocouples for temperature regulation

• Use of steel pipes for their thermal and corrosion resisting property.

Sinton Pipeline Heaters are efficient with inline heaters (circjson heaters) directly immersed in the liquid to transfer electric power into heating the substance or element effectively. This is much more efficient than other sources of heating, losing the potential energy. Inline heaters are easy to install, maintain, and also can be transferred between applications; therefore, inline heaters are versatile in many industries. Pipeline Heaters - Process Skids: For applications at sites

details

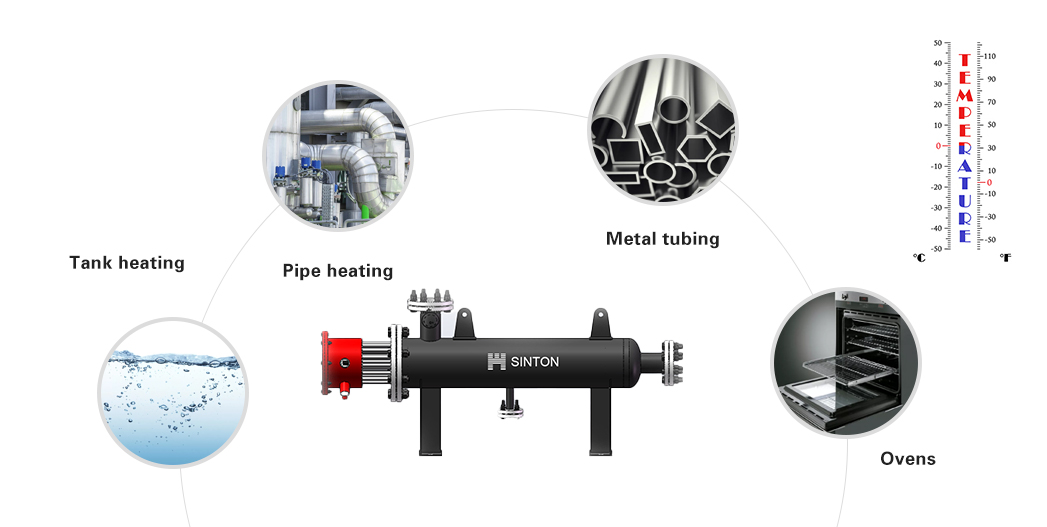

The Sinton Pipeline Heaters are so versatile in their applications that they can be used for:



They are designed for oil, gas, food processing, and power production industries to provide efficient solutions in heating through a wide spectrum of applications.
