In industrial heating systems, the correct wiring method of electric heating elements plays a critical role in equipment performance, energy efficiency, and operational safety.

When multiple tubular heating elements are installed together, engineers need to select the proper electrical connection method according to the power supply, voltage requirements, heating capacity, and application conditions.

The two most common wiring methods for industrial electric heating elements are:

• Parallel Connection
• Series Connection

Understanding the difference between these two connection methods helps engineers design safer, more efficient, and more reliable heating systems.

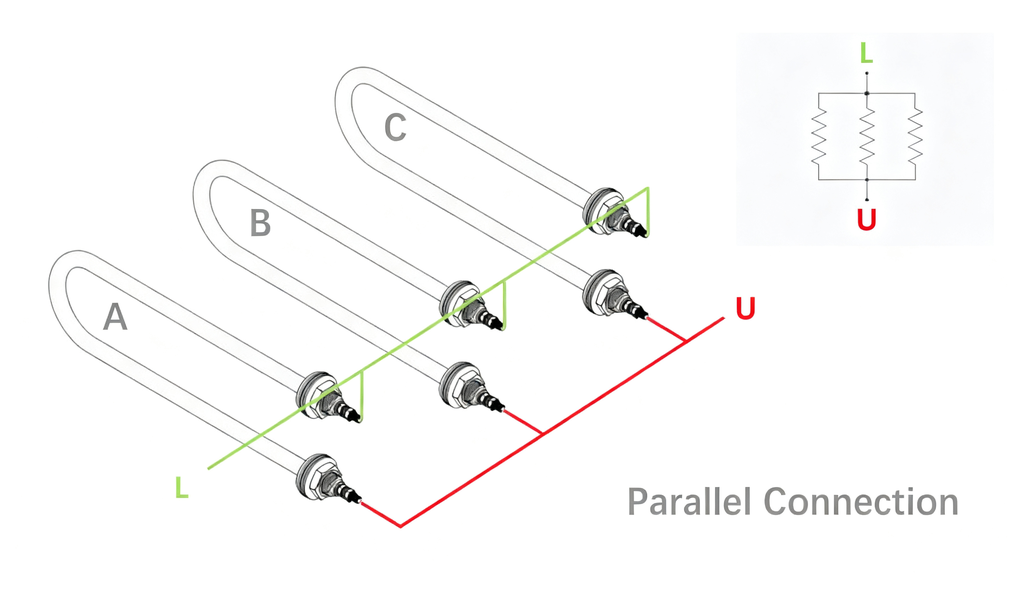

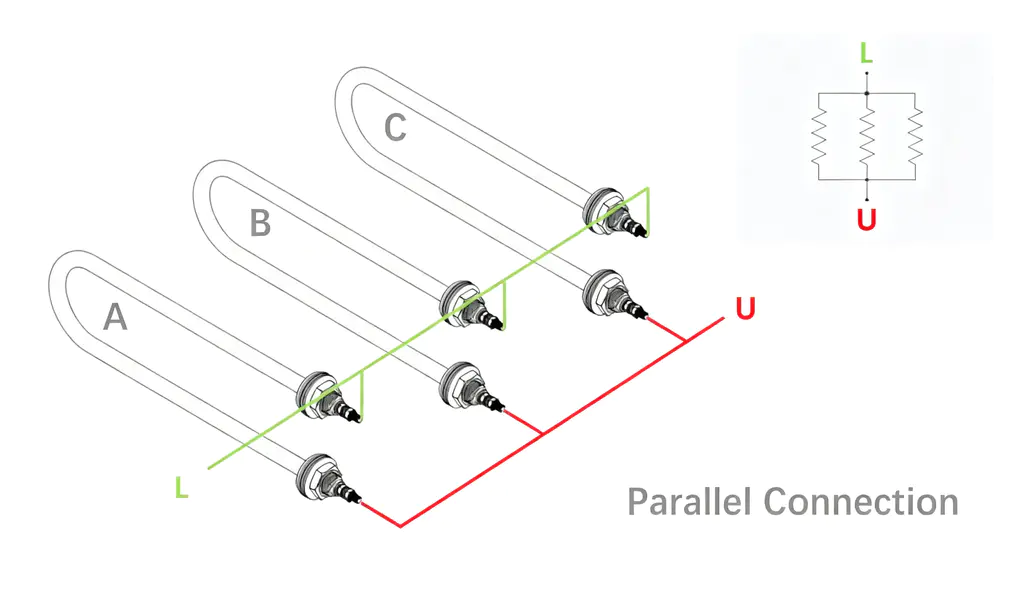

What Is a Parallel Connection for Electric Heating Elements?

A parallel connection means that multiple heating elements are connected across the same two power supply points.

In this configuration, each heating element receives the same voltage from the power source.

Simply speaking:

Each heating element operates independently under the rated voltage.

For a parallel circuit:

• The voltage across each heating element is the same;
• The current is divided among different heating branches;
• Each heater can work independently;
• The total heating power is the sum of all individual heating elements.

Example:

Three electric heating tubes are rated at:

• Voltage: 220V
• Power: 1000W each

With a parallel connection:

Total power:  1000W × 3 = 3000W

Each heating element still operates at:

• 220V
• 1000W

Advantages of Parallel Connection

1. Higher Heating Power Output

Since every heating element receives the full rated voltage, each heater can provide its maximum heating capacity.

Parallel connection is widely used in:

• Industrial water heaters
• Oil heating systems
• Immersion heaters
• Air duct heaters
• Pipeline heating systems
• Chemical heating equipment

2. Better System Reliability

One of the biggest advantages of parallel wiring is that each heating element works independently.

If one heating tube fails, the remaining elements can continue operating.

This makes parallel connection especially suitable for industrial equipment requiring continuous operation, such as:

• Petroleum processing systems
• Chemical production lines
• Industrial boilers
• Thermal oil heating systems

3. Flexible Power Control

Parallel-connected heating elements allow easier power adjustment.

By switching individual heating elements on or off, users can achieve multi-stage temperature and power control.

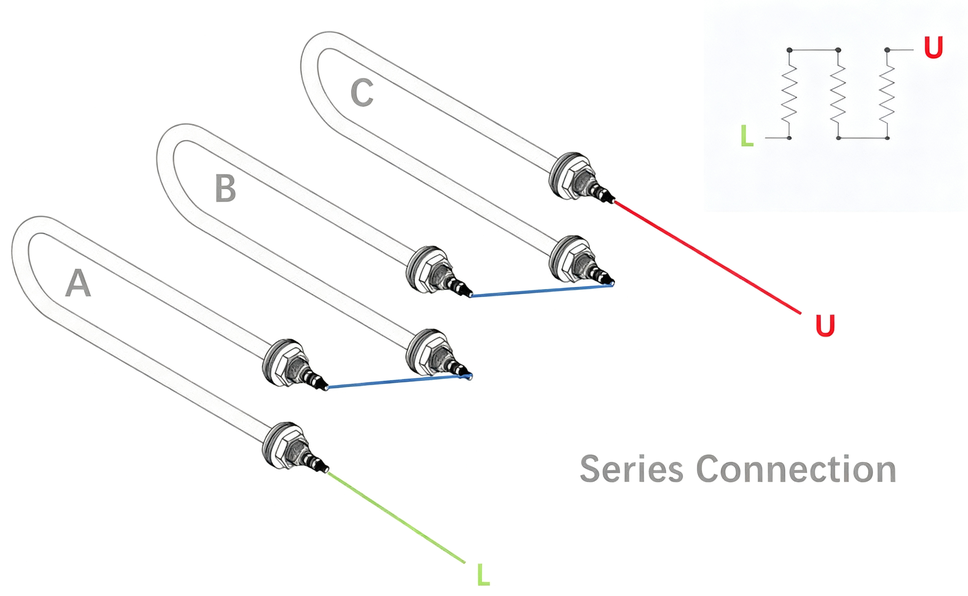

What Is a Series Connection for Electric Heating Elements?

A series connection means multiple heating elements are connected end-to-end to form a single electrical path.

The same current flows through every heating element in the circuit.

In a series connection:

• The current is identical through all heaters;
• The supply voltage is divided between heating elements;
• Total resistance equals the sum of each element's resistance.

Example:

Two heating elements rated at:

• 220V each

are connected in series.

The total voltage requirement becomes approximately:  440V

Each heating element receives around:  220V

Advantages of Series Connection

1. Suitable for High Voltage Applications

Series connection can be used when the available power supply voltage is higher than the rated voltage of a single heating element.

For example:

Two 230V heating elements connected in series can operate in a:

460V electrical system

2. Reduced Voltage Stress on Individual Elements

Because the supply voltage is distributed among multiple heating elements, each component experiences a lower electrical load.

Series connection can be applied in:

• Special industrial furnaces
• High-voltage heating systems
• Customized thermal equipment

Series Connection vs Parallel Connection: Key Differences

How to Choose the Right Wiring Method for Industrial Heating Elements?

Selecting the correct connection method depends on several important factors.

1. Power Supply Voltage

Before designing the heating system, engineers should confirm the available voltage:

• 110V
• 220V
• 230V
• 380V
• 400V
• 480V

The voltage level directly determines the suitable wiring configuration.

2. Required Heating Capacity

For applications requiring:

• High heating power
• Fast temperature rise
• Large heat transfer capacity

parallel connection is usually preferred.

3. Equipment Reliability Requirements

For continuous industrial applications, reliability is a key consideration.

Industries such as:

• Oil & gas
• Petrochemical
• Pharmaceutical
• Food processing
• Manufacturing

usually prefer parallel-connected heating systems because of their stable operation and easier maintenance.

Sinton Provides Customized Electric Heating Solutions

As a professional industrial electric heating manufacturer, Sinton provides customized heating elements and wiring solutions according to different customer requirements.

Our products include:

• Immersion Heaters
• Flange Heaters
• Screw Plug Heaters
• Air Duct Heaters
• Pipeline Heaters
• Cartridge Heaters
• Custom Tubular Heating Elements

According to customer requirements, including:

• Voltage
• Power rating
• Installation method
• Heating medium
• Working environment
• Control system

Sinton's engineering team provides optimized heating solutions for various industrial applications.

Conclusion

Both parallel connection and series connection are commonly used wiring methods for industrial electric heating elements.

In most industrial heating applications, parallel connection is the preferred solution because it provides higher power output, better reliability, and more flexible control.

Series connection is mainly used for special applications where voltage matching, electrical load distribution, or customized system design is required.

Choosing the correct wiring method can significantly improve heating efficiency, extend heater service life, and ensure safer industrial operations.
