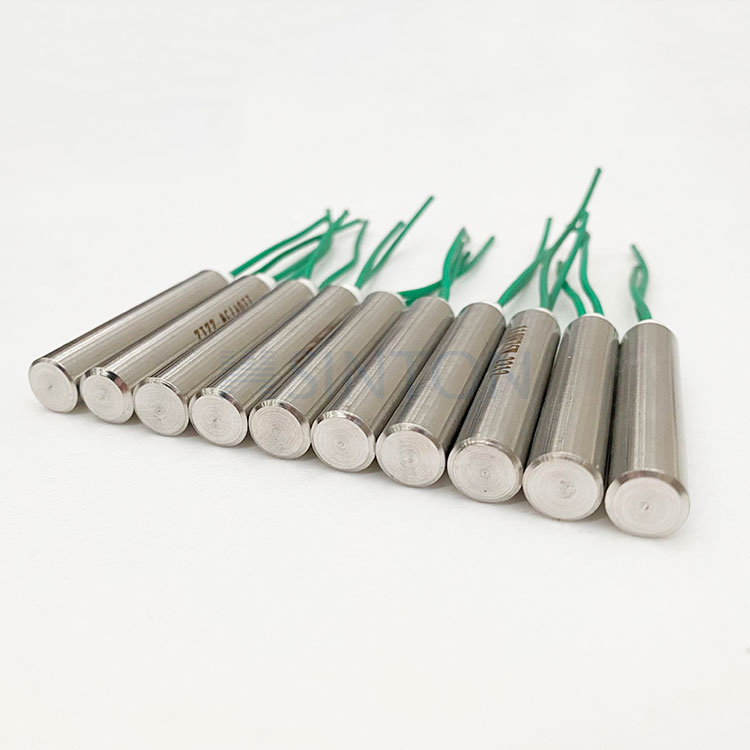

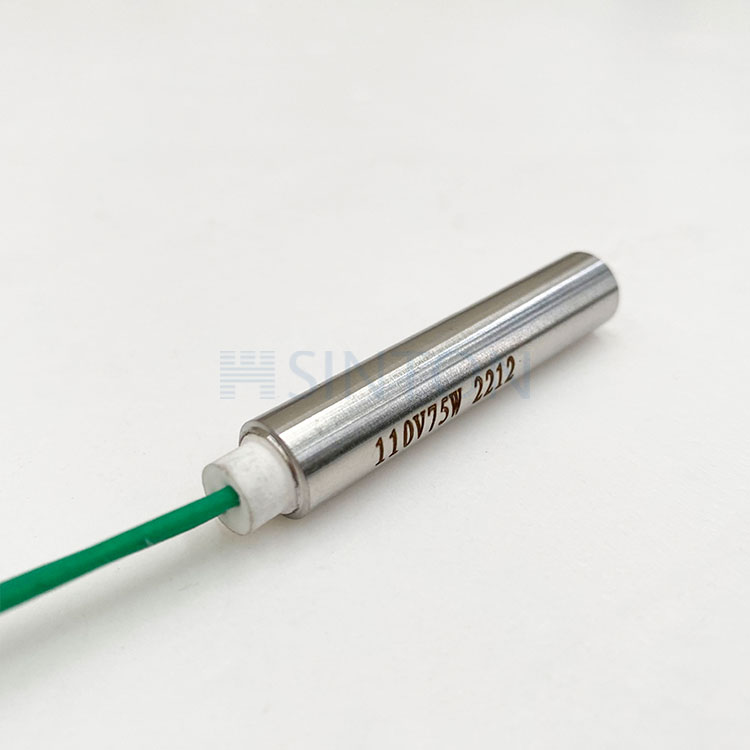

12-240v Multipurpose Cartridge Heaters

At Sinton Group, we specialize in manufacturing high-quality Cartridge Heaters designed for precise and efficient heating in industrial applications. Cartridge heaters are compact tubular heating elements widely used in molds, dies, platens, packaging machinery, medical equipment, and various industrial heating systems requiring localized high-temperature heating.

With fast heat transfer, high watt density, excellent durability, and customizable configurations, Sinton cartridge heaters provide reliable thermal performance for demanding industrial environments.

What Is a Cartridge Heater?

A Cartridge Heater is a cylindrical electric heating element inserted into drilled holes for conductive heating. It is commonly manufactured using high-grade resistance wire, magnesium oxide insulation, and stainless steel sheath materials to ensure efficient heat transfer and long service life.

Cartridge heaters are ideal for applications requiring:

Precise temperature control
Uniform heat distribution
Compact installation space
Rapid heating response
High operating temperatures

Product Advantages

Fast Heating Efficiency

Sinton cartridge heaters feature high watt density construction, enabling rapid heat-up times and improved thermal conductivity for industrial production efficiency.

Excellent Heat Transfer

The compact structure ensures close contact with the heated object, delivering stable and uniform heating performance.

High Temperature Resistance

Designed to withstand demanding industrial conditions, our cartridge heaters can operate continuously under high temperatures.

Long Service Life

Using premium resistance wire and high-purity magnesium oxide insulation, Sinton heaters offer excellent electrical insulation and mechanical durability.

Customizable Design

We provide customized voltage, wattage, diameter, length, lead wire configuration, mounting options, and sheath materials according to customer requirements.

Energy Efficient Operation

Efficient thermal conversion reduces energy loss and improves overall system performance.

Product Features

Stainless steel sheath construction
High watt density design
Compact cylindrical structure
Uniform temperature distribution
Corrosion-resistant materials
Optional built-in thermocouple
Flexible lead wire options
Straight or right-angle lead exits
Single-ended electrical connection
Easy installation and replacement

Product Specifications

Parameter	Specification
Product Name	Cartridge Heater
Voltage Range	12V – 480V
Power Range	50W – 5000W
Diameter Range	3mm – 30mm
Length Range	20mm – 3000mm
Sheath Material	Stainless Steel 304 / 316 / Incoloy
Heating Wire	NiCr Resistance Wire
Insulation Material	High Purity MgO
Max Operating Temperature	Up to 800°C
Lead Wire Type	Fiberglass / PTFE / Metal Braided
Thermocouple Option	K Type / J Type

Product Applications

Sinton cartridge heaters are widely used across various industries and heating systems.

Industrial Machinery

Used in packaging equipment, sealing machines, cutting systems, and automation equipment.

Mold Heating

Suitable for plastic injection molds, dies, hot runner systems, and metal molds.

Medical Equipment

Applied in laboratory devices, sterilization systems, and medical heating instruments.

3D Printing Equipment

Provides stable and accurate heating for industrial 3D printing systems.

Food Processing Equipment

Used in food packaging machinery and heating assemblies.

Semiconductor Industry

Ideal for precision heating applications requiring accurate temperature control.

Aerospace & Automotive

Widely used in automotive molds, sensor systems, and aerospace equipment.

Why Choose Sinton Cartridge Heaters?

As a professional industrial heating manufacturer, Sinton Group focuses on providing reliable electric heating solutions for global customers. Our cartridge heaters are manufactured under strict quality standards to ensure stable performance, energy efficiency, and long-term durability.

We support:

OEM & ODM customization
Fast production and delivery
Technical heating solutions
Global export service
Professional engineering support

Whether you need standard cartridge heaters or fully customized industrial heating elements, Sinton can provide efficient and dependable solutions tailored to your application requirements.

SIZE	CUSTOMIZED
MATERIAL	SS304/SS316
VOLTAGE	12-240v
POWER	CUSTOMIZED
SURFACE LOADING	2-30W/CM2
THREAD STANARD	GB/BSP/NPT
LEAD WIRE	CUSTOMIZED
APPLICATION	WATER, AIR, OIL, MOULD etc.

Model	Voltage（V）	Power（W）	High temperature wire length（mm）
φ6X30	220	60	250
φ6X40	220	80	250
φ6X50	220	100	250
φ6X60	220	100	250
φ6X70	220	120	250
φ6X80	220	120	250
φ6X100	220	150	250
φ6X120	220	200	250
φ6X150	220	250	250
φ6X200	220	250	250
φ6X250	220	300	250
φ6X300	220	350	250
φ8X30	220	80	250
φ8X40	220	100	250
φ8X50	220	100	250
φ8X60	220	100	250
φ8X70	220	120	250
φ8X80	220	120	250
φ8X100	220	150	250
φ8X120	220	200	250
φ8X150	220	250	250
φ8X200	220	300	250
φ8X250	220	400	250
φ8X300	220	450	250
φ10X30	220	80	250
φ10X40	220	100	250
φ10X50	220	100	250
φ10X60	220	120	250
φ10X70	220	150	250
φ10X80	220	150	250
φ10X90	220	200	250
φ10X100	220	200	250
φ10X120	220	250	250
φ10X150	220	300	250
φ10X180	220	350	250
φ10X200	220	400	250
φ10X220	220	450	250
φ10X250	220	500	250
φ10X280	220	550	250
φ10X300	220	600	250
φ10X320	220	650	250
φ10X350	220	700	250
φ10X400	220	800	250
φ10X450	220	800	250
φ10X500	220	1000	250
φ10X550	220	1000	250
φ10X600	220	1000	250
φ12X30	220	80	250
φ12X35	220	100	250
φ12X40	220	100	250
φ12X50	220	120	250
φ12X60	220	150	250
φ12X70	220	150	250
φ12X80	220	150	250
φ12X90	220	200	250
φ12X100	220	200	250
φ12X120	220	250	250
φ12X150	220	300	250
φ12X180	220	350	250
φ12X200	220	400	250
φ12X220	220	450	250
φ12X250	220	500	250
φ12X280	220	550	250
φ12X300	220	600	250
φ12X320	220	650	250
φ12X350	220	700	250
φ12X400	220	800	250
φ12X450	220	900	250
φ12X500	220	1000	250
φ12X550	220	1000	250
φ12X600	220	1200	250
φ14X50	220	150	250
φ14X60	220	150	250
φ14X70	220	150	250
φ14X80	220	200	250
φ14X100	220	250	250
φ14X120	220	250	250
φ14X150	220	350	250
φ14X200	220	400	250
φ14X250	220	500	250
φ14X300	220	600	250
φ14X350	220	700	250
φ14X400	220	800	250
φ14X450	220	900	250
φ14X500	220	1000	250
φ16X50	220	150	250
φ16X60	220	150	250
φ16X70	220	200	250
φ16X80	220	200	250
φ16X100	220	250	250
φ16X120	220	300	250
φ16X140	220	350	250
φ16X150	220	350	250
φ16X160	220	350	250
φ16X180	220	400	250
φ16X200	220	450	250
φ16X220	220	500	250
φ16X250	220	600	250
φ16X275	220	600	250
φ16X300	220	700	250
φ16X320	220	700	250
φ16X350	220	800	250
φ16X380	220	900	250
φ16X400	220	1000	250
φ16X420	220	1000	250
φ16X450	220	1100	250
φ16X480	220	1100	250
φ16X500	220	1200	250
φ16X550	220	1300	250
φ16X600	220	1500	250
φ16X650	220	1500	250
φ16X700	220	1600	250
φ16X750	220	1800	250
φ16X800	220	1800	250
φ18X100	220	250	250
φ18X120	220	300	250
φ18X150	220	350	250
φ18X200	220	450	250
φ18X250	220	600	250
φ18X300	220	800	250
φ20X70	220	200	250
φ20X80	220	200	250
φ20X100	220	250	250
φ20X120	220	300	250
φ20X150	220	350	250
φ20X180	220	400	250
φ20X200	220	500	250
φ20X220	220	500	250
φ20X250	220	600	250
φ20X280	220	700	250
φ20X300	220	800	250
φ20X320	220	800	250
φ20X350	220	1000	250
φ20X375	220	1000	250
φ20X400	220	1000	250
φ20X420	220	1100	250
φ20X450	220	1200	250
φ20X480	220	1400	250
φ20X500	220	1500	250
φ20X520	220	1500	250
φ20X550	220	1500	250
φ20X580	220	1500	250
φ20X600	220	1600	250
φ20X650	220	1600	250
φ20X700	220	1800	250
φ20X750	220	1800	250
φ20X800	220	2000	250
φ20X850	220	2000	250
φ20X900	220	2000	250
φ20X1000	220	2200	250
