Flexible Ceramic Heater Pad

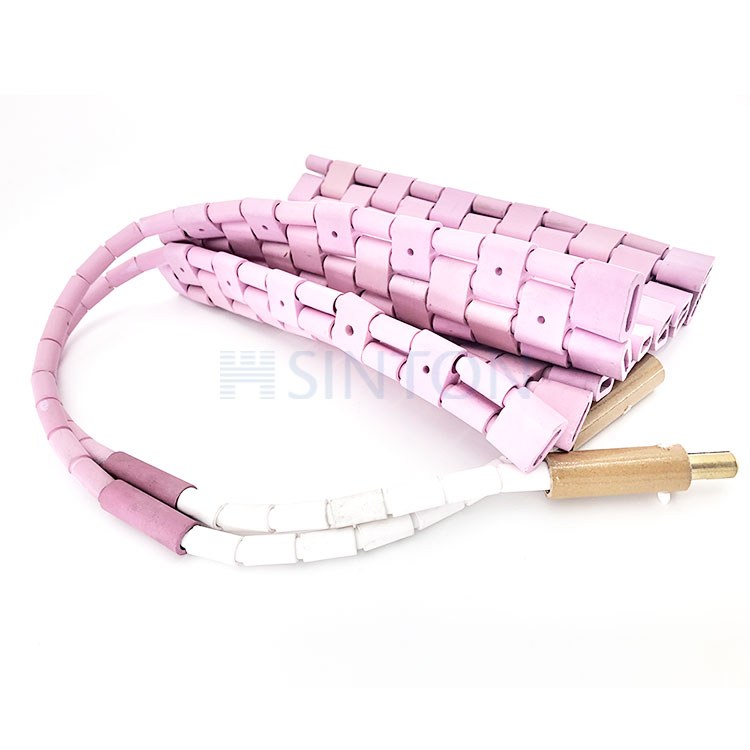

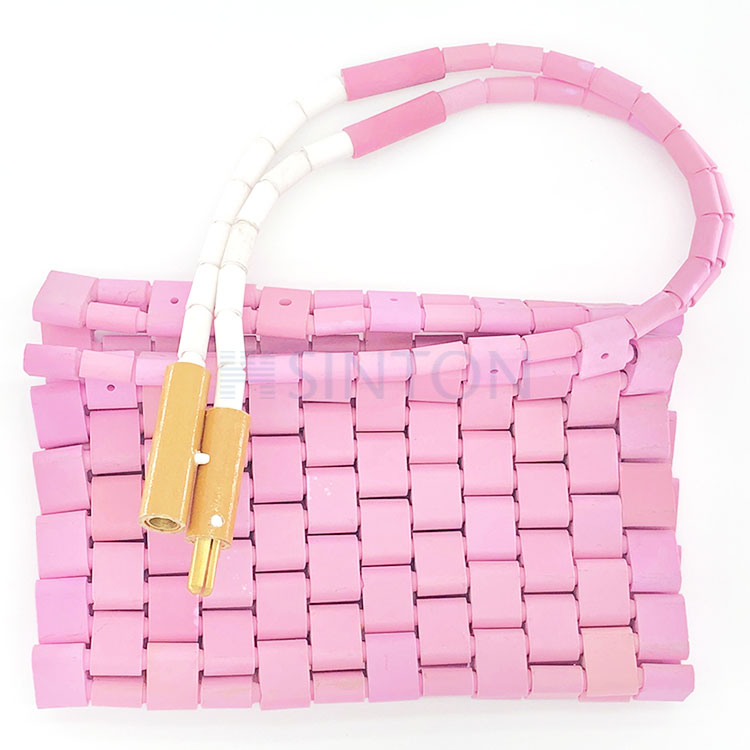

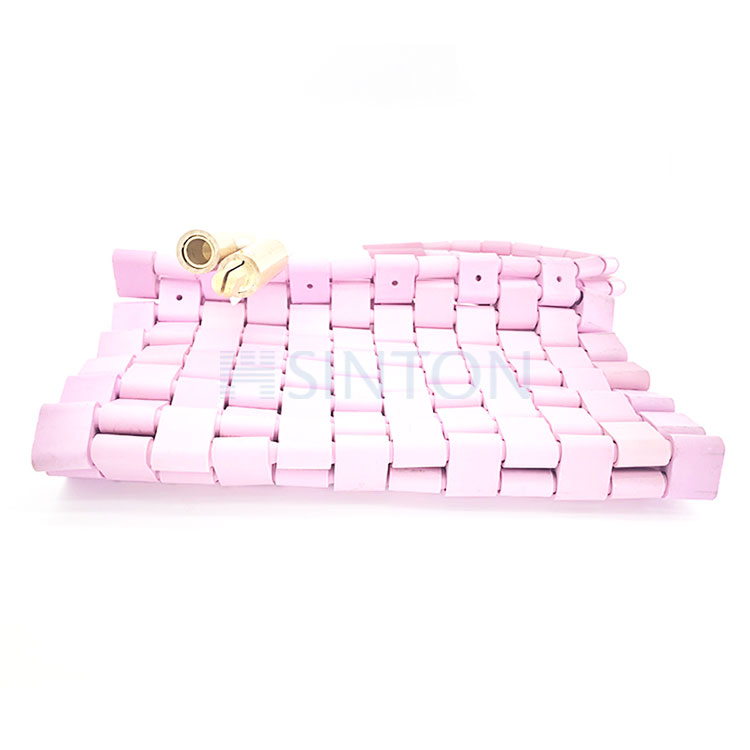

The Flexible Ceramic Pad (FCP) heater is a product that uses high-quality nickel-chromium alloy steel wire ropes covered with high-purity aluminum oxide ceramic insulating sheets. According to the shape and size of the workpiece, it can be designed as a crawler-type or rope-type heater. This type of heater can be easily spliced or bent to closely wrap around the workpiece, providing efficient and convenient heating. It has a wide range of applications, fast heating speed, high heat utilization rate, and is easy to operate. The maximum surface temperature can reach 1050°C.

FCP heaters are suitable for heating various metal components, such as the pre-welding heating of large towers, pressure vessels, bridges, and high-pressure pipelines. They can also be used for the auxiliary heating of indoor and outdoor pipelines and containers. The FCP heater is currently the most advanced and practical localized heating equipment.

Specifications of the Flexible Ceramic Heating Pad:
Insulating Material: Alumina ceramic (95%)
Heating Conductor: Ni-Cr wire (Cr20Ni80)
Temperature: Up to 1000℃
Power: 2.7KW / 3.6 kW
Voltage: 60V / 80V
Amperage: 45
Features of the Ceramic Heating Pad:
High temperature resistance.
Excellent insulating performance.
Conducive to effective heat transfer.
Provide significant energy savings.
The flexible ceramic heating pad is optional.

Industry applications:
Aerospace Heat Treating
Mining equipment repair
Construction industry
Fabrication Industry
Ship building Industry
Oil & gas -equipment repair
Wind turbine heat treatment
Chemical industry
Research Labs

Product Parameter

Flexible ceramic pad heater-60V heaters

Type Width(mm) Length(mm) Rating(kW) Current(amp) Voltage (V)
CP3-60V 76 736 2.7kW 45amp 60V
CP4-60V 102 533 2.7kW 45amp 60V
CP6-60V 152 381 2.7kW 45amp 60V
CP8-60V 203 279 2.7kW 45amp 60V
CP10-60V 254 229 2.7kW 45amp 60V
CP12-60V 305 178 2.7kW 45amp 60V
CP15-60V 381 152 2.7kW 45amp 60V
CP18-60V 457 127 2.7kW 45amp 60V
CP21-60V 533 102 2.7kW 45amp 60V
CP16-60V 660 89 2.7kW 45amp 60V
CP50-60V 1270 44 2.7kW 45amp 60V



Flexible ceramic pad heater-80V heaters

Type Width(mm) Length(mm) Rating(kW) Current(amp) Voltage (V)
CP3-60V 76 736 2.7KW 45amp 60V
CP4-60V 102 533 2.7KW 45amp 60V
CP6-60V 152 381 2.7KW 45amp 60V
CP8-60V 203 279 2.7KW 45amp 60V
CP10-60V 254 229 2.7KW 45amp 60V
CP12-60V 305 178 2.7KW 45amp 60V
CP15-60V 381 152 2.7KW 45amp 60V
CP18-60V 457 127 2.7KW 45amp 60V
CP21-60V 533 102 2.7KW 45amp 60V
CP26-60V 660 89 2.7KW 45amp 60V
CP50-60V 1270 44 2.7KW 45amp 60V
