Heating Equipment
Fin Strip Heater Element Custom is a finned electric heating strip specially designed for high power density air/gas heating. It features imported nickel-chromium alloy heating wire and 304/316L stainless steel fins. The surface has undergone high-temperature passivation for rust prevention!
Core structure: Built-in Ni80Cr20 heating wire, external rolled-edge high-density heat dissipation fins, heat exchange efficiency increases by 300% under forced convection!
Black technology feature: Scientifically optimized fin spacing reduces wind resistance, and it can reach 650℃ in just 3 minutes!
Custom production: Length, power, voltage, installation method, and temperature control are all 100% customized according to the design, supporting OEM branding/OEM development.
Why choose it? Durable, safe, energy-efficient, with a 10-year warranty, helping you reduce maintenance costs by over 40%!
Specifications and Parameters
|
Parameters |
Standard specification |
Customization scope |
|
Voltage |
220V / 380V |
12V-600V |
|
Power |
2KW |
500W-15KW |
|
Length |
600mm |
200-3000mm |
|
Width |
50mm |
30-100mm |
|
Fin height Material |
20mm |
10-40mm |
|
Maximum temperature |
304 stainless steel + Ni80Cr20 heating wire |
316L/Incoloy options available |
|
Thermal efficiency Life expectancy |
650℃ |
Maximum 800℃ (Incoloy) |
|
Installation method Protection level |
≥98% |
- |
|
Parameters |
≥15,000 hours (8-10 years) |
- |
|
Voltage |
Fixed holes/Clamps/Taps |
Customized entirely |
|
Power |
IP54 (optional IP65 explosion-proof) |
- |
Performance Advantages
1. Exceptional heat dissipation: With a high-density fin design, the heat exchange area is increased by 3 times compared to the light tube heater, and the efficiency is enhanced by 300% under forced air cooling!
2. Extremely fast heating: It reaches 400°C in 60 seconds, and its response speed is 4 times that of the ceramic heater!
3. Ultra energy-saving: It saves 35-45% electricity compared to traditional tube heaters, and can save tens of thousands of yuan in annual electricity bills!
4. Corrosion-resistant and long-lasting: 304 stainless steel with passivation treatment, resistant to oxidation, acid and alkali, and does not deteriorate for 15 years!
5. Safe and worry-free: Dual insulation + over-temperature fuse protection, and supports explosion-proof Ex certification (optional).
6. Silent operation: No electromagnetic interference, suitable for precision equipment heating.
7. Flexible installation: Multi-hole design, supports parallel/series connection, and is compatible with various air ducts/ovens.
Application Scenarios
Industrial drying: ovens, spray lines, textile finishing machines
Air duct heating: central air conditioning, hot air curtains, industrial heat blowers
Food processing: ovens, frying lines, steam generation assistance
Plastic molding: injection molding machine barrels, extrusion machine air-cooled sections
Laboratory equipment: temperature control cabinets, environmental simulation chambers
New energy: battery drying, photovoltaic module laminating machines
details

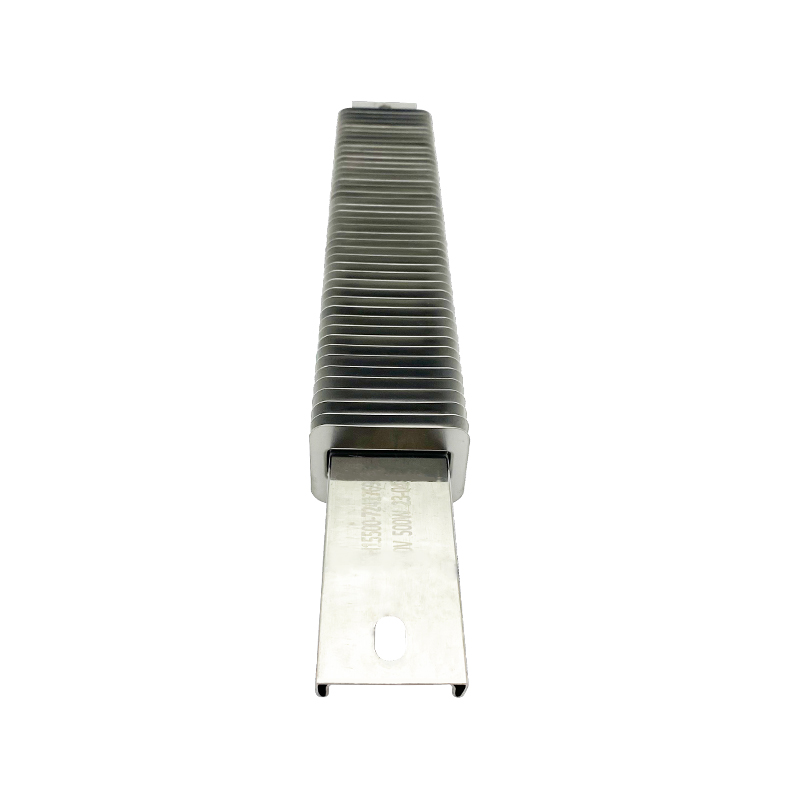

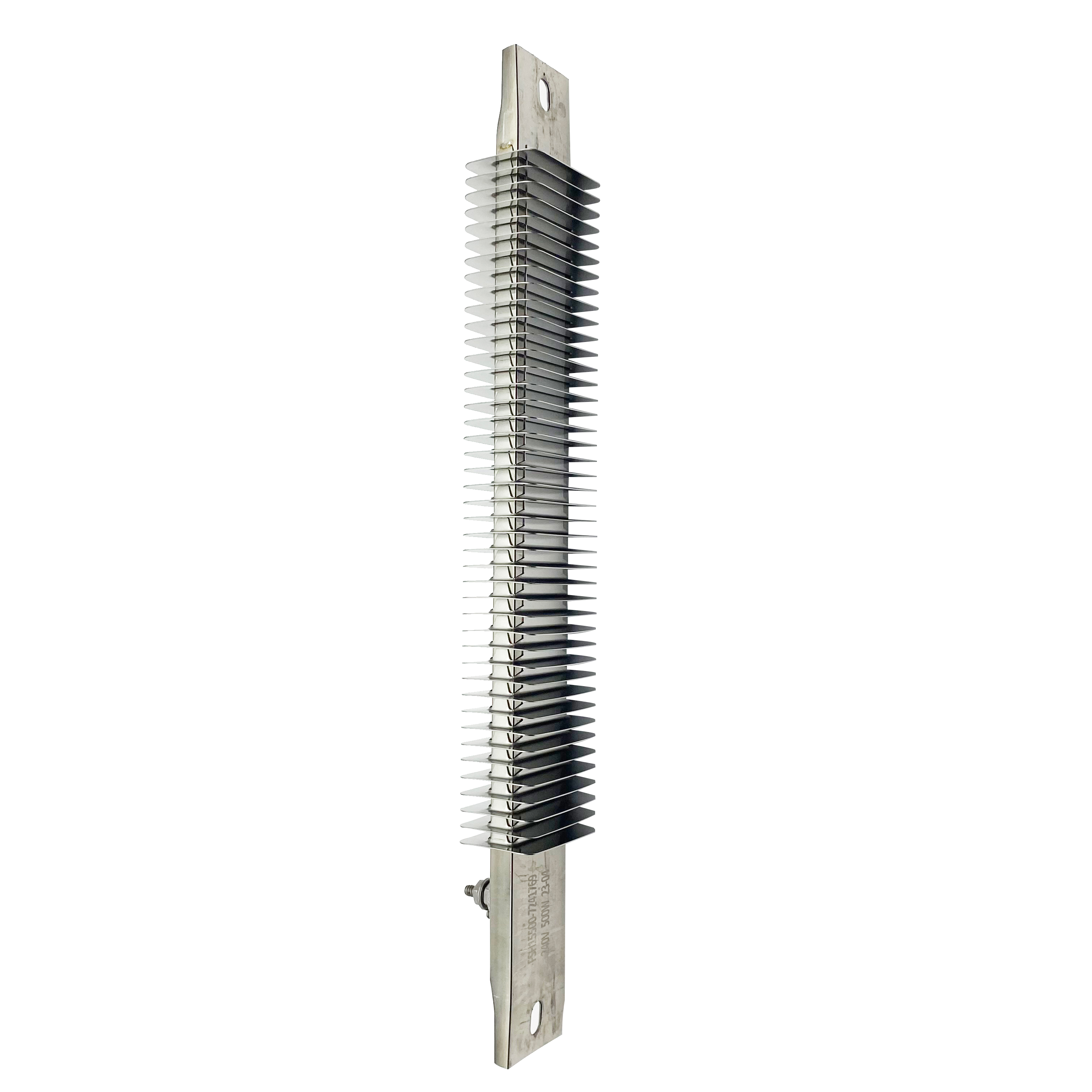

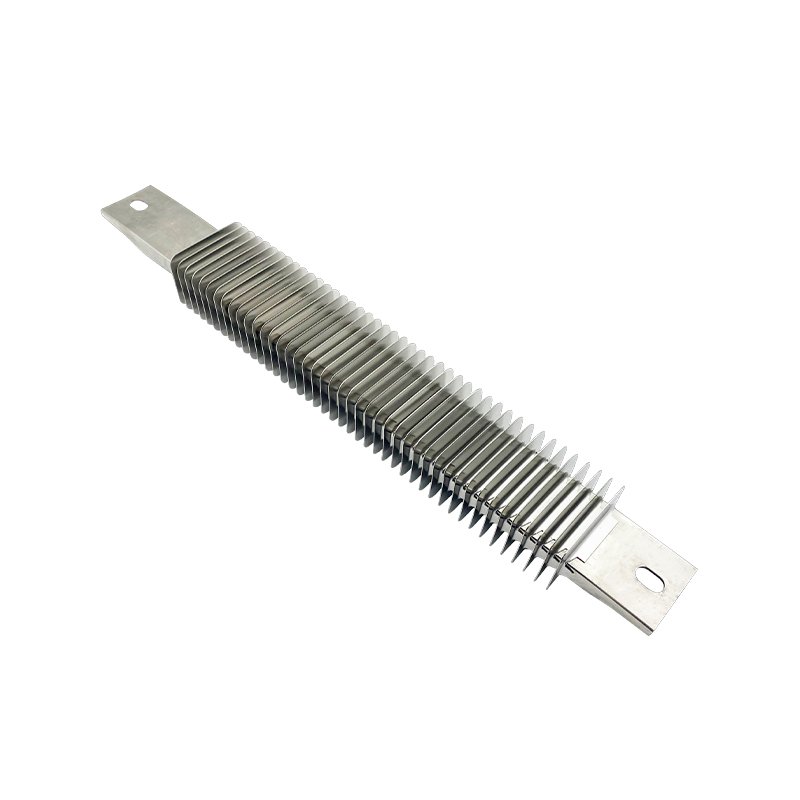

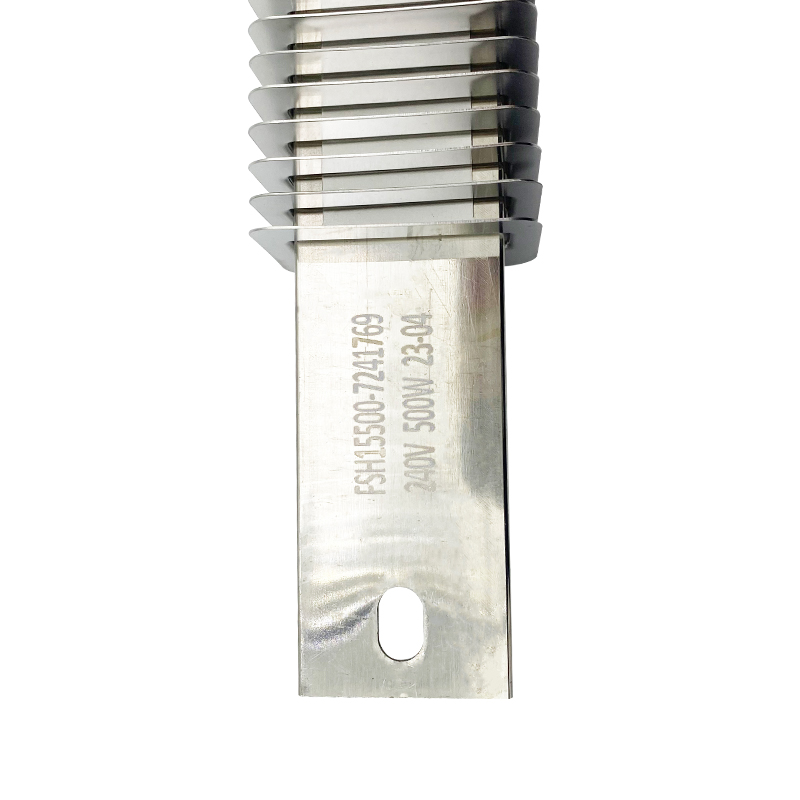

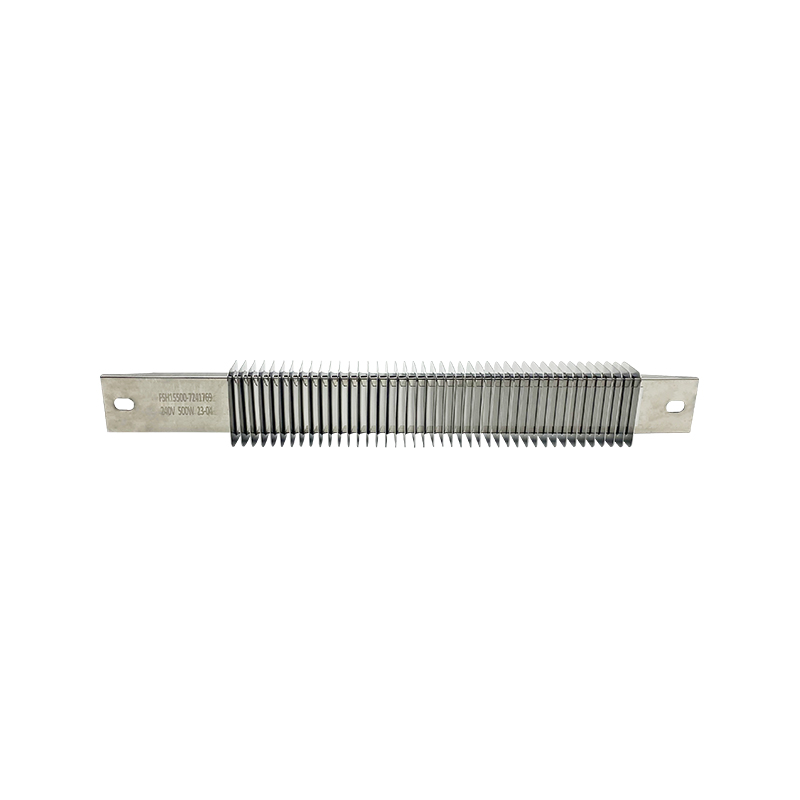

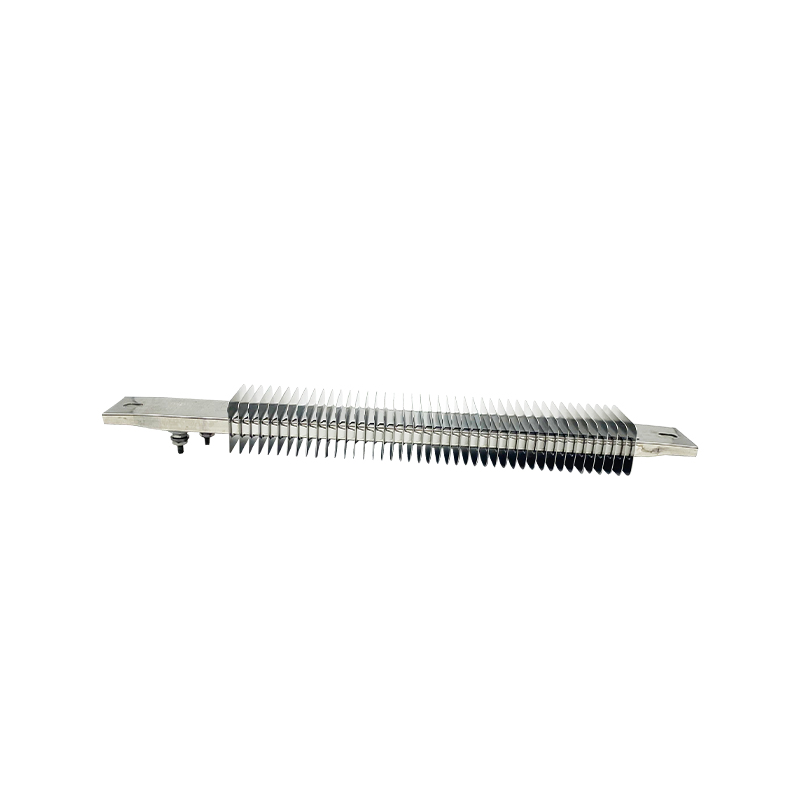

Construction of Finned Air Strip Heater:
1. Seamless stainless steel sheath and fins
2. Post terminals
3. Ceramic element support
4. Element wire situated in close proximity to outside surface for maximum heat transfer and minimum internal temperature while preserving good dielectric qualities.
Features of Finned Air Strip Heater:
1. Watt density: Max 35 w/in²
2. Standard Strip width: 40mm
3. Standard Fin dimension: 65X35mm
4. Maximum Allowable Sheath Temperature: Rust resistant Mild Steel 500℃ Stainless Steel 800℃
Applications of Finned Air Strip Heater:
2. Autoclaves
3. Food warming
4. Packaging machinery
5. Dies and mold heating
6. Tank and platen heating
7. Subway and rail car heating


Product Parameter
|
Product name |
Finned air strip heater |
|
Sheath material |
SUS304 Stainless Steel |
|
Insulation material |
Ceramic/Mica |
|
Voltages available |
110v, 220v, 230v, 240v, 380V, 480V, according to your requirement |
|
Wattage |
Available in a wide range of wattages |
|
Standard strip width |
38mm |
|
Standard strip thickness |
11mm |
|
Standard fin dimension |
51mmx35mm |
|
Mounting tabs |
Available mounting tabs with holes, slots or without tabs |
|
Terminations Type |
Off set terminations, Parallel terminals, terminal at each end or lead wires available |
Shipment
provides customers with quality and safe transportation.
