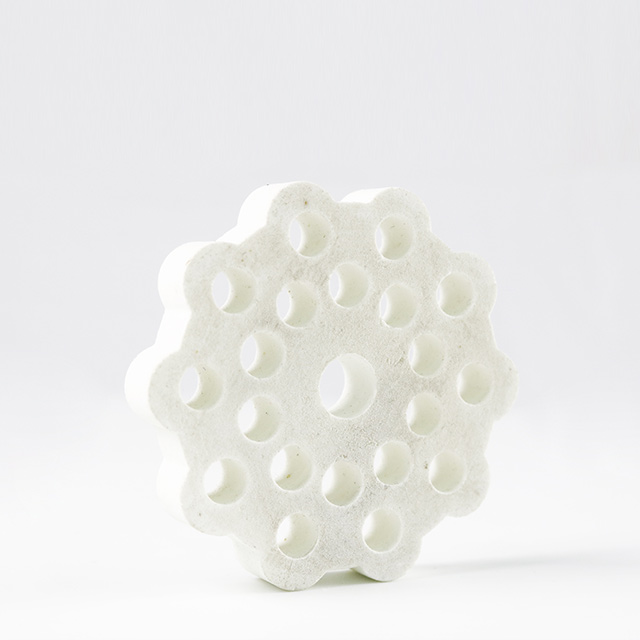

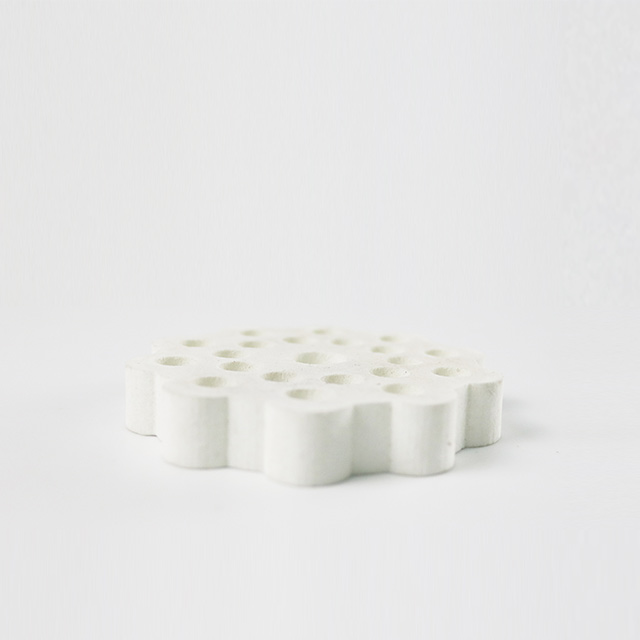

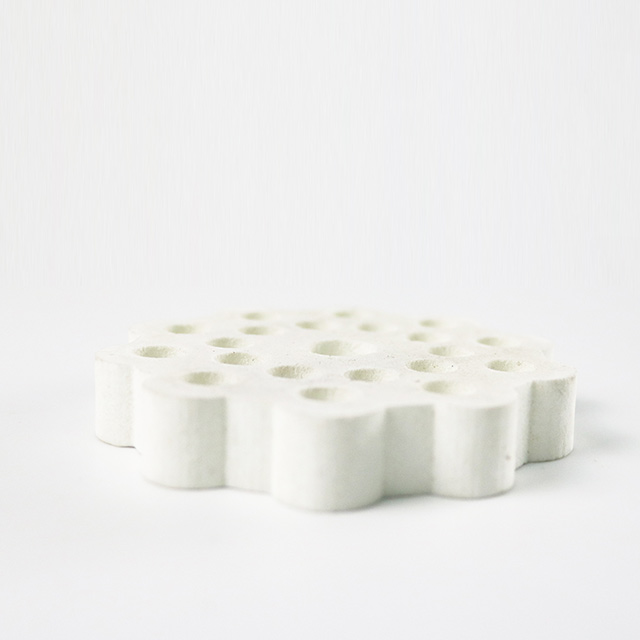

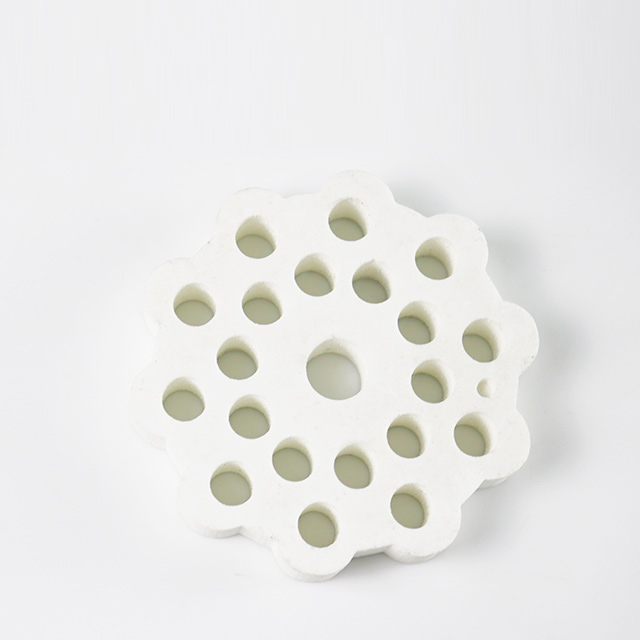

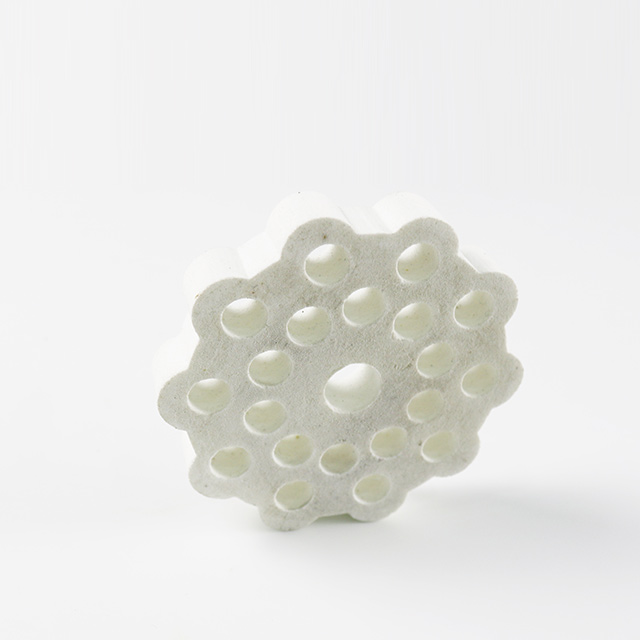

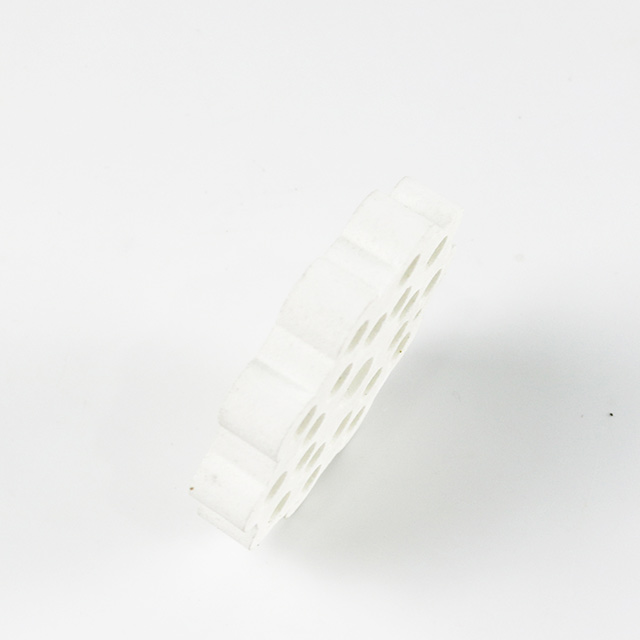

Ceramic Motor Terminal Block

Ceramic Motor Terminal Blocks are essential components used in electric motors and high-temperature electrical systems for connecting and protecting electrical wires. Made from ceramic materials, these terminal blocks are known for their high insulation properties, thermal stability, and resistance to wear and corrosion, making them ideal for applications that involve high currents, high voltages, or exposure to extreme temperatures.

What is a Ceramic Motor Terminal Block?

A Ceramic Motor Terminal Block is a connector component designed to safely and efficiently join the electrical wiring of a motor to other electrical circuits. It is typically constructed from high-temperature-resistant ceramics, such as alumina or steatite, which provide superior insulation compared to conventional materials like plastic or metal. The terminal block ensures secure connections between motor windings and external electrical circuits while withstanding the mechanical stresses and high temperatures often found in motorized applications.

Features:

Excellent Insulation Properties:

Ceramic motor terminal blocks offer superior electrical insulation compared to traditional materials, preventing electrical short circuits or leakage. This ensures that electrical energy is efficiently and safely directed to the motor without energy loss or overheating.

High-Temperature Resistance:

Ceramic materials, particularly alumina or steatite, can withstand high operating temperatures, often exceeding 1000°C (1832°F). This makes ceramic terminal blocks perfect for motors and systems exposed to high heat, such as industrial motors, HVAC systems, and furnaces.

Mechanical Strength and Durability:

Ceramic motor terminal blocks provide high mechanical strength and are resistant to wear, vibration, and thermal shock. This durability is crucial in motor applications where vibrations, mechanical stress, and extreme temperatures are common.

Corrosion Resistance:

The ceramic material is naturally resistant to corrosion, ensuring long-term performance even in environments exposed to moisture, chemicals, or other harsh conditions.

Non-Flammable:

Unlike plastic terminal blocks, ceramic blocks are non-flammable and do not contribute to the risk of electrical fires, making them a safer choice for high-power electrical systems in motors and machinery.

Compact and Reliable:

Ceramic motor terminal blocks are available in a range of sizes and designs to fit various motor configurations. They are designed for reliable, long-lasting connections, even in high-stress conditions.

Applications:

Electric Motors:

Ceramic terminal blocks are widely used in electric motors to connect the windings to external circuits. Their high heat resistance and insulating properties ensure that the motor operates safely, especially in high-current and high-temperature environments, such as industrial motors, pumps, and fans.

HVAC Systems:

In HVAC systems, where motors are used to drive fans, blowers, and compressors, ceramic motor terminal blocks are used to ensure safe, reliable electrical connections while withstanding the heat generated during operation.

Home Appliances:

Washing machines, dishwashers, and other household appliances that use electric motors benefit from ceramic motor terminal blocks, ensuring the motor connections are secure and heat-resistant over extended use.

Electric Vehicles (EVs):

In electric vehicles, ceramic motor terminal blocks provide high-performance, heat-resistant electrical connections for the motor and related systems. They help manage high currents and maintain insulation in the battery management system and motor control units.

Furnaces and Ovens:

For high-temperature ovens, kilns, and furnaces, ceramic motor terminal blocks help connect heating elements and ventilation fans. These systems often operate in temperatures well above the limits of typical plastic terminal blocks, making ceramic a more appropriate material.

Industrial Machinery:

Ceramic terminal blocks are used in various industrial machinery where high voltages, high currents, and high temperatures are common, such as plastic injection molding machines, automated production lines, and robotics.

Transformers and Power Supply Units:

Ceramic motor terminal blocks are also found in transformers and power supply systems where safe, high-power connections are needed to power electrical equipment.

Advantages:

· High-Temperature Tolerance: Ceramic motor terminal blocks can endure extremely high temperatures without degrading, making them ideal for applications where conventional plastic or metal connectors would fail.

· Superior Electrical Insulation: With excellent insulating properties, ceramic terminal blocks prevent electrical short circuits and help maintain the safety and efficiency of the motor system.

· Mechanical Robustness: Their high strength makes ceramic terminal blocks resistant to vibrations and shocks, increasing the reliability of electrical connections in dynamic, industrial environments.

· Corrosion-Resistant: Unlike metal or plastic, ceramics do not corrode, ensuring that the terminal block remains functional even in environments with high humidity or exposure to chemicals.

· Non-Flammable: Ceramic blocks do not catch fire and are resistant to heat-induced failures, offering an extra layer of safety compared to plastic alternatives.

Long-Term Durability: Ceramic motor terminal blocks offer long service life and consistent performance over time, even in extreme operating conditions, reducing the need for frequent replacements.
